TP-E60
| Availability: | |
|---|---|
| Quantity: | |
This machine is designed for crimping a wide range of terminals and offers the flexibility to customize crimping molds based on specific terminal requirements. A variety of crimping molds can be provided to meet your needs.
Key Features:
1. Electric-Powered Operation: Powered mainly by electricity, the machine is easy to move and highly portable.
2. Interchangeable Crimping Dies: Compatible with various crimping dies, allowing seamless switching for different terminal types.
3. Footswitch Control: Hands-free operation via a convenient footswitch, enhancing efficiency and ease of use.
4. Compact and Lightweight: Designed to be space-efficient and easy to handle, making it ideal for versatile work environments.
Model | TP-E60 |
Crimping force | 2.5 Ton |
Application | Crimping different terminals |
Crimping dies | non-insulated terminals: ≤16mm² ; Insulated Terminal: ≤6mm² ; tubuler terminal: ≤35mm². |
Air Pressure | 220V / 110V |
Dimension | 14X22X32 cm |
Weight | 10kgs |
Application
Wire stripping and ring terminal crimping

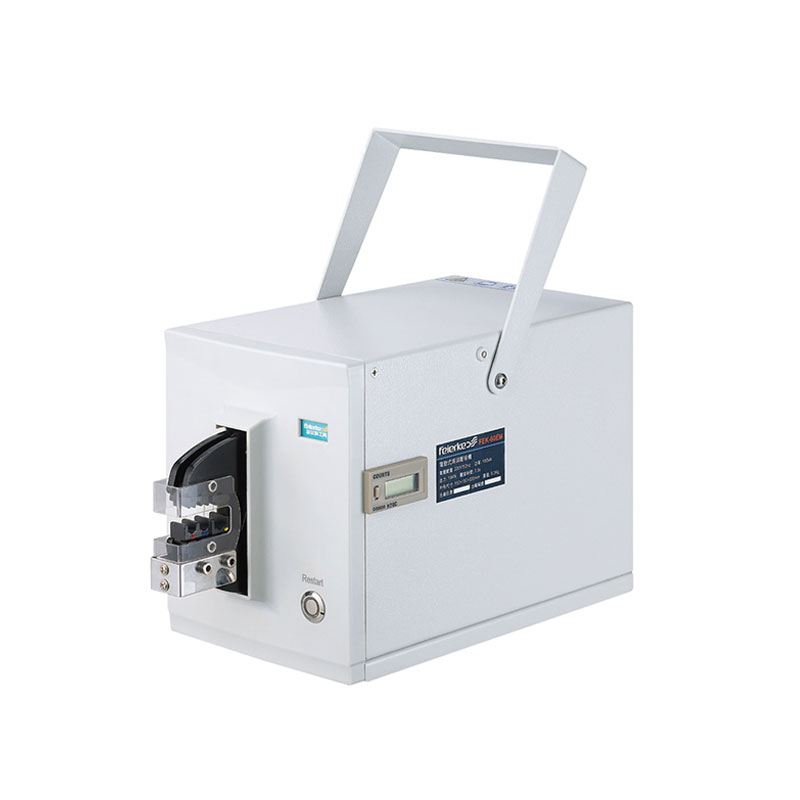

The TP-E60 is an electrical-powered small wire terminal crimping tool delivering 2.5 tons of crimping force. It is used for crimping various terminal types including non-insulated, insulated, and tubular terminals.
It supports non-insulated terminals up to 16mm², insulated terminals up to 6mm², and tubular terminals up to 35mm². Different terminal types are accommodated by switching crimping dies.
Key features include electric-powered operation for portability, interchangeable crimping dies for different terminal types, footswitch control for hands-free operation, and a compact, lightweight design.
The TP-E60 operates on 220V/110V power and has dimensions of 14*22*32cm, weighing 10kg. Its compact size makes it suitable for portable use and small workspaces.
The machine is compatible with various crimping dies, allowing seamless switching for different terminal types. Custom crimping molds can also be provided based on specific terminal requirements.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
