TU-S20-6
| Availability: | |
|---|---|
| Quantity: | |

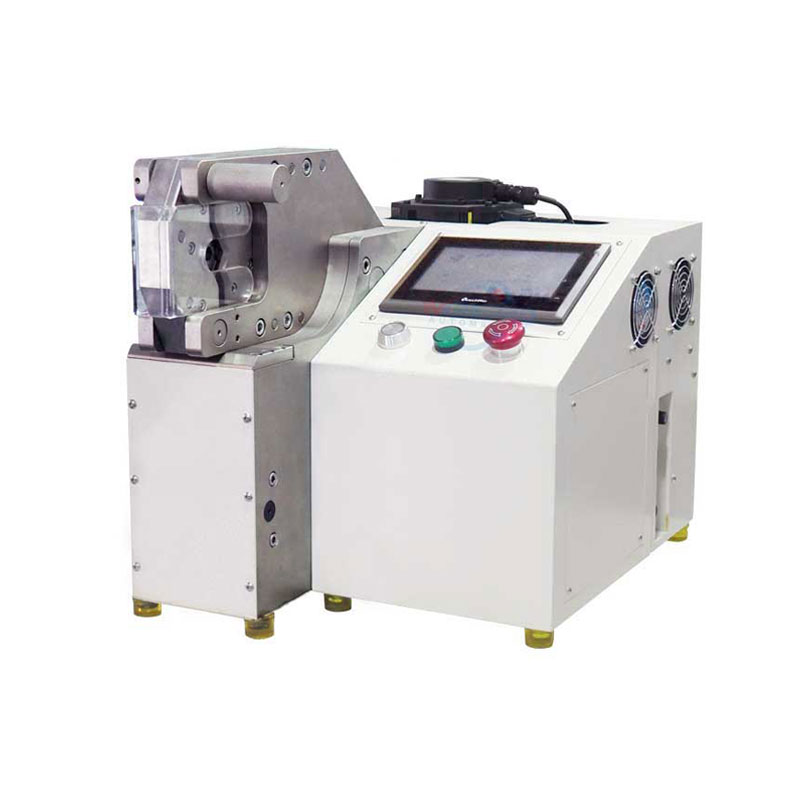

The TU-S20-6 is a specialized crimping machine designed for hexagonal crimping of large square tube terminals. Featuring an innovative universal applicator system, it handles closed tube-shaped terminals from 10-120mm² without requiring applicator changes. The machine offers easy crimping stroke adjustment to accommodate different terminal sizes.
Key Features:
1. Advanced Motion Control: Industrial-grade control chip with high-precision servo drive ensures stable, high-speed operation
2. Smart Control System: PLC-controlled operation with intuitive touchscreen interface
3. Universal Applicator: Maintains high accuracy across terminal sizes without tool changes
4. Adjustable Positioning: Adapts to various cable dimensions for precise crimp placement
5. Full-Open Crimping Design: Accommodates middle connections and large terminals with complete joint opening capability
6. Space-Efficient Design: Compact footprint with quiet operation for workshop environments
Ideal for electrical manufacturing applications, the TU-S20-6 combines precision crimping performance with exceptional operational flexibility.
The TU-S20-6 is a specialized crimping machine designed for hexagonal crimping of large square tube terminals. Featuring an innovative universal applicator system, it handles closed tube-shaped terminals from 10-120mm² without requiring applicator changes. The machine offers easy crimping stroke adjustment to accommodate different terminal sizes.
Key Features:
1. Advanced Motion Control: Industrial-grade control chip with high-precision servo drive ensures stable, high-speed operation
2. Smart Control System: PLC-controlled operation with intuitive touchscreen interface
3. Universal Applicator: Maintains high accuracy across terminal sizes without tool changes
4. Adjustable Positioning: Adapts to various cable dimensions for precise crimp placement
5. Full-Open Crimping Design: Accommodates middle connections and large terminals with complete joint opening capability
6. Space-Efficient Design: Compact footprint with quiet operation for workshop environments
Ideal for electrical manufacturing applications, the TU-S20-6 combines precision crimping performance with exceptional operational flexibility.
Model | TU-S20-6 | TU-S08-6 |
Cable range | 6mm²-120mm² | 2.5mm² – 35mm² |
Crimping Force | 20T | 8T |
Diameter | 32mm | 24mm |
Crimping Width | 12.5mm (can custom) | 8mm (can custom) |
Power Source | 220V 50-60Hz | 220V 50-60Hz |
Power | 2300W | 1500W |
Machine Size | 50*45*48cm | 64*35*45cm |
Machine Weight | 120kgs | 80kgs |
Model | TU-S20-6 | TU-S08-6 |
Cable range | 6mm²-120mm² | 2.5mm² – 35mm² |
Crimping Force | 20T | 8T |
Diameter | 32mm | 24mm |
Crimping Width | 12.5mm (can custom) | 8mm (can custom) |
Power Source | 220V 50-60Hz | 220V 50-60Hz |
Power | 2300W | 1500W |
Machine Size | 50*45*48cm | 64*35*45cm |
Machine Weight | 120kgs | 80kgs |
Application
Cable lug terminal crimping samples
Application
Cable lug terminal crimping samples
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
