Description

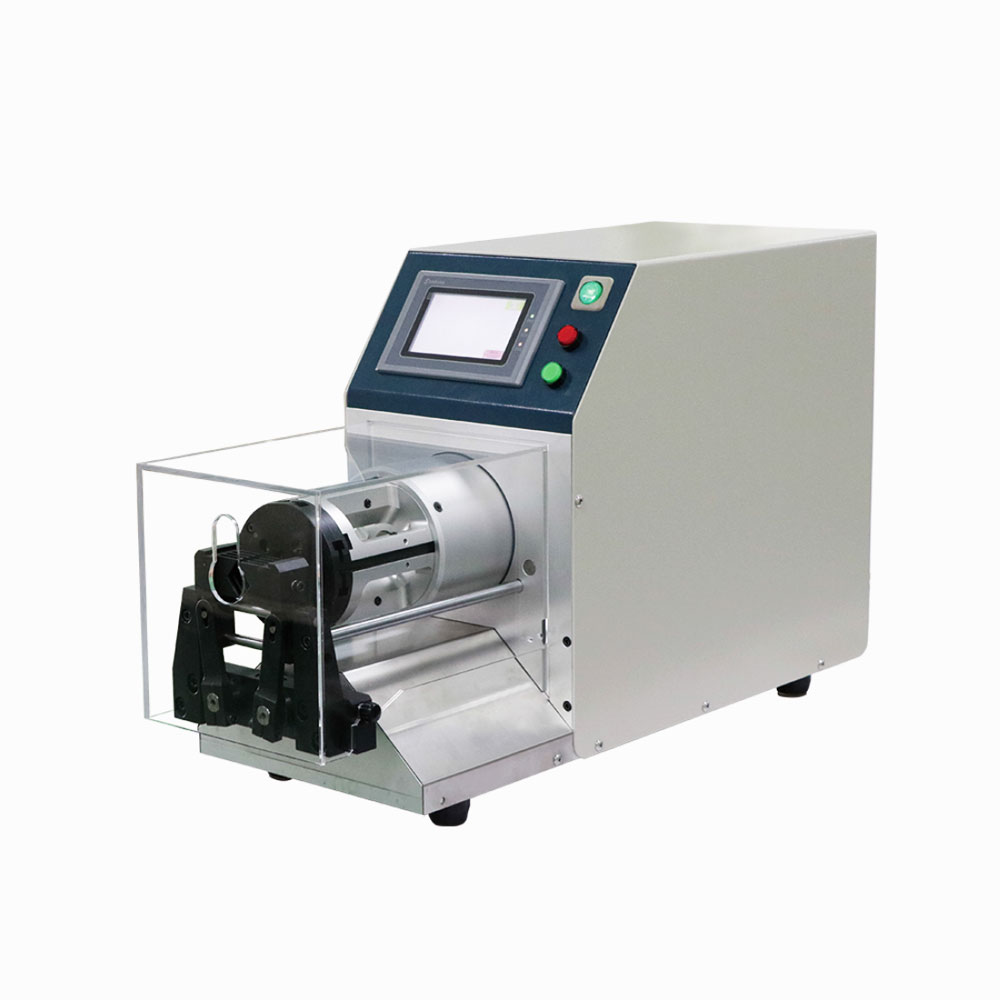

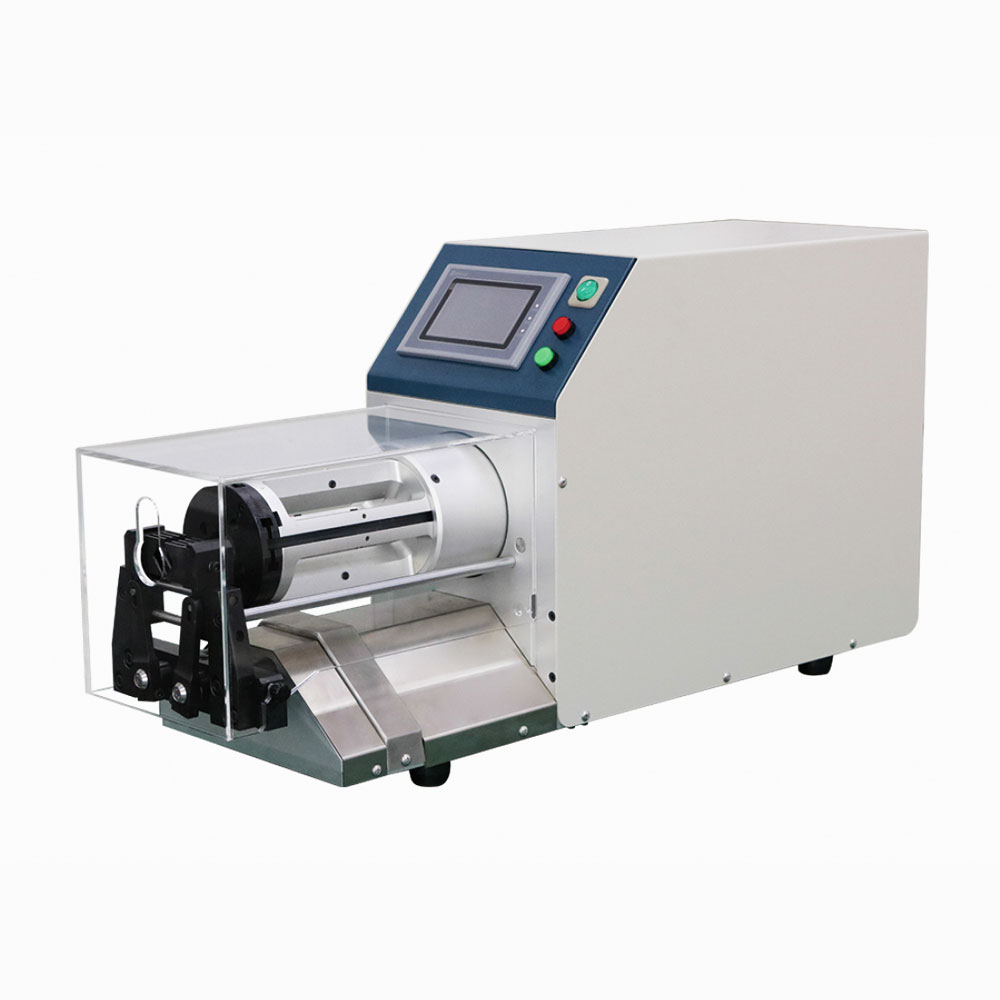

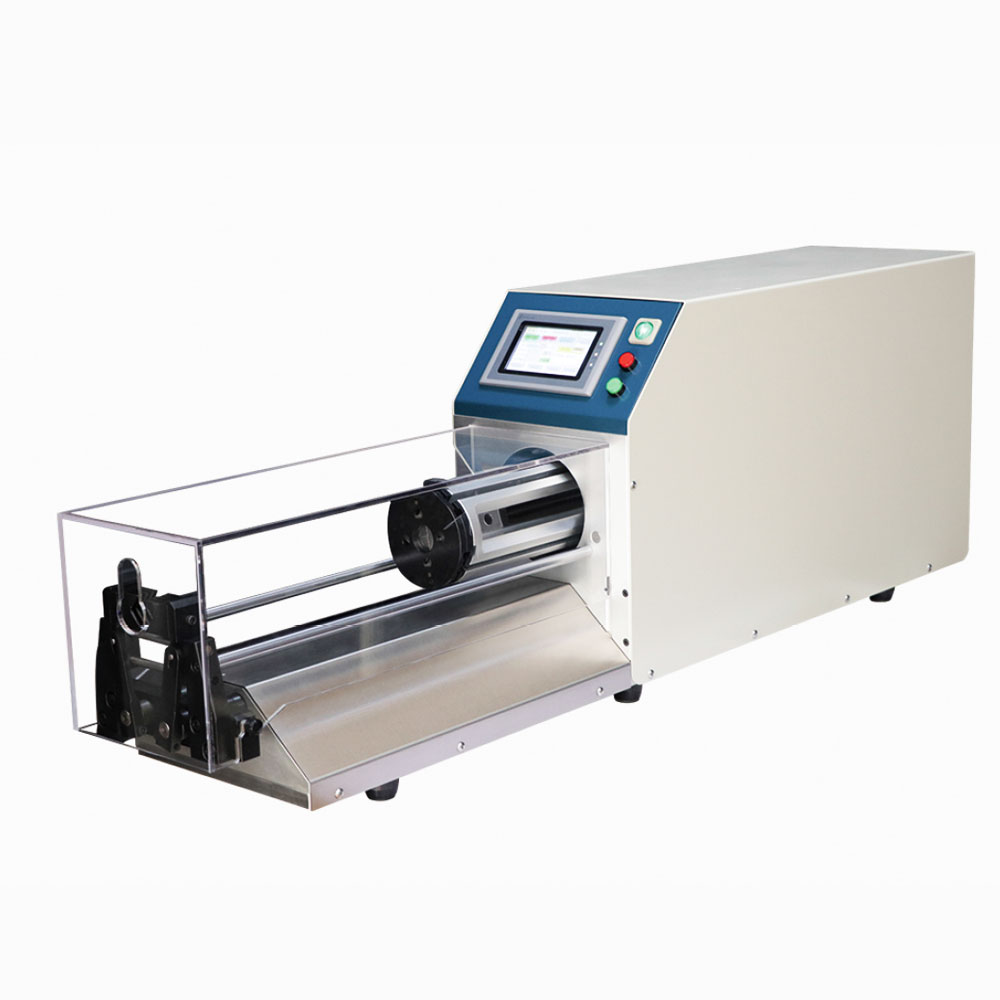

The SC-D23 series is engineered for precision stripping of coaxial cables, suitable for a wide range of flexible and semi-flexible cables used in the communications, medical, and automotive industries.
The SC-D23 model has been fully upgraded and is now available in four variants: SC-D2310, SC-D2315, SC-D2325, and SC-D2335. These offer stripping lengths from 100 mm to 350 mm to meet diverse application needs. Blades and other consumables remain interchangeable across the series.
Features:
Precision Cutting System – Equipped with a three-blade cutting head and integrated centering unit, ensuring sequential and precise processing of the cable's outer diameter through its specially designed cutter system.
High-Speed Operation – High-quality, durable blades and components enable fast processing speeds, significantly reducing cycle times.
Simple Controls – Operation is simplified with just three intuitive controls for setting diameter, stripping length, and pull-off length. The display shows cut diameter in precise 0.01 mm increments.
Flexible Activation – The processing cycle can be easily activated by touching the conductor tip to the trigger sensor for automatic start. If automatic triggering is not suitable – for instance, with highly flexible conductors – a foot switch is provided as an alternative.
Superior Cut Quality – The centering unit ensures exact cable alignment, while the rotating blades deliver a clean, smooth cut around the entire circumference of the insulation, free of marks or ridges.
Multiple Stripping Modes – Supports full strip, half strip, mid-strip (window stripping), and twisting.
