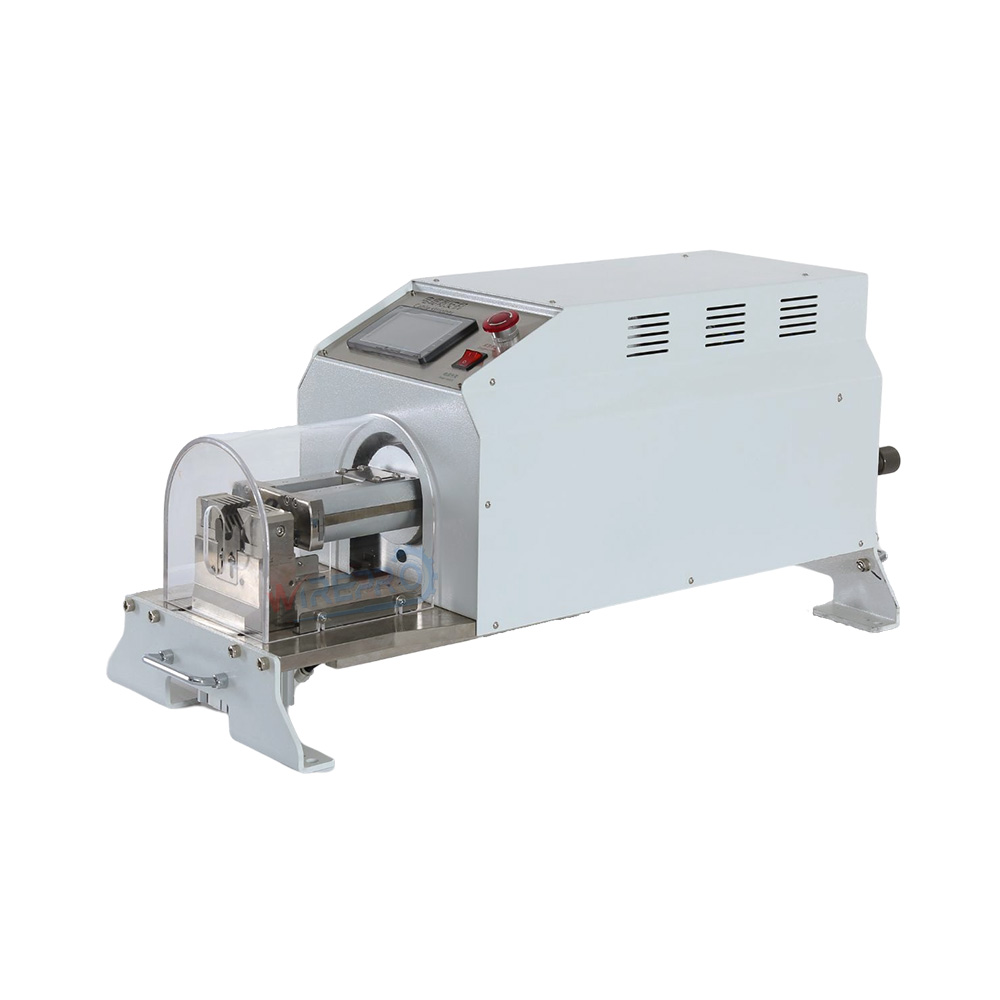

SP-R10
| Availability: | |
|---|---|
| Quantity: | |
This series of semi-automatic rotary knife stripping machines is designed for handling large-size cables and challenging stripping tasks. They are widely used for stripping single-strand soft wires, multi-strand soft wires, hard wires, sheath wires, and flat wires.
1. Capable of processing large-diameter cables.
2. Powerful stripping performance.
3. Features special axial positioning and double-rotating blade cutter tools for high-precision rotation.
4. Offers excellent performance at a cost-effective price.
| Model | SP-R10 | SP-R20 |
| Features | Rotary blade cutting, pneumatic cylinder peeling | |
| Available Wire Dia | 5-25mm | 5-25mm |
| Stripping Length | 1-100mm | 1-200mm |
| Stripping Tolerance | ±0.2mm | ±0.2mm |
| Production Rate | 10-30 pcs/min | 10-30 pcs/min |
| Cutting Blade Stroke | 0-28mm | 0-28mm |
| Control System | Dedicated controller | Dedicated controller |
| Air Connection | 0.5-0.7 Mpa | 0.5-0.7 Mpa |
| Power Supply | 110/220VAC, 50/60Hz | 110/220VAC, 50/60Hz |
| Power | 100W | 100W |
| Weight | 80kg | 95kg |
| Dimensions | 100*33*43cm | 100*45*35cm |
Application
The series machines are designed for stripping big-size cable.
The SP-R10 and SP-R20 are semi-automatic rotary knife stripping machines designed for large-size cables and challenging stripping tasks. They process single-strand soft wires, multi-strand soft wires, hard wires, sheath wires, and flat wires with precision.
Both models process cable diameters from 5-25mm. The SP-R10 offers a stripping length of 1-100mm, while the SP-R20 extends to 1-200mm. This makes them suitable for a wide range of large cable preparation tasks.
Both models achieve a stripping tolerance of ±0.2mm for high precision. The production rate is 10-30 pieces per minute, offering efficient processing for medium-volume cable stripping operations.
Key features include special axial positioning and double-rotating blade tools for high-precision rotation, powerful stripping performance for large cables, and a cost-effective price point. Free sample testing is also available.
Both require 110/220VAC, 50/60Hz power (100W) and an air connection of 0.5-0.7 Mpa. The SP-R10 weighs 80kg with dimensions 100*33*43cm, while the SP-R20 weighs 95kg with dimensions 100*45*35cm, requiring dedicated floor space.
The rotary blade design and pneumatic peeling system handle various cable types. The cutting blade stroke is adjustable (0-28mm), and some sizes can be customized. Changeover between different cable diameters requires blade and parameter adjustments.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
