SC-D10
| Availability: | |
|---|---|
| Quantity: | |

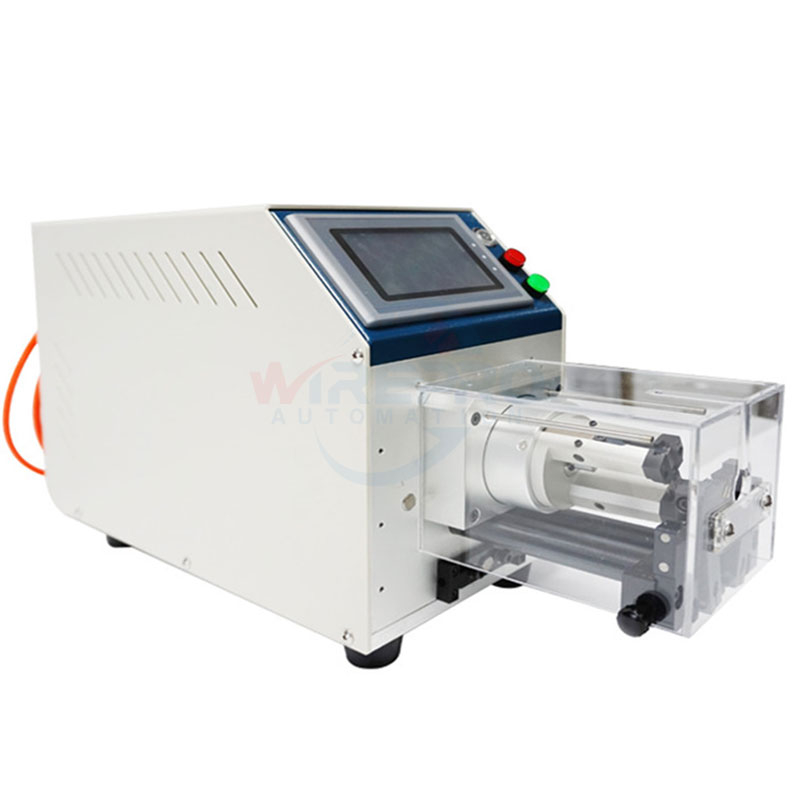

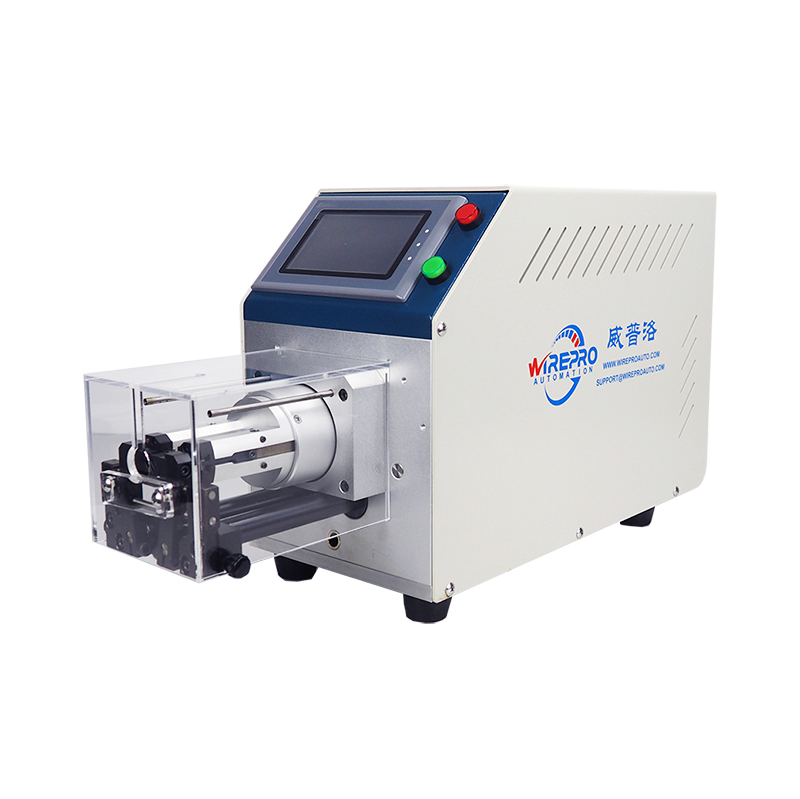

This programmable semi-automatic coaxial cable stripping machine features an innovative four-cutter design, allowing it to handle a wide variety of wires and cables, including those that are thin, tough, or slightly irregular. It accommodates cables with a maximum diameter of 10mm and a stripping length of up to 65mm.
Features:

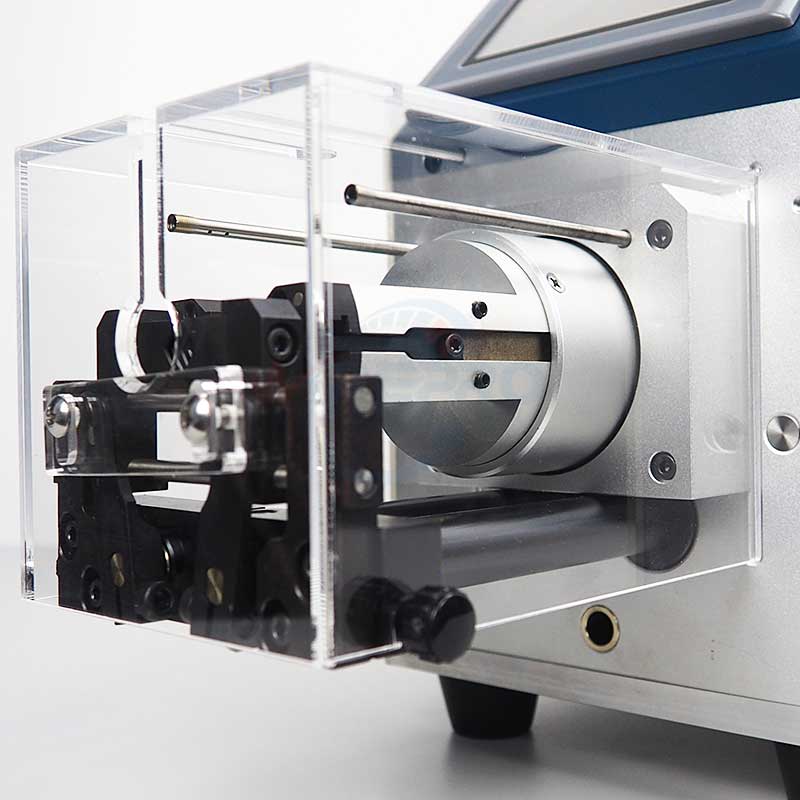

1. Rotary Stripping Head: The advanced design ensures stability and extends the machine's lifespan.
2. High Layer Capability: Supports up to 9 layers of stripping for versatile applications.
3. Advanced Peeling Options: Facilitates multi-layer and multi-stage peeling processes with precision.
4. Precision Engineering: Equipped with a servo motor, precision ball screw, and multi-point motion control system for reliable and efficient operation.
5. Durable Cutting Tools: Made of premium steel with an optional titanium alloy coating for enhanced sharpness and durability.
This machine is ideal for high-precision cable stripping requirements across various industries.

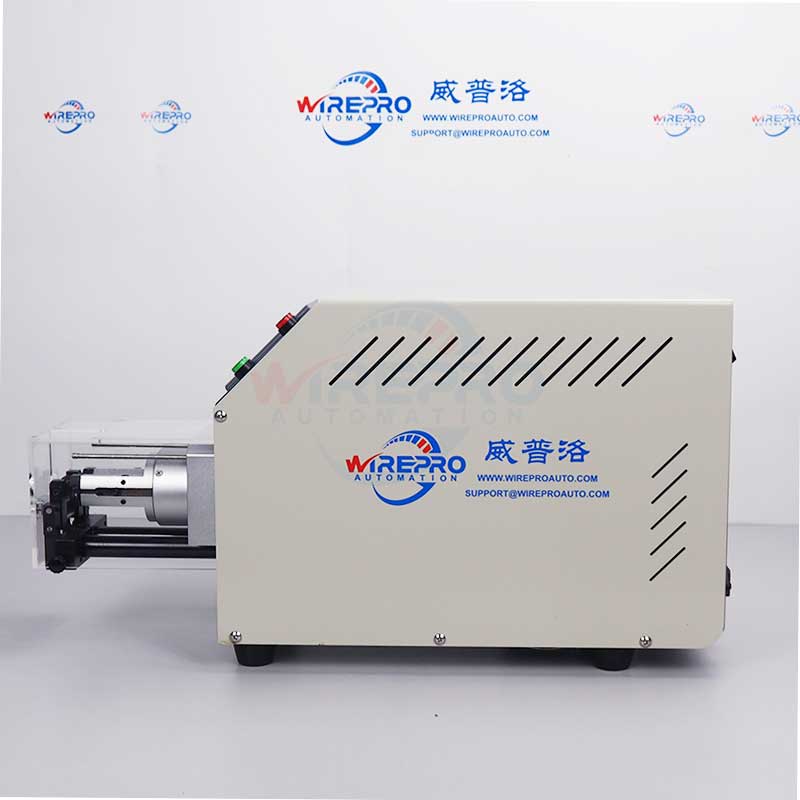

| Model | SC-D07 | SC-D10 |
| Features | Rotary knife cutter stripping | Rotary knife cutter stripping |
| Available Wire Dia | 0.81-7mm | 1- 10mm |
| Stripping Length * | ≤48mm | ≤65mm |
| Blade Quantity | 2 pieces | 4 pieces |
| Production Rate | 700-1200pcs/h | 700-1200pcs/h |
| Stripping Layers | Max 9 layers | Max 9 layers |
| Display Screen | Chinese / English touch screen | Chinese / English touch screen |
| Power Supply | 220V/110V | 220V/110V |
| Power | 240W | 400W |
| Dimensions | 60*18.5*28cm | 60*18.5*28cm |
| Weight | 24kg | 25kg |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | ||
Application
Stripping coaxial cable, max 9 layers.
Applicable to all kinds of flexible and semi-flexible coaxial cable in the communication industry and medical automotive industry etc.
The SC-D10 is a programmable semi-automatic coaxial cable stripping machine with a four-cutter design. It is used for processing flexible and semi-flexible coaxial cables in the communication, medical, and automotive industries, handling diameters up to 10mm.
It processes wire diameters from 1-10mm with a maximum stripping length of ≤65mm. For comparison, the SC-D07 model handles 0.81-7mm diameters with ≤48mm stripping length. Custom lengths are available upon request.
The SC-D10 offers a production rate of 700-1200 pieces per hour. It is equipped with a servo motor, precision ball screw, and multi-point motion control system for stable and efficient high-precision operation.
Key differentiators include a four-cutter design, ability to strip up to 9 layers (multi-layer and multi-stage peeling), a durable stripping tool with optional titanium alloy coating, and a rotary stripping head for enhanced stability and longer working life.
The SC-D10 requires 220V/110V power (400W) and has compact dimensions of 60*18.5*28cm, weighing 25kg. It features a Chinese/English touch screen for easy operation and setup.
The programmable system with multi-point motion control allows for easy adjustment to different cable types. The machine supports up to 9 stripping layers, and the manufacturer offers free sample testing to determine optimal settings for your specific cables.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
