SP-3035
| Availability: | |
|---|---|
| Quantity: | |

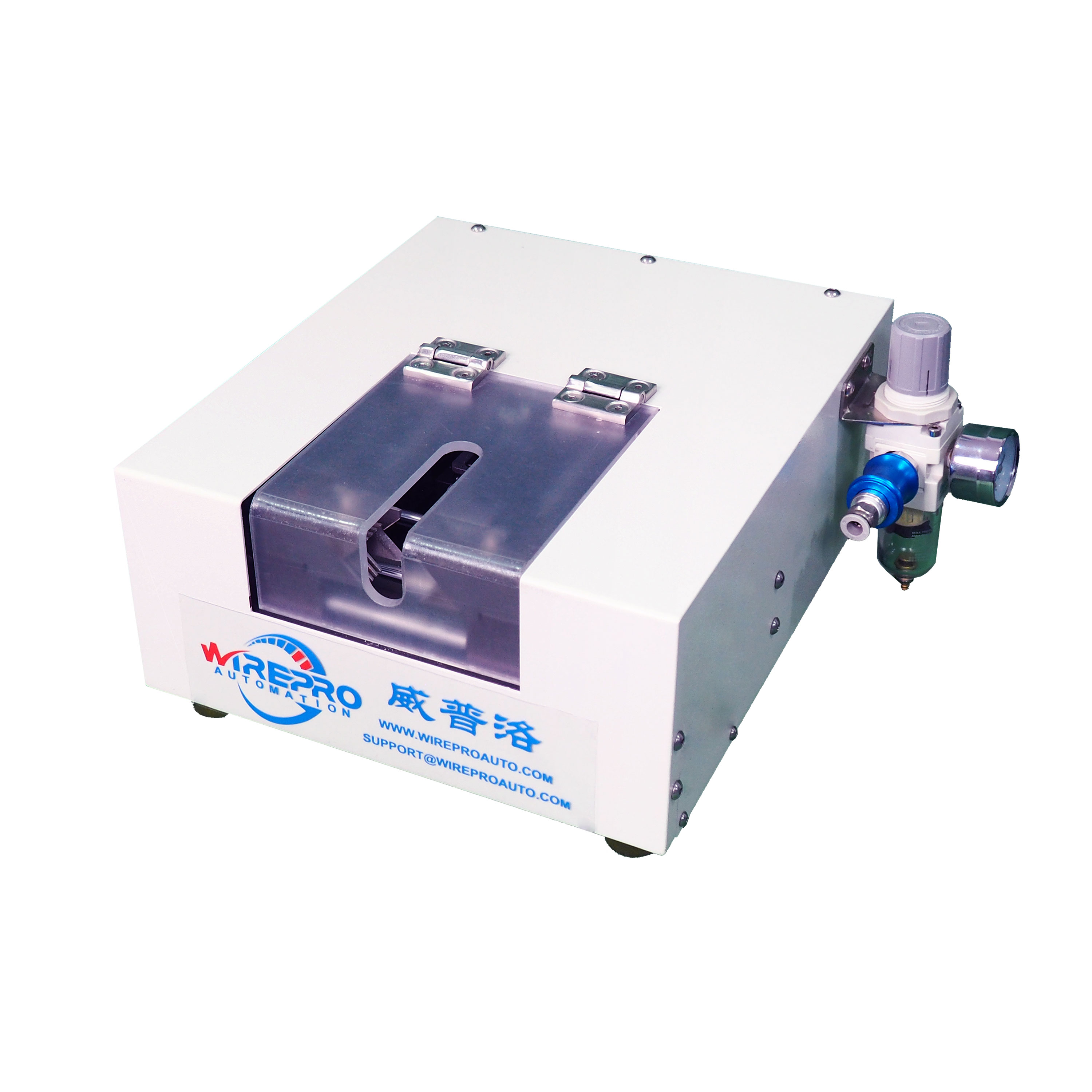

The SP-3035 is designed for efficient and rapid stripping of wires with a wide range of diameters.
1. Powered by a cylinder, it is compact, portable, and easy to operate.
2. Features high-precision, durable imported pneumatic components for long-lasting performance.
3. No blade changes are required, making it versatile for stripping wires of various diameters.
This machine is particularly effective for stripping multi-core cables, including armored cables, submersible cables, underground feeder cables, and more.
Model | SP-3035 |
Features | Don’t change the knife for different wires |
Available Wire Size | AWG2 – AWG14 |
Conductor Cross-Section | 2.5-35mm² |
Stripping Length | 2-30mm |
Air Connection | 0.5MPa – 0.8MPa |
Weight | 15kg |
Dimensions | 36*29*18cm |
Application
For small wire stripping
The SP-3035 is a compact, portable pneumatic stripping machine designed for efficient stripping of multi-core cables. It is particularly effective for armored, submersible, and underground feeder cables, processing a wide range of wire diameters without blade changes.
It processes AWG2 to AWG14 wire, with a conductor cross-section of 2.5-35mm². The maximum stripping length is 30mm, making it suitable for heavy-duty cable preparation tasks in industrial settings.
Its key differentiator is the no-tool-swapping design, eliminating blade changes for different wire diameters. It also features high-precision, durable imported pneumatic components for reliable, long-lasting performance in demanding applications.
The SP-3035 requires an air connection of 0.5MPa – 0.8MPa. It has compact dimensions of 36*29*18cm and weighs 15kg, making it portable and easy to integrate into various workspaces with modest space requirements.
The machine's design automatically accommodates different wire diameters, eliminating the need for blade swaps. For specific custom cable sizes beyond the standard range, the manufacturer offers customization options to meet unique requirements.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
