SP-2015
| Availability: | |
|---|---|
| Quantity: | |

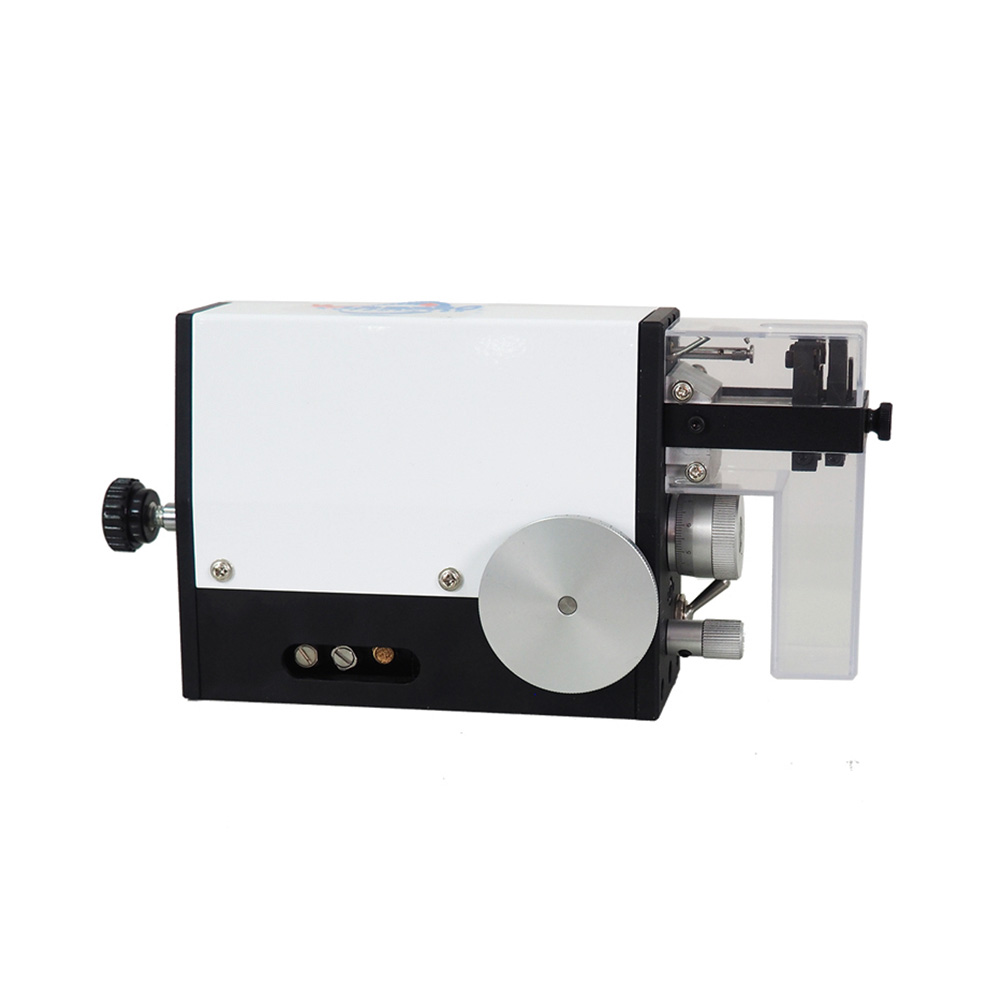

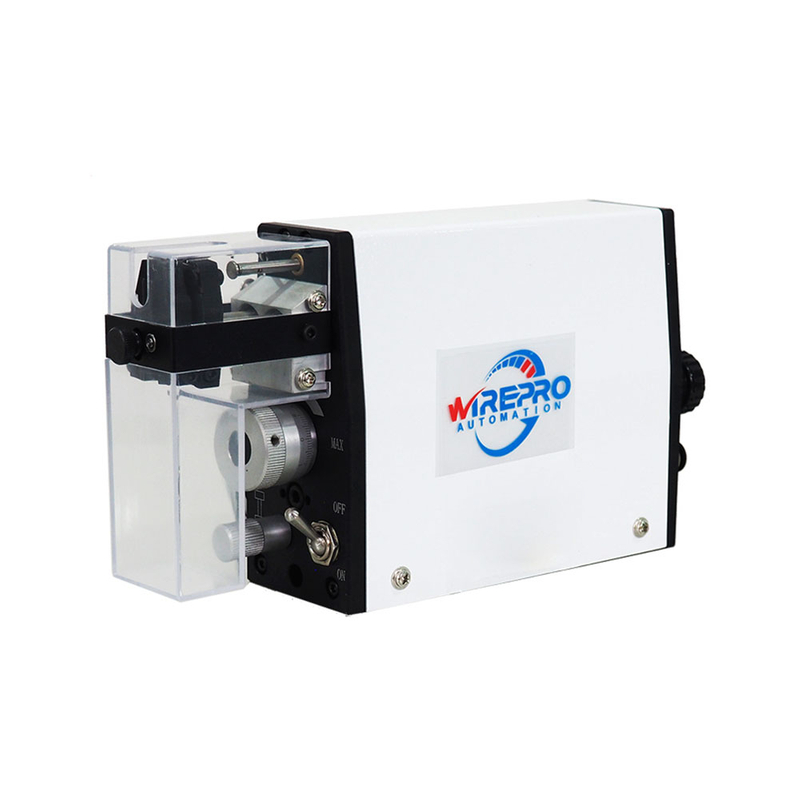

SP-2015 Semi-Automatic Small Wire Stripping Machine is designed for high-precision wire stripping. It is suitable for various types of wires, including discrete wires, solid wires, single-stranded wires, single-core cables, cables, rubber wires, and PUR, PVC, PTFE wires.
Product Features:
1. High-Precision Stripping: Achieves a stripping length tolerance of 0.01 mm (0.001″), ideal for precision processing.
2. Compact Design: The space-saving design allows for integration into multiple workstations, improving workspace efficiency.
3. Universal Blade System: Reduces tool change time significantly, enhancing overall productivity.
4. Versatile Applications: Perfect for processing multi-core cables and flat cable inner cores.
5. Fast Processing Speed: Ensures quick wire stripping, making it suitable for high-volume production.
Watch the video below to learn more about the SP-2015 Semi-Automatic Small Wire Stripping Machine in action and see its capabilities firsthand!
Model | SP-2015 |
Features | For small wire stripping |
Available Wire Size | AWG32 – AWG14 |
Conductor Cross-Section | 0.03–2.08mm² |
Wire Diameter | 3.2mm ( 0.12″ ) |
Stripping Length | Max 18mm |
Stripping Length Tolerance | 0.01 mm (0.001″) |
Air Connection | 0.5MPa – 0.8MPa |
Weight | 2kg |
Dimensions | 26*15*27cm |
Application
For small wire stripping
The SP-2015 is a semi-automatic small wire stripping machine designed for high-precision removal of insulation from various wire types. It is used for processing discrete wires, solid wires, single-stranded wires, single-core cables, rubber wires, and PUR, PVC, PTFE wires in production environments.
It processes AWG32 to AWG14 wire, with a conductor cross-section of 0.03–2.08mm² and a maximum outer wire diameter of 3.2mm (0.12″). The maximum stripping length is 18mm, making it suitable for a range of small-gauge wiring applications.
The SP-2015 achieves a stripping length tolerance of 0.01 mm (0.001″), ensuring high precision for sensitive applications. It is designed for fast processing speeds to support high-volume production, though specific cycle times are not listed on the page.
Key differentiators include its high-precision tolerance of 0.01mm, a universal blade system that reduces tool change time, and a compact design for efficient workspace integration. It also offers free sample testing for standard machines and customizable size options.
The SP-2015 requires an air connection of 0.5MPa – 0.8MPa. It has a compact footprint with dimensions of 26*15*27cm and weighs only 2kg, allowing for easy integration into multiple workstations without significant space or power demands.
The universal blade system significantly reduces tool change time, enhancing productivity when switching between different wire types. For specific terminal or wire size changes, the page indicates that some sizes can be custom ordered to meet your requirements.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
