TS-R16
| Availability: | |
|---|---|
| Quantity: | |
Description

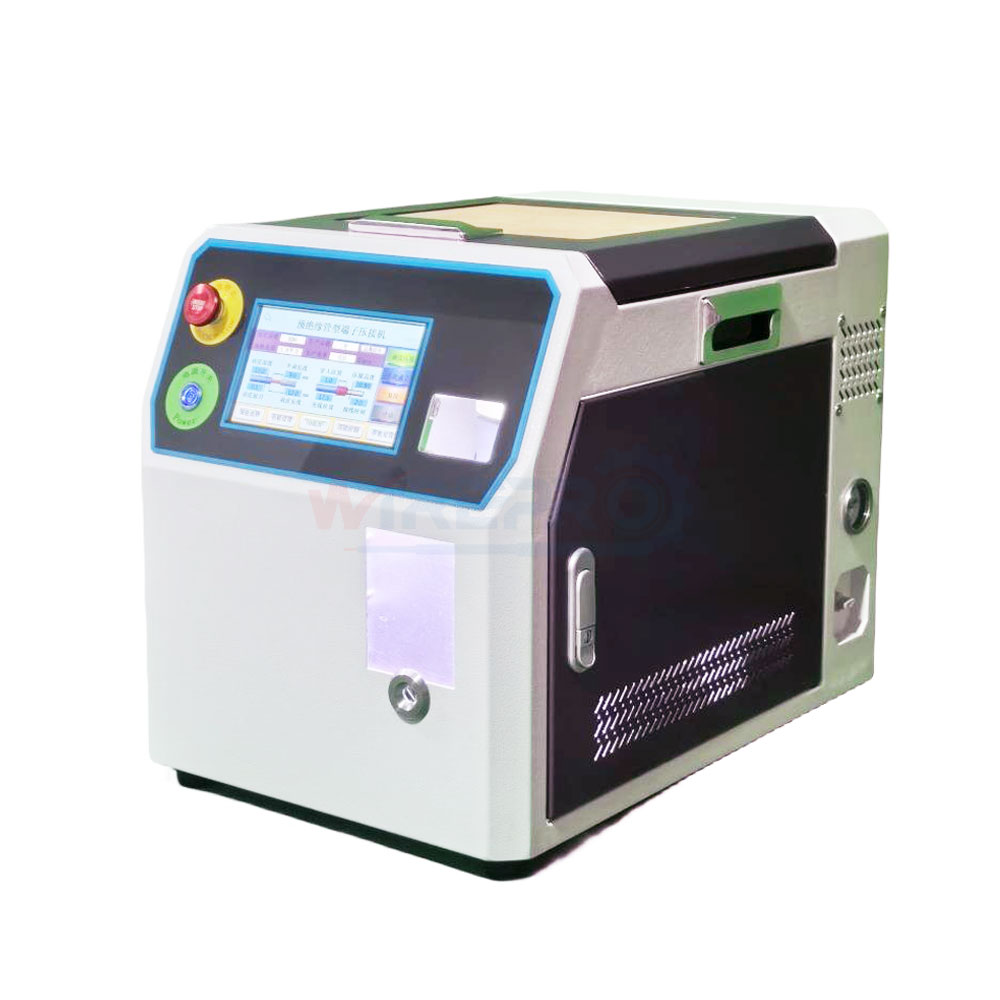

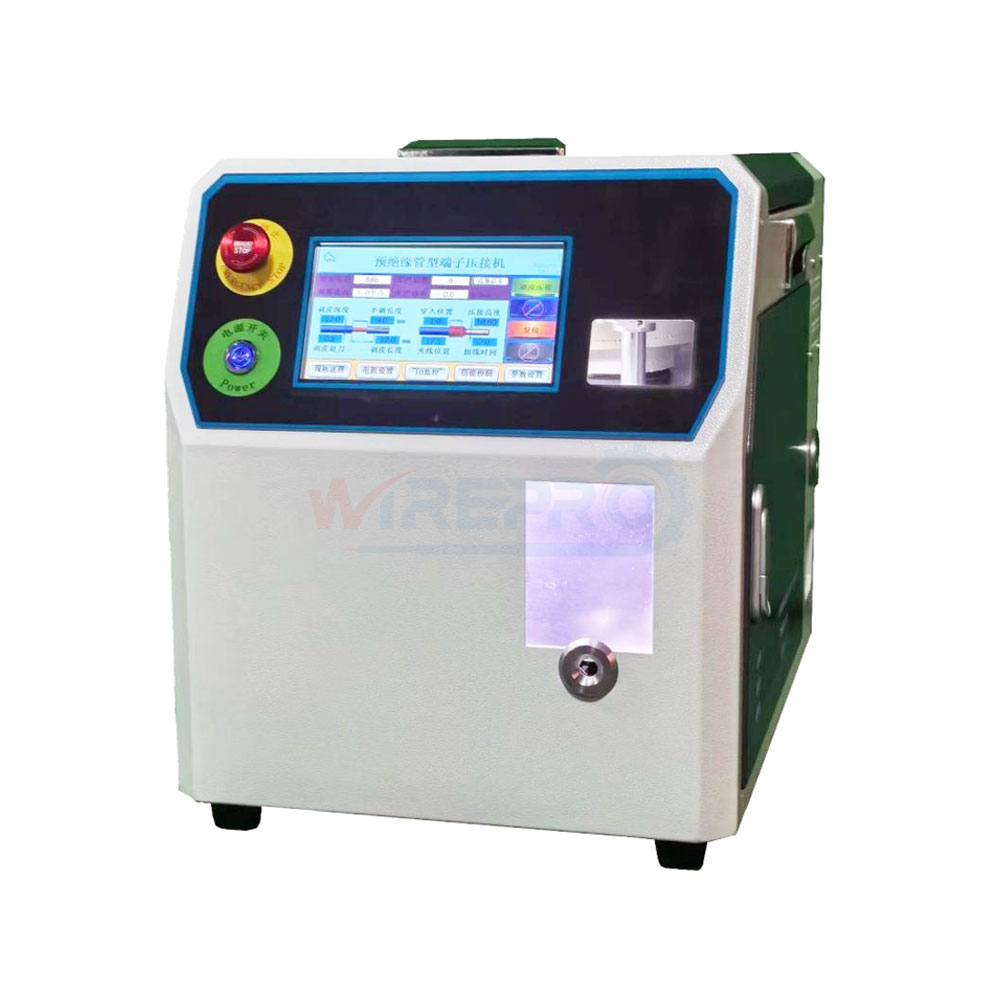

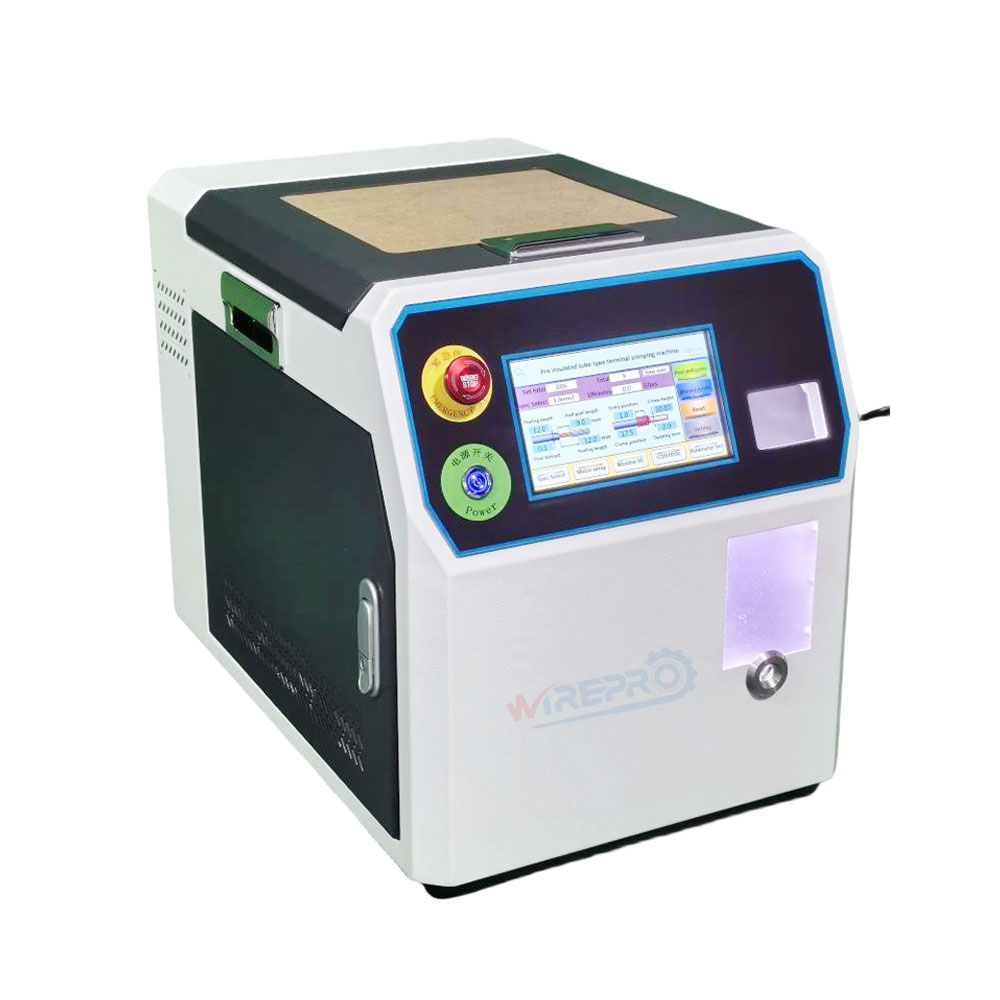

The TS-R16 can complete wire stripping and automatic ferrule crimping in a single cycle, with a maximum capacity of 16 mm². It is particularly well-suited for multi-core cable processing.
Key Features:
Simplified Complex Process – Completes wire stripping and ferrule crimping in one cycle. Efficiency is 3–4 times higher than manual operations, offering a significant cost advantage.
No Vibration Plate Change Required – Within the terminal scope, there is no need to change the vibration plate. Different terminal specifications can be switched instantly.
Automatic Adjustment – Strip diameter is automatically adjusted, and pressure height is automatically set.
Sensitive Pneumatic Induction Control – Adopts responsive pneumatic induction control for fast pressure application.
Convenient Terminal Replacement – Vibration disk feeding mode makes terminal replacement convenient and quick.
Terminal Shortage Alarm – The machine stops working and sounds an alarm when terminals run out.
| Model | TS-R16 |
| Function | Wire stripping and ferrule terminal crimping |
| Available Wire | Multi-strand wire 0.5 – 16 mm² The feeding system can accommodate 10 different terminal sizes |
| Available Terminal | Insulator length ≤11mm, conductor length ≤20mm |
| Striping Length | 6-30 mm |
| Production Rate | 3.5s /wire |
| Air supply | 0.6 – 0.7 Mpa |
| Power | AC220V / 110V |
| Dimensions | 36*54*43 cm |
| Weight | 62KG |
Wire stripping and ferrule terminal crimping
Multi-core cable processing
Wire harness assembly with insulated ferrules
The TS-R16 is a machine that completes wire stripping, copper twisting, and automatic ferrule crimping in one cycle for multi-strand wires from 0.5-16mm², ideal for multi-core cable processing.
Available wire: multi-strand 0.5-16mm². Available terminal: insulator length ≤11mm, conductor length ≤20mm. Stripping length: 6-30mm. Production rate: 3.5s/wire. Air supply: 0.6-0.7MPa. Power: AC220V/110V. Dimensions: 36*54*43cm, weight: 62kg.
Key features include combined stripping and ferrule crimping in one cycle for 3-4 times efficiency, no vibration plate change needed within the terminal range, automatic strip diameter and pressure height adjustment, sensitive pneumatic induction control, and automatic stop with sound alarm when terminals are insufficient.
The TS-R16 requires AC220V/110V power and 0.6-0.7MPa air supply. Dimensions: 36*54*43cm, weight: 62kg. It is a compact benchtop unit requiring moderate workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
