TS-R01
| Availability: | |
|---|---|
| Quantity: | |

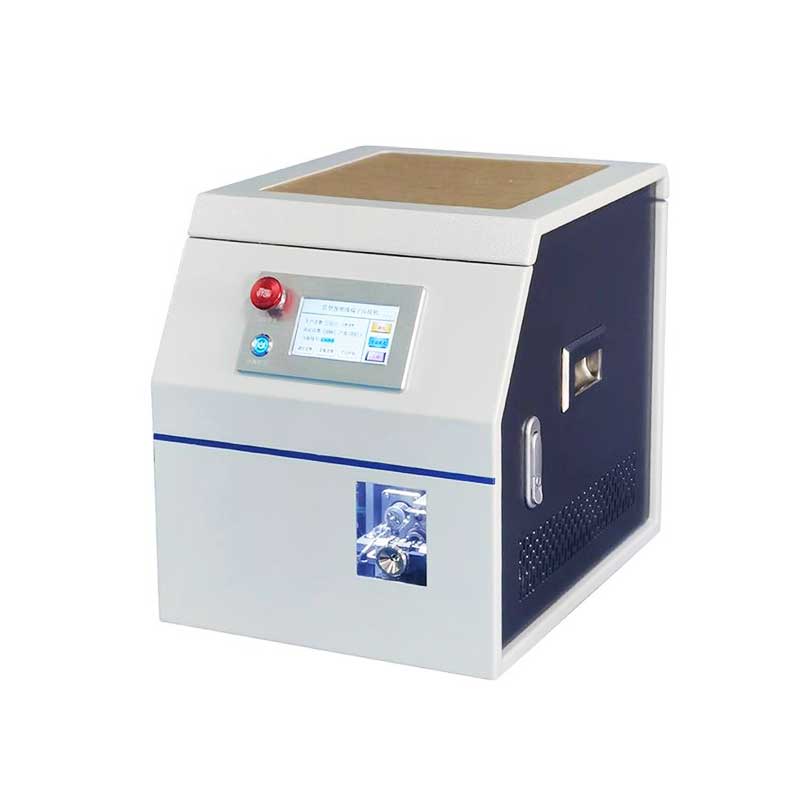

This automatic wire stripping and ferrule crimping machine streamlines the complex cable processing workflow by completing wire stripping and ferrule crimping in a single cycle. It is particularly effective for multi-core cables, delivering exceptional efficiency and cost advantages.
Key Features:
1. Simplified Process: Wire stripping and ferrule crimping are completed in one seamless operation, improving efficiency by 3-4 times and reducing production costs.
2. Quick Terminal Changeover: No need to replace the vibration plate within the supported terminal range, allowing instant terminal specification changes.
3. Automatic Adjustments: Strip diameter and crimping pressure height are automatically adjusted for consistent and accurate results.
4. High-Speed Pneumatic Control: Features sensitive pneumatic induction control for fast and reliable pressure application.
5. Easy Terminal Replacement: Utilizes a vibrating disk feeding mode, enabling quick and convenient terminal replacement.
6. Automatic Alarm System: The machine stops and triggers a sound alarm when terminals are insufficient, ensuring uninterrupted and efficient operation.
Model | TS-R01 |
Function | Wire stripping and ring terminal crimping |
Available Wire | BVR wire 0.5,0.75,1.0,1.5,2.5mm2 |
Available Terminal | Insulator length ≤7.5mm,conductor length≤10mm |
Stripping Length | Max.17mm |
Production Rate | 2.5s /wire |
Air supply | 0.6-0.8Mpa |
Power | AC220V/110V |
Dimensions | 35*45*40cm |
Weight | 40KG |
Application
Wire stripping and ring terminal crimping
The TS-R01 completes wire stripping and ferrule crimping in a single cycle, streamlining cable processing. It is particularly effective for multi-core cables using BVR wire sizes 0.5, 0.75, 1.0, 1.5, and 2.5mm².
It processes BVR wires of 0.5, 0.75, 1.0, 1.5, and 2.5mm². Compatible terminals have insulator length ≤7.5mm and conductor length ≤10mm, with a maximum stripping length of 17mm.
The TS-R01 offers a production rate of one wire every 2.5 seconds, improving efficiency by 3-4 times compared to separate processes. It features high-speed pneumatic control for fast and reliable pressure application.
Key features include one-step stripping and ferrule crimping, quick terminal changeover without vibration plate replacement, automatic strip diameter and crimping pressure adjustment, and a vibrating disk feeding system for easy terminal replacement.
The TS-R01 requires air supply of 0.6-0.8MPa and operates on AC220V/110V power. It has dimensions of 35*45*40cm and weighs 40kg, making it suitable for benchtop installation.
The machine supports quick terminal changeovers without replacing the vibration plate within the supported terminal range. Automatic adjustments for strip diameter and crimping pressure ensure consistent results, with free sample testing offered.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
