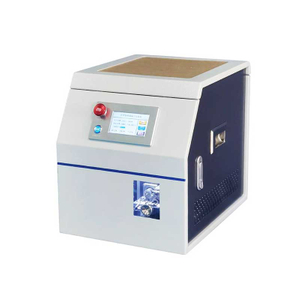

The multi-core sheathed cable stripping and ferrules crimping machine is a specialized solution for efficiently processing core wires within multi-conductor sheathed cables. Designed for precision and ease of operation, it automates the stripping of inner wires and terminal crimping in one seamless step. Operators only need to pre-strip the outer jacket and position the cable—this machine takes care of the rest, significantly improving production efficiency.
Key Features:
1. Dedicated for Multi-Core Cable Processing: Specifically designed to strip and crimp the core wires of multi-conductor sheathed cables, enhancing workflow efficiency.
2. One-Step Automation: Stripping and terminal crimping are completed in a single operation, saving time and ensuring precision. The frequency conversion control enables smooth starts and stops with minimal mechanical wear.
3. Flexible Operation Modes: Supports independent stripping and riveting operations, automatic/manual controls, and adjustable action times to suit various wire and terminal specifications.
4. Easy Adaptability and Replacement: Features independent cassette dies and stripping components, with easily replaceable dies, adjustable stripping depth, and strong production adaptability.
5. Advanced Control System: Utilizes PLC control and a color touch screen interface, while servo motors drive moving parts for high precision, reliability, and user-friendly operation.
6. Clean Operation: Equipped with a proprietary debris recovery system to ensure clean and dust-free processing.
Model | TS-M02 |
Available Wire Size | 5 cores, min.0.75mm; 8 cores, min 0.5mm; 12 cores, min 0.3mm, others please check with WIREPRO |
Available Cores Number | 1-16 cores |
Jacket stripping Length | Based on the core numbers, generally need more than 30mm |
Cores Stripping Length | 1-7mm (can custom) |
Production Rate | 700-800 pieces/hour (6 cores) |
Crimp Force | 2T |
Air Connection | 0.4-0.7 Mpa |
Power supply | 110/220VAC,50/60Hz |
Power | 750W |
Weight | 85kg |
Dimension | 40*60*135cm |
Application
Fully automatic one-ends wire cutting stripping and terminal crimping machine.
The TS-M02 is a specialized machine for stripping and crimping core wires within multi-conductor sheathed cables. It automates inner wire stripping and terminal crimping in one seamless step, supporting 1-16 cores with wire sizes from 0.3mm² to 0.75mm².
It supports 1-16 cores. Wire size: 5 cores (min. 0.75mm), 8 cores (min. 0.5mm), 12 cores (min. 0.3mm). Core stripping length: 1-7mm (custom available). Jacket stripping length requires more than 30mm based on core count.
The machine delivers 700-800 pieces per hour (for 6-core cables) with a 2-ton crimping force. It features frequency conversion control for smooth starts and stops with minimal mechanical wear.
Key features include one-step stripping and crimping automation, PLC control with color touch screen, independent cassette dies and stripping components for easy replacement, adjustable stripping depth, and a proprietary debris recovery system for clean operation.
The TS-M02 requires 110/220VAC, 50/60Hz power (750W) and 0.4-0.7MPa air connection. It has dimensions of 40*60*135cm and weighs 85kg, requiring moderate floor space.
The machine features independent cassette dies and stripping components with easily replaceable dies and adjustable stripping depth. It supports independent stripping and riveting operations, automatic/manual controls, and adjustable action times for various wire and terminal specifications.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
