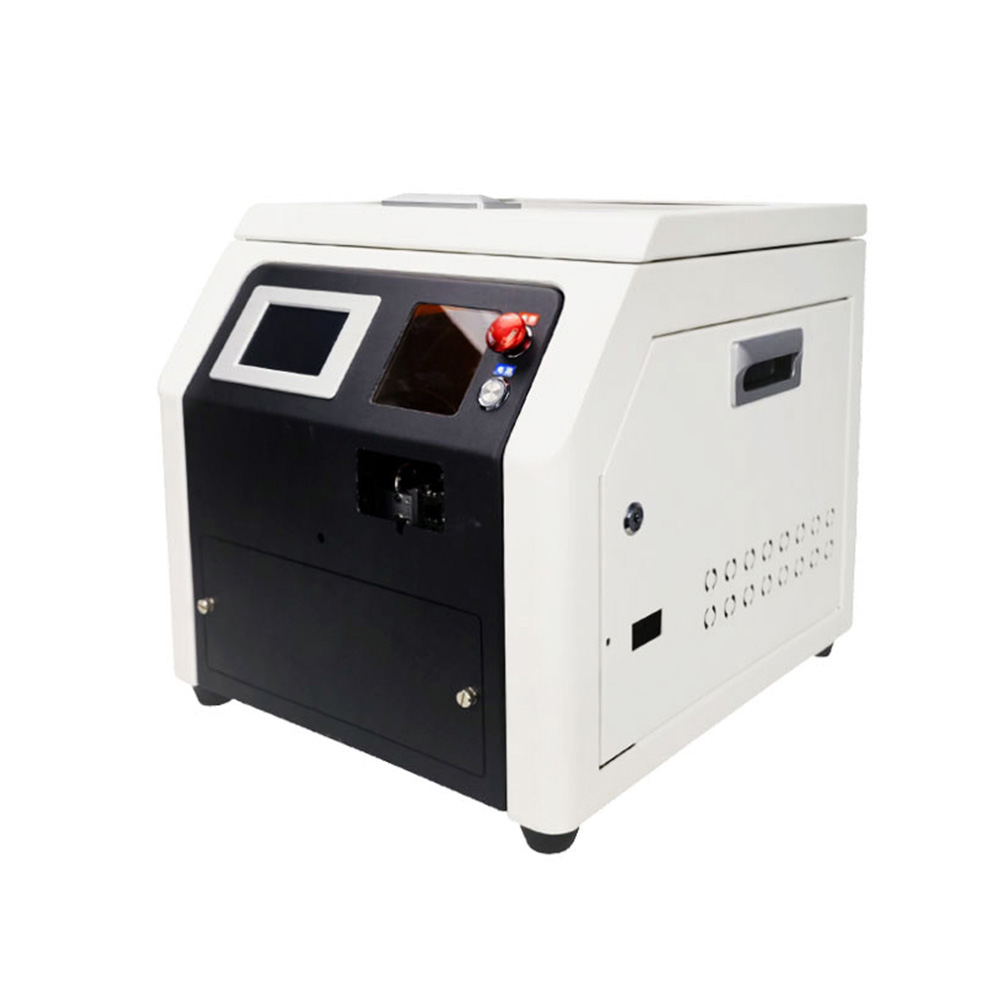

This automatic bootlace ferrule crimping machine is a versatile solution for stripping, twisting, and crimping loose tubular terminals onto cables. With no need to change crimping dies for different terminal sizes, it offers exceptional efficiency and user convenience. It is compatible with tubular terminals ranging from 0.3mm² to 4mm² and completes stripping, twisting, and crimping in just 2.5 seconds, making it ideal for high-efficiency wire processing tasks.
Key Features:
1. One Machine, Multiple Sizes: Designed to crimp a variety of loose tubular terminals onto cables without requiring crimping die changes, saving time and simplifying operations.
2. Integrated Stripping, Twisting, and Crimping: Performs wire stripping, twisting, and crimping in a single cycle. The twisting function prevents loose conductors and ensures clean and secure terminal connections, ideal for stranded and thin wires.
3. User-Friendly LCD Display: The machine features an LCD display for easy adjustment of stripping depth and length, ensuring precision and smooth operation.
4. Efficient and Quiet Operation: Equipped with a mute motor for terminal feeding, automatic terminal supply, and four-sided crimping, delivering seamless and noise-free performance.
5. Quick and Easy Reclaimer Replacement: The reclaimer can be easily replaced by unscrewing the designated part, improving operational flexibility and reducing downtime.
6. Adjustable Ferrule Feeder: The vibration amplitude of the guide rail is adjustable—increase for larger terminals and decrease for smaller ones—ensuring smooth feeding for terminals of all sizes.
Model | TS-R02 |
Function | Wire stripping twisting and ring terminal crimping |
Available Wire | BVR wire 0.5,0.75,1.0,1.5,2.5,4.0mm2 |
Available Terminal | Insulator length ≤7.5mm, conductor length≤10mm |
Stripping Length | Max.12mm （the wire need more than 35mm into the machine） |
Production Rate | 2.5s /wire |
Air supply | 0.6-0.8Mpa |
Power | AC220V/110V |
Dimensions | 39*42*50cm |
Weight | 50KG |
Application
Wire stripping and ring terminal crimping
The TS-R02 is a versatile machine that strips, twists, and crimps loose tubular terminals in a single 2.5-second cycle. It is designed for BVR wires from 0.5-4.0mm² and eliminates the need to change crimping dies for different terminal sizes.
It processes BVR wires of 0.5, 0.75, 1.0, 1.5, 2.5, and 4.0mm². Compatible terminals have insulator length ≤7.5mm and conductor length ≤10mm, with a maximum stripping length of 12mm.
The TS-R02 completes stripping, twisting, and crimping in just 2.5 seconds per wire. It features a mute motor for automatic terminal feeding and four-sided crimping, delivering efficient and quiet operation.
Key features include one machine for multiple terminal sizes without die changes, integrated stripping/twisting/crimping, an LCD display for easy adjustments, a mute motor for quiet operation, and adjustable ferrule feeder vibration for smooth terminal feeding.
The TS-R02 requires air supply of 0.6-0.8MPa and operates on AC220V/110V power. It has dimensions of 39*42*50cm and weighs 50kg, making it suitable for benchtop installation.
The machine supports multiple terminal sizes without die changes. The LCD display allows easy adjustment of stripping depth and length. The reclaimer can be quickly replaced by unscrewing the designated part, and the ferrule feeder vibration is adjustable for different terminal sizes.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
