TS-W01
| Availability: | |
|---|---|
| Quantity: | |

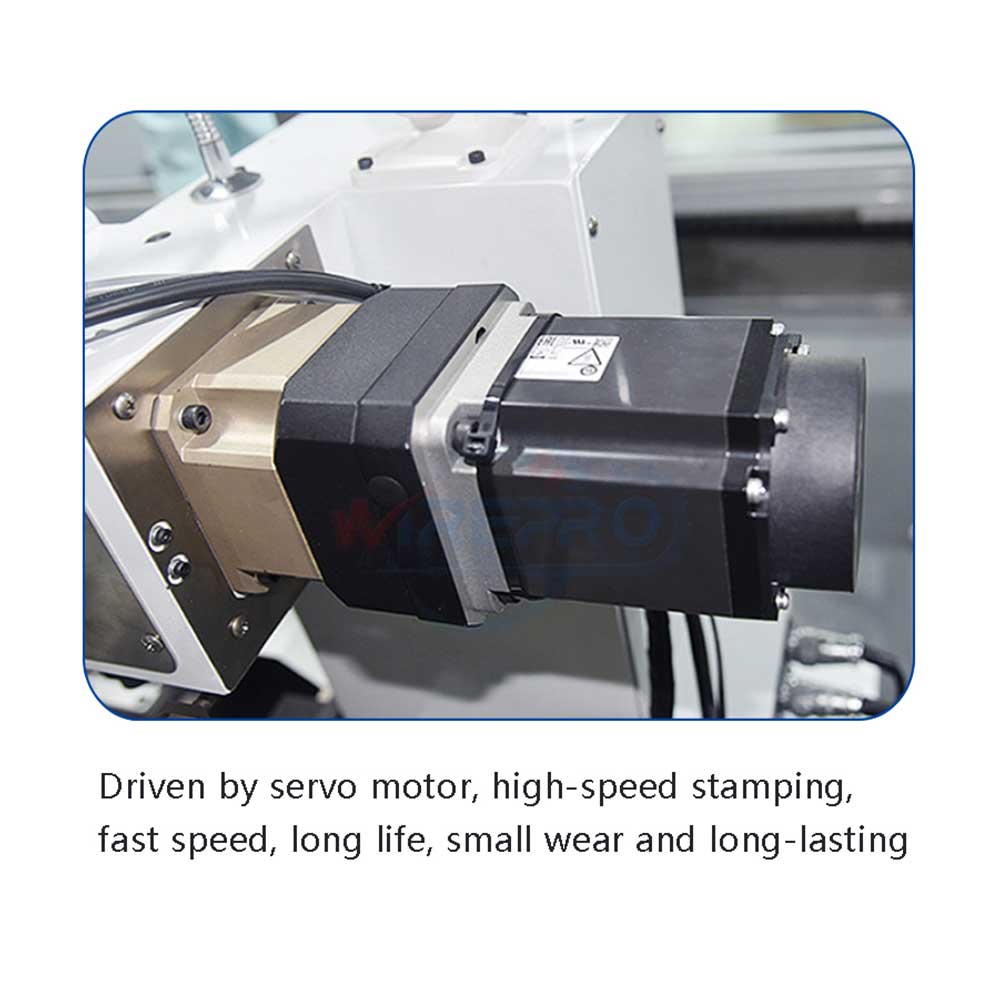

The TS-W01 semi-automatic machine integrates wire seal loading, wire stripping with twisting, and terminal crimping into a single, efficient operation. Its standout feature is the ability to process two-wire stripping and two-wire seal loading simultaneously, making it highly versatile for complex wire processing tasks. Engineered with servo drive and guide rail screw positioning, this machine delivers precise and reliable performance.
Key Features:
1. Customizable Stripping and Seal Insertion: Stripping length and wire seal insertion depth are easily adjustable via a digital interface, ensuring precise alignment between the stripping port and seal position.
2. Adjustable Crimping Depth: The crimping depth can be fine-tuned based on the wire's top position, providing flexibility for various wire specifications.
3. Precision Stripping Mechanism: The stripping slide table operates via a screw rod, and the stripping mechanism is driven by a motor and screw system, guaranteeing highly accurate stripping lengths.
4. Simplified Wire Seal Replacement: The waterproof seal feeding structure is designed for easy replacement, accommodating diverse product requirements and reducing downtime.
5. Integrated Workstation: Most tasks are concentrated in one streamlined workstation, ensuring ease of operation, stable quality, and improved productivity.
Model | TS-W01 |
Avaliable Wire | 0.2-2.5 sqmm |
Avaliable Wire seal | ≤ 10 * 10mm |
Stripping Length | 0-10 mm |
Crimping Force | 3T |
Stroke | 40mm |
One Process Time | 2.5 seconed |
Air Supply | 0.5~0.7Mpa |
Power Supply | AC 220 |
Dimension | L850*W880*H1300 mm |
Weight | 300KG |
Notice: need to customize feeding rail according to different wire seal | |
Application
The TS-W01 is a semi-automatic machine that integrates wire seal loading, wire stripping with twisting, and terminal crimping into a single operation. It is designed for complex wire processing requiring waterproof seals.
It processes wires from 0.2-2.5mm² with stripping lengths of 0-10mm. It handles wire seals up to 10*10mm with a crimping force of 3T and 40mm stroke. Custom feeding rails are required for different seals.
The machine completes one processing cycle in 2.5 seconds. It features the ability to process two-wire stripping and two-wire seal loading simultaneously, significantly improving productivity.
Key features include simultaneous two-wire stripping and seal loading, servo drive with guide rail screw positioning, digital interface for stripping length and seal depth adjustment, and a streamlined workstation for stable quality and improved productivity.
The TS-W01 requires AC 220V power and 0.5-0.7MPa air supply. It has dimensions of L850*W880*H1300mm and weighs 300kg, requiring dedicated floor space for installation.
The waterproof seal feeding structure is designed for easy replacement to accommodate diverse product requirements. Custom feeding rails are needed for different wire seals, and stripping length and seal insertion depth are easily adjustable via the digital interface.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
