HB-W28
| Availability: | |
|---|---|
| Quantity: | |

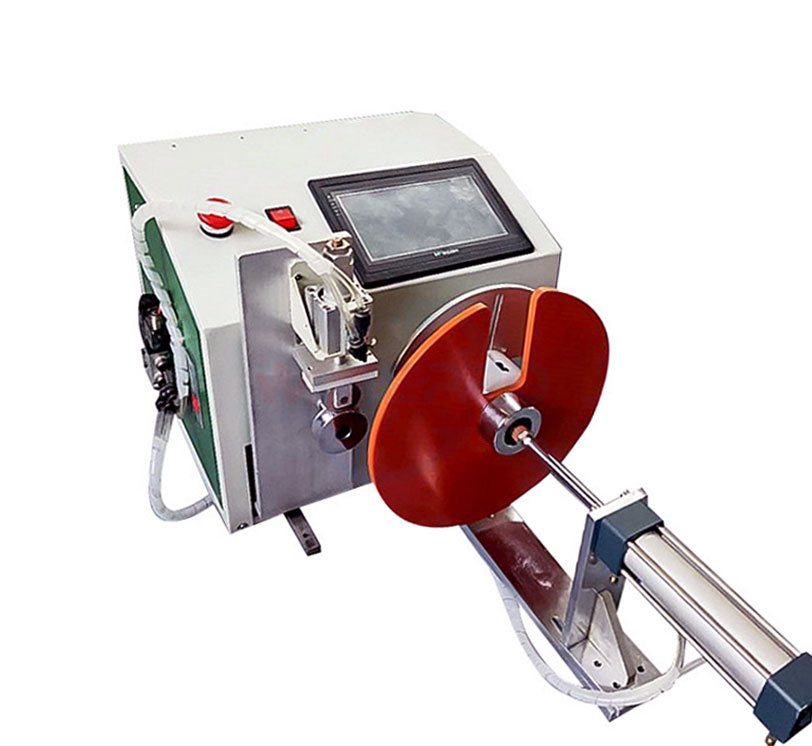

The HB-W35 is a compact and efficient wire winding machine designed to wind cables in a round shape, layer by layer. It is compatible with a variety of wires and tubes, such as USB cables, mouse/keyboard cables, headphone cables, AC/DC power cords, network cables, telephone lines, and other signal transmission wires.
Key Features:
1. Cost-Effective Solution: Operates 3 times faster than manual winding, significantly reducing labor costs while enhancing productivity and workplace efficiency.
2. User-Friendly Operation: Features PLC program control for quick and easy parameter adjustments, ensuring smooth and practical use.
3. Automatic Output Statistics: Automatically tracks and records output, eliminating manual counting and saving time.
4. Versatile Application: Suitable for various types of cables and tubes, ensuring flexibility across production requirements.
Model | HB-W28 | HB-W35 |
Max Loading Weight | 1.5kgs | 3kgs/15kgs |
Inner Dia of Round Shape | 50-200mm(can be adjusted) | 50-200mm(can be adjusted) |
Out Dia of Round Shape | Max 280mm | Max 350mm |
Width ( if layer by layer) | Standard Max 120mm | Standard Max 120mm |
Winding Speed | Can be set, 30 speed options | Can be set, 30 speed options |
Number of Windings | Can be set, 1-999 cycles | Can be set, 1-999 cycles |
Power Supply | 110/220VAC,50/60Hz | 110/220VAC,50/60Hz |
Power | 500W | 800W |
Dimensions | 40*80*35cm | 90*60*45cm |
Weight | 40kgs | 56kgs |
Application
Wire roll, small wire spool winding
The HB-W28 and HB-W35 are compact wire winding machines designed to wind cables into a round shape layer by layer. They are suitable for USB cables, power cords, network cables, and other signal transmission wires.
HB-W28 supports max 1.5kg load with outer diameter up to 280mm. HB-W35 supports 3kg/15kg load with outer diameter options up to 350mm. Both feature 50-200mm adjustable inner diameter, 30 speed options, and 1-999 winding cycles.
Key features include PLC program control for quick parameter adjustments, operation 3 times faster than manual winding to reduce labor costs, automatic output statistics tracking to eliminate manual counting, and versatile application across various cable and tube types.
Both models require 110/220VAC, 50/60Hz power. HB-W28 uses 500W power, measures 40*80*35cm, and weighs 40kg. HB-W35 uses 800W power, measures 90*60*45cm, and weighs 56kg. They require benchtop or floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
