HB-D35
| Availability: | |
|---|---|
| Quantity: | |

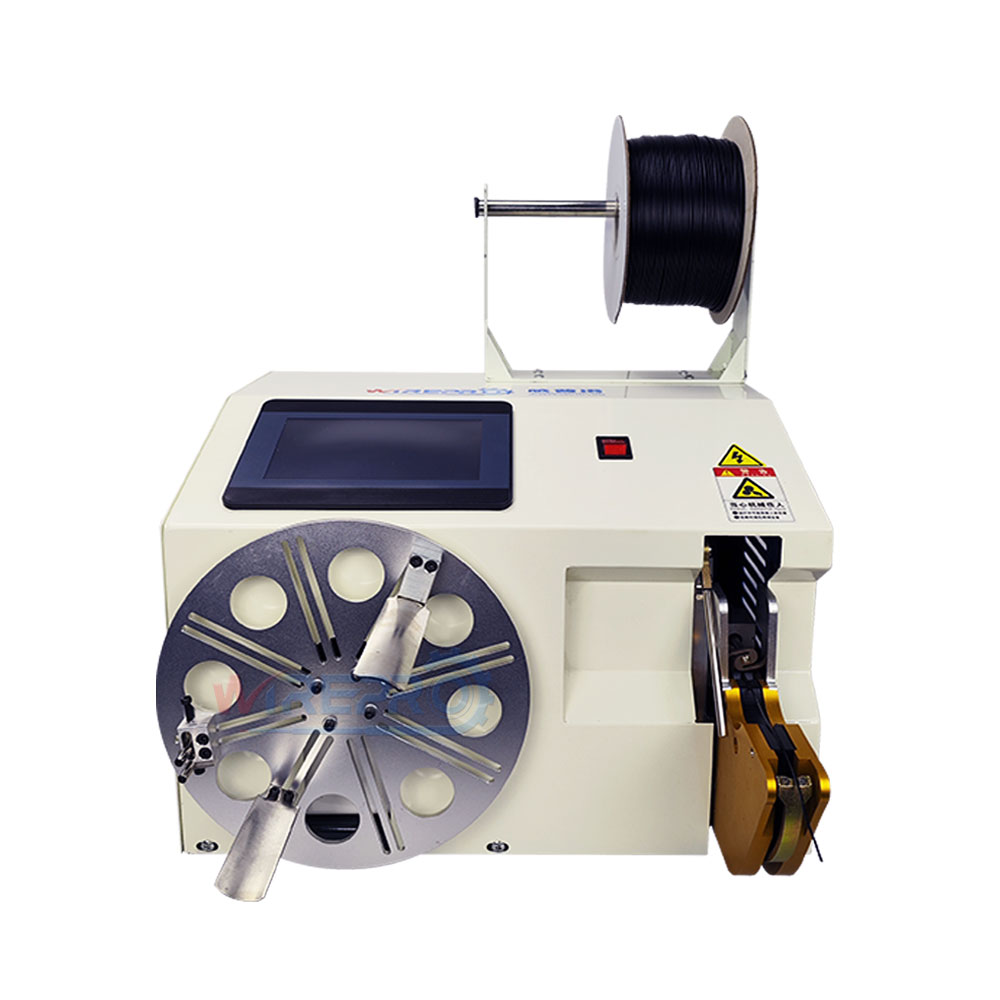

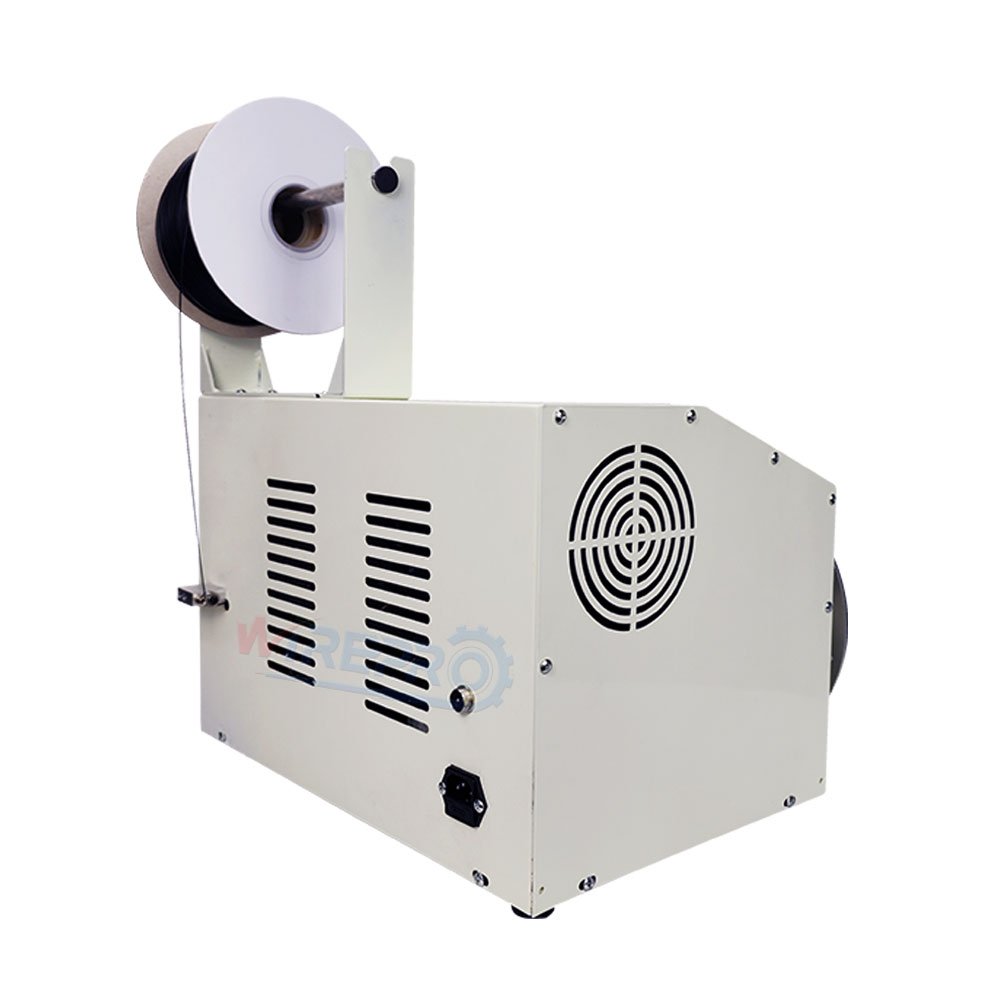

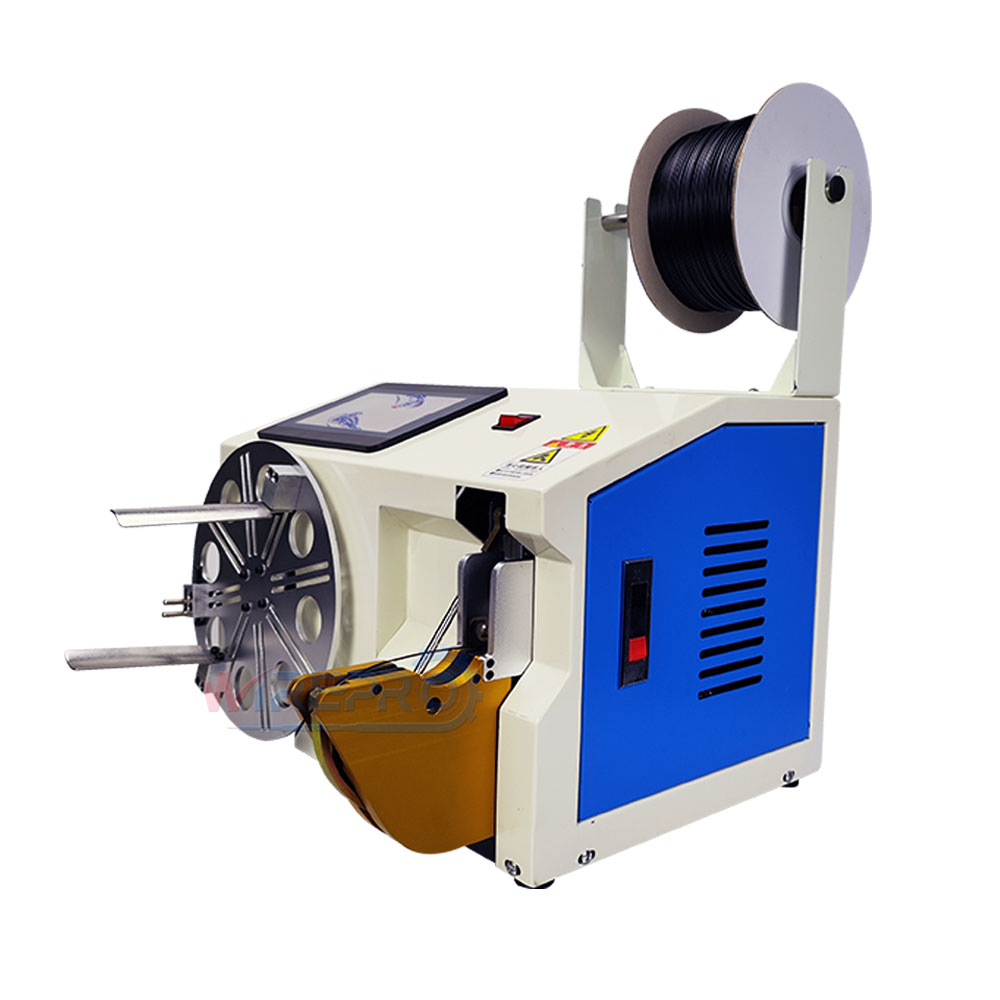

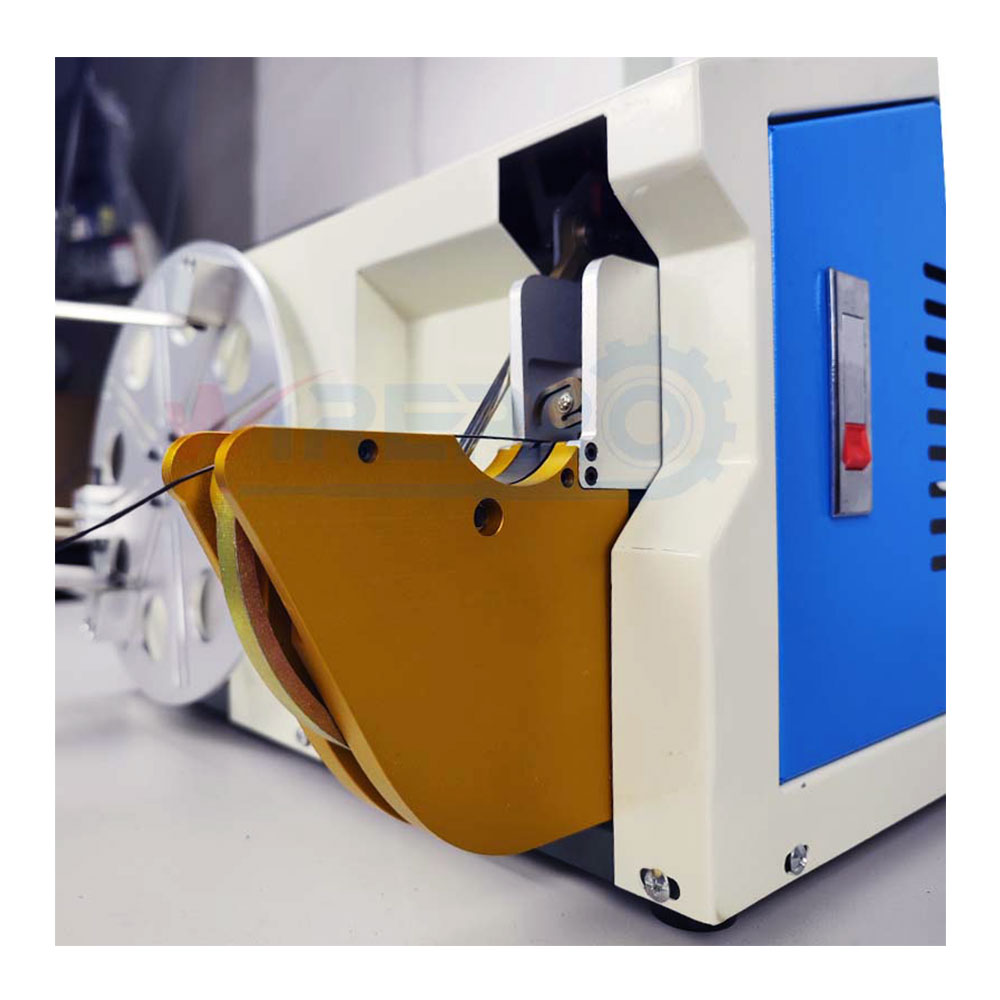

This versatile machine is designed to wind wires into round or figure-8 shapes while automatically cutting and twisting cable ties. It is ideal for bundling AC/DC power cords, USB data cables, video cables, HDMI cables, and other transmission wires.
Features:
1. Advanced Control System: Equipped with stepper motors and a PLC touch screen for precise control of cable tie length.
2. Adjustable Settings: Both the winding speed and winding cycle can be customized to meet specific requirements.
3. Enhanced Efficiency: Significantly improves productivity compared to manual operation.
4. User-Friendly and Cost-Effective: Offers reliable performance, easy operation, and a reasonable price.
This machine is a practical solution for increasing efficiency and consistency in wire bundling tasks.
This versatile machine is designed to wind wires into round or figure-8 shapes while automatically cutting and twisting cable ties. It is ideal for bundling AC/DC power cords, USB data cables, video cables, HDMI cables, and other transmission wires.
Features:
1. Advanced Control System: Equipped with stepper motors and a PLC touch screen for precise control of cable tie length.
2. Adjustable Settings: Both the winding speed and winding cycle can be customized to meet specific requirements.
3. Enhanced Efficiency: Significantly improves productivity compared to manual operation.
4. User-Friendly and Cost-Effective: Offers reliable performance, easy operation, and a reasonable price.
This machine is a practical solution for increasing efficiency and consistency in wire bundling tasks.
| Model | HB-D35 | HB-D45 | HB-D60 |
| Length of 8 Shape | 50-200mm | 50-200mm | 50-200mm |
| (can be adjusted/customized) | (can be adjusted/ customized) | (can be adjusted/ customized) | |
| Dia of Round Shape | Φ50-200mm | Φ50-200mm | Φ50-200mm |
| (can be adjusted/ customized) | (can be adjusted/ customized) | (can be adjusted/ customized) | |
| Winding Speed | Can be set, 30 speed options | Can be set, 30 speed options | Can be set, 30 speed options |
| Number of Windings | Can be set, 1-999 cycles | Can be set, 1-999 cycles | Can be set, 1-999 cycles |
| Bundling Diameter | Φ5-35mm | Φ10-45mm | Φ25-60mm |
| Cable Tie Length | 60-140mm | 110-200mm | 130-260mm |
| Number of Bindings | Can be set, 2-6 cycles is good | Can be set, 2-6 cycles is good | Can be set, 2-6 cycles is good |
| Cable Tie | Plastic or rubber coated iron core wire | Plastic or rubber coated iron core wire | Plastic or rubber coated iron core wire |
| Power Supply | 110/220VAC,50/60Hz | 110/220VAC,50/60Hz | 110/220VAC,50/60Hz |
| Power | 80W | 80W | 80W |
| Dimensions | 32*45*50cm | 32*45*50cm | 32*45*50cm |
| Weight | 32kg | 36kg | 38kg |
| Model | HB-D35 | HB-D45 | HB-D60 |
| Length of 8 Shape | 50-200mm | 50-200mm | 50-200mm |
| (can be adjusted/customized) | (can be adjusted/ customized) | (can be adjusted/ customized) | |
| Dia of Round Shape | Φ50-200mm | Φ50-200mm | Φ50-200mm |
| (can be adjusted/ customized) | (can be adjusted/ customized) | (can be adjusted/ customized) | |
| Winding Speed | Can be set, 30 speed options | Can be set, 30 speed options | Can be set, 30 speed options |
| Number of Windings | Can be set, 1-999 cycles | Can be set, 1-999 cycles | Can be set, 1-999 cycles |
| Bundling Diameter | Φ5-35mm | Φ10-45mm | Φ25-60mm |
| Cable Tie Length | 60-140mm | 110-200mm | 130-260mm |
| Number of Bindings | Can be set, 2-6 cycles is good | Can be set, 2-6 cycles is good | Can be set, 2-6 cycles is good |
| Cable Tie | Plastic or rubber coated iron core wire | Plastic or rubber coated iron core wire | Plastic or rubber coated iron core wire |
| Power Supply | 110/220VAC,50/60Hz | 110/220VAC,50/60Hz | 110/220VAC,50/60Hz |
| Power | 80W | 80W | 80W |
| Dimensions | 32*45*50cm | 32*45*50cm | 32*45*50cm |
| Weight | 32kg | 36kg | 38kg |
Application
Application
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
