HB-B45
| Availability: | |
|---|---|
| Quantity: | |

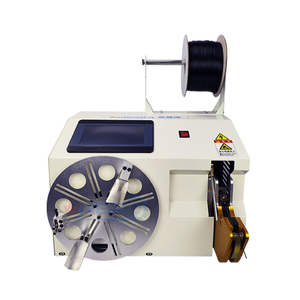

This semi-automatic coiling and tying machine is a versatile solution designed for handling various types of cables and tubes. It is ideal for USB cables, headphone cables, AC/DC power cables, network cables, telephone cables, audio/video cables, HDMI cables, water hoses, rubber tubes, and more.
Operation Steps:
1. Place the wire on the winding port and press the foot pedal to initiate automatic winding.
2. Move the coiled wire to the tying port, where the machine automatically ties it for a neat finish.
Features:
1. User-Friendly Interface: Equipped with an LCD text parameter setting for easy operation.
2. Efficient Motorization: Powered by a stepper motor, simplifying the process and reducing worker effort.
3. Customizable Settings: Allows adjustment of coil count, tie count, and tie length to meet specific requirements.
4. Precision Brake Control: Includes a motor brake system for precise reel turning and stopping, streamlining subsequent operations.
This machine offers an efficient, flexible, and user-friendly solution for coiling and tying various materials, improving productivity and ensuring high-quality results.
| Model | HB-B35 | HB-B45 | HB-B80 |
| Length of 8 Shape | 50-200mm (can be adjusted/customized) | 50-200mm (can be adjusted/customized) | 50-300mm (can be adjusted/customized) |
| Dia of Round Shape | Φ50-200mm (can be adjusted/customized) | Φ50-200mm (can be adjusted/customized) | Φ50-300mm (can be adjusted/customized) |
| Bundling Diameter | Φ8-30mm | Φ18-45mm | Φ40-80mm |
| Cable Tie Length | 75-140mm | 120-200mm | 220-300mm |
| Winding Speed | 1-13 r/s, can be set | ||
| Number of Bindings | Can be set, 2-6 cycles is good | ||
| Cable Tie | Plastic or rubber coated iron core wire | ||
| Power Supply | 110/220VAC,50/60Hz | ||
| Power | ≤200W | ≤250W | ≤300W |
| Dimensions | L48*W43*H35cm | L48*W43*H35cm | L55*W61*H42 cm |
| Weight | 40kg | 42kg | 70kg |
Application
Wire roll, small wire spool winding
The HB-B series is a semi-automatic coiling and tying machine for USB cables, headphone cables, AC/DC power cables, network cables, HDMI cables, hoses, and tubes with two-step operation and automatic tying.
HB-B35: bundling Φ8-30mm, tie length 75-140mm, 40kg. HB-B45: bundling Φ18-45mm, tie length 120-200mm, 42kg. HB-B80: bundling Φ40-80mm, tie length 220-300mm, 70kg.
Key features include two-step winding and tying operation with foot pedal control, LCD parameter setting for coil count/tie count/tie length, stepper motor with precision brake control, and 1-13 r/s adjustable winding speed.
All require 110/220VAC, 50/60Hz. HB-B35/B45: ≤200W/≤250W, L48*W43*H35cm. HB-B80: ≤300W, L55*W61*H42cm. They are benchtop units.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
