HB-AS8
| Availability: | |
|---|---|
| Quantity: | |
Description

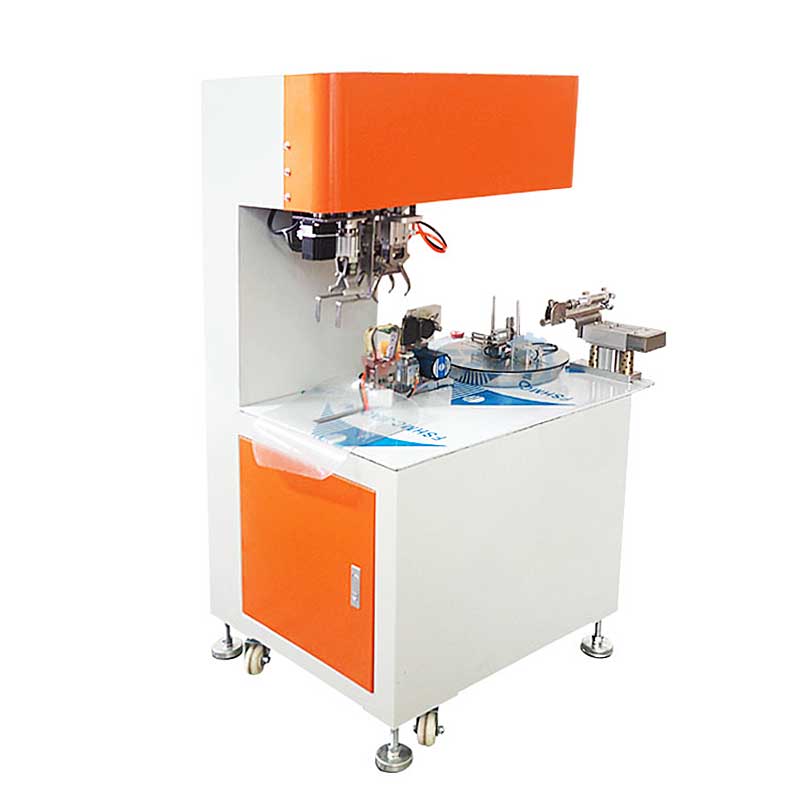

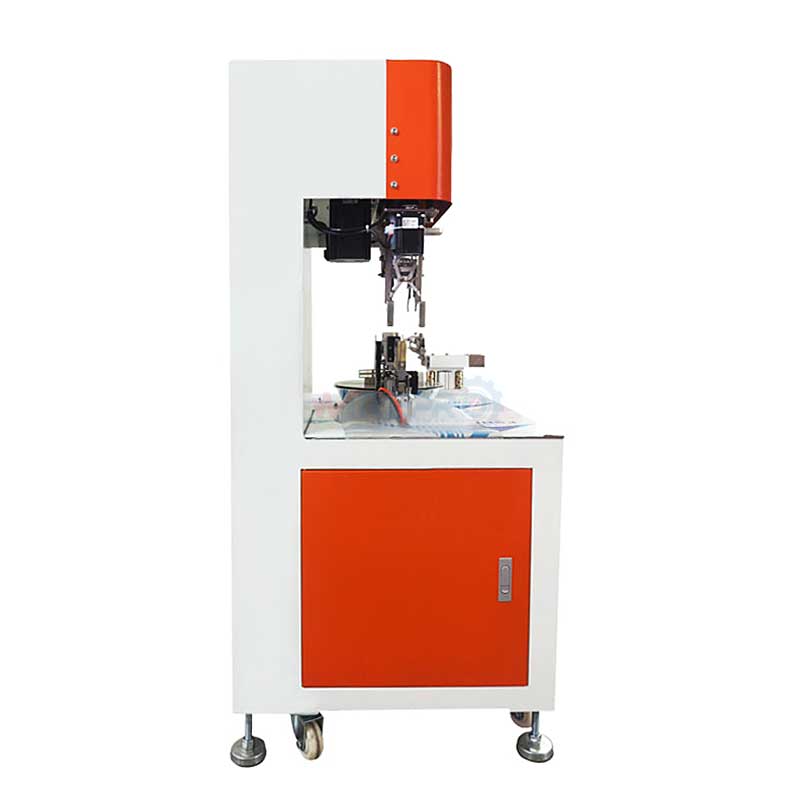

The HB-AS8 is an automatic machine designed for winding various materials into circular coils and securely bundling them in one continuous process. It accommodates a wide range of flexible linear materials, including different types of wires, cables, pipes, cords, and string-like products — offering a versatile solution for coil packaging and finishing operations.
Key Features:
Ergonomic Design – Human-centered engineering reduces operator fatigue, enabling comfortable use over extended working shifts.
High Productivity – Delivers fast cycle speeds of up to 1,200 coils per hour, significantly reducing labor costs and increasing throughput.
Broad Material Compatibility – Adaptable to a diverse range of materials, including wires, cables, tubes, and flexible strings of various sizes and types.
Compact & Easy to Use – Small footprint saves valuable floor space, while intuitive controls simplify operation and minimize training time.
Easy Maintenance – Simple construction allows for quick and convenient maintenance, reducing downtime.
Premium Finished Product – Produces neat, uniform, and well-formed coils with secure, tight bundling that facilitates easy packaging and handling.
Data
| Model | HB-AS8 |
| Finished Coil Type | Circle shape |
| Available Wire Dia | ≤ 10mm |
| Winding Inner Dia | 80-180mm |
| Bundling Diameter | < 45mm |
| Reserved Head Length | ≤ 150mm |
| Reserved Tail Length | ≤ 150mm |
| Tying Wire Materials | Plastic or rubber coated iron core wire |
| Production Rate | ≤ 1200 pcs/h |
| Power Supply | 110/220VAC,50/60Hz |
| Air Connection | 0.4-0.55MPa |
| Dimensions | 110*72 * 160 cm |
| Weight | 120kg |
Application

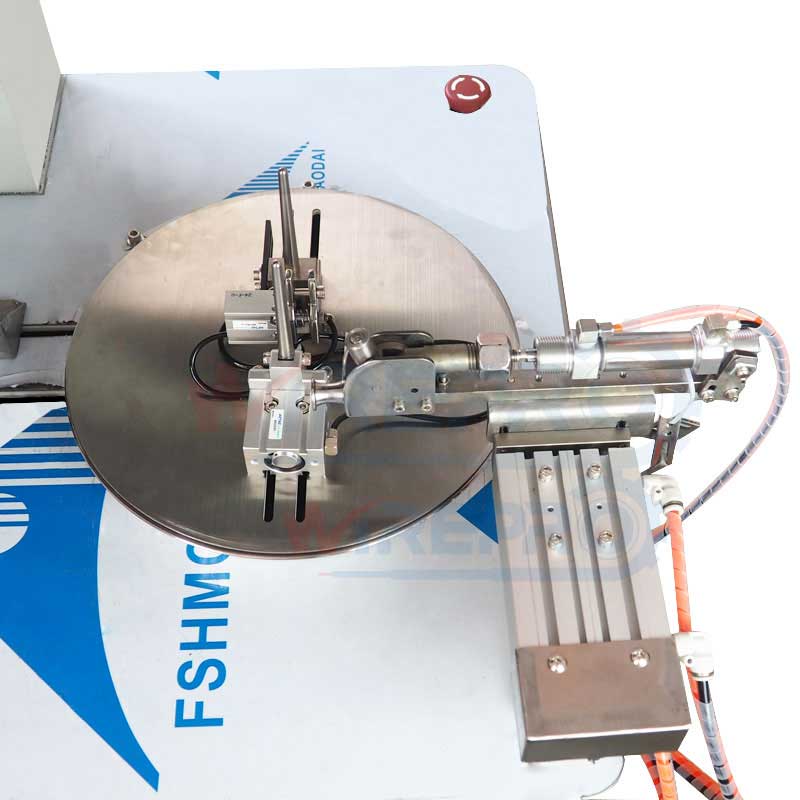

The HB-AS8 is an automatic machine for small 8-shape cable winding and twist binding, producing figure-8 coils for wires, pipes, and strings up to 10mm diameter in various industries.
Wire diameter: ≤10mm. Winding inner diameter: 80-180mm. Bundling diameter:<45mm. Reserve head/tail length: ≤150mm. Production rate: ≤1200 pcs/h. Power: 110/220VAC, 0.4-0.55MPa air. Dimensions: 110*72*160cm, weight: 120kg.

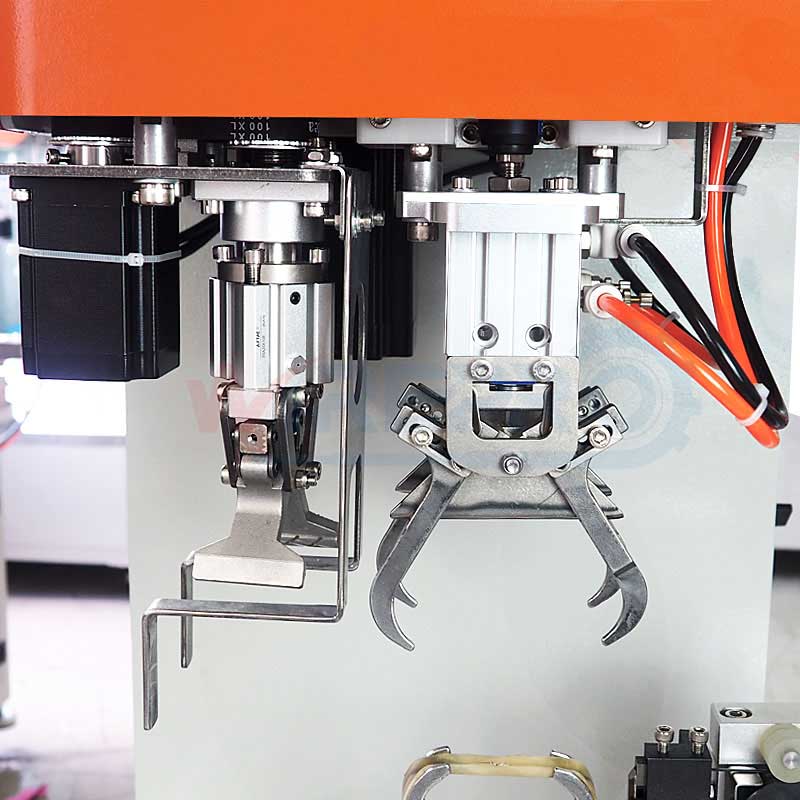

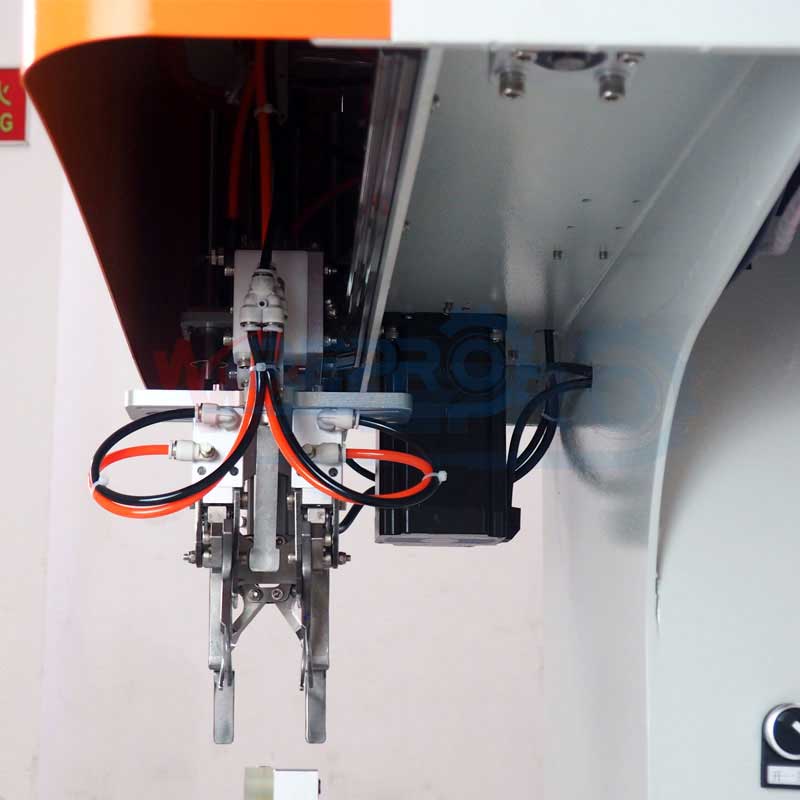

Key features include figure-8 coil shaping, twist binding with cable ties, high-speed processing up to 1200 pieces/hour, versatile compatibility with various materials, and neat, tightly bundled coils for easy packing and transport.
The HB-AS8 requires 110/220VAC, 50/60Hz power and 0.4-0.55MPa air connection. Dimensions: 110*72*160cm, weight: 120kg. Requires dedicated floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
