HB-MF1
| Availability: | |
|---|---|
| Quantity: | |

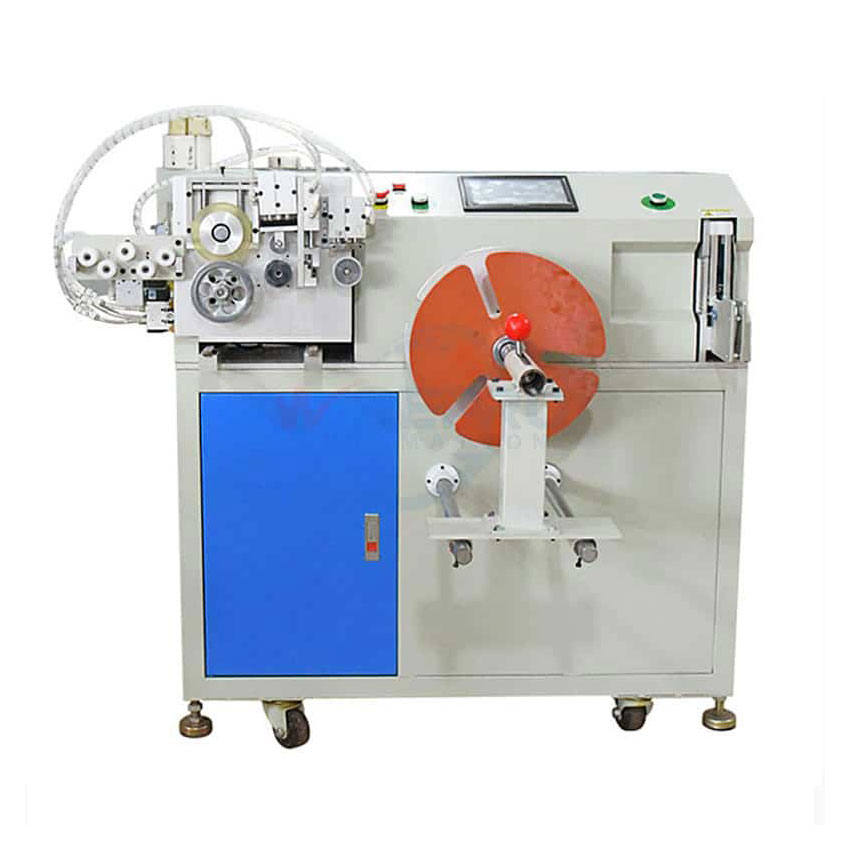

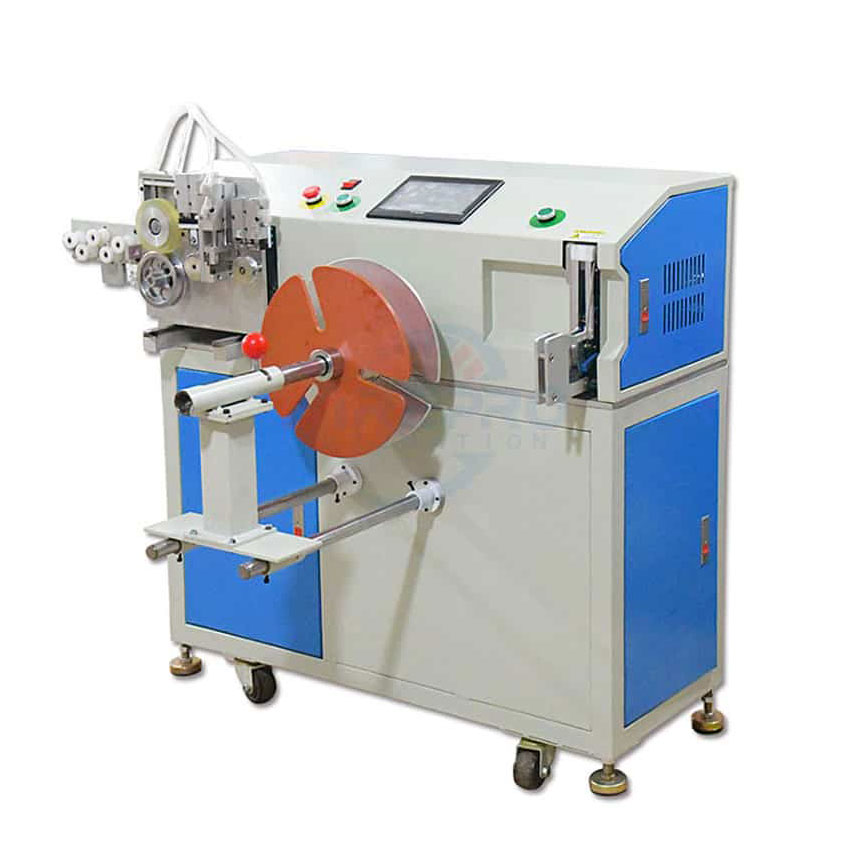

HB-MF1 and HB-MF2 Automatic Wire Metering, Cutting, and Winding Machines
The HB-MF1 and HB-MF2 are fully automated machines designed for precise wire metering, cutting, and winding. The HB-MF1 includes a wire bundling function, while the HB-MF2 is optimized for small spool rewinding without bundling. Both models feature three winding systems for wire roll and wire reel winding, offering a seamless operation. Operators only need to place the wire into the clamp and activate the footswitch, and the machine will automatically perform the cutting and winding process. The wire roll tying function is customizable.
Key Features:
1. Complete Functionality: Includes metering, cutting, and winding, with an optional wire bundling feature for the HB-MF1.
2. Heavy-Duty Capability: Designed to handle heavier coils compared to desk-type machines.
3. Precise Wire Measurement: Provides high accuracy in wire length metering for consistent results.
4. Customizable Settings: Adjust the number of turns and winding speed for flexible and efficient operations.
Model | HB-MF1 | HB-MF2 |
Type | Floor-standing with tying function | Floor-standing no tying function |
Available Wire Size | Φ1-12mm ( can custom) | Φ1-12mm ( can custom) |
Max Coil Weight | 3 kg (Optional 15kgs) | 3 kg (Optional 15kgs) |
Winding Inner Dia | 50-300mm ( can custom) | 50-300mm ( can custom) |
Winding Out Dia | Standard 320mm; Max 350mm | Standard 320mm; Max 350mm |
Winding Speed | 1-13 cycle/s | 1-13 cycle/s |
Bundling Diameter | Φ8-30mm / 18-45mm / 40-80mm | Φ8-30mm / 18-45mm / 40-80mm |
Power Supply | 110/220VAC,50/60Hz | 110/220VAC,50/60Hz |
Power | 500W | 500W |
Dimensions | 100*45*80cm | 80*100*130cm |
Weight | 170 kg | 150 kg |
Application
Wire roll, small wire spool winding
The HB-MF1 is an automatic wire metering, cutting, winding, and bundling machine with three winding systems, designed for precise wire processing with integrated tying function for wire roll and reel applications.
Wire size: Φ1-12mm (customizable). Max coil weight: 3kg (optional 15kg). Winding inner diameter: 50-300mm. Winding speed: 1-13 cycles per second. Bundling diameter options: Φ8-30mm, Φ18-45mm, Φ40-80mm.
HB-MF1 is a floor-standing unit with tying function (bundling), includes winding and bundling. HB-MF2 is a floor-standing unit without tying function, optimized for rewinding only. HB-MF1: 100*45*80cm, 170kg. HB-MF2: 80*100*1030cm, 150kg.
The HB-MF1 requires 110/220VAC, 50/60Hz power (500W) and has dimensions of 100*45*80cm, weighing 170kg. It is a floor-standing unit requiring dedicated floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
