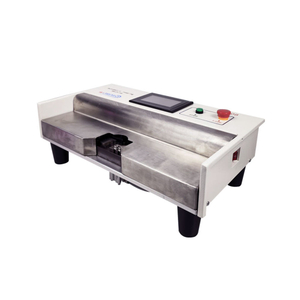

SU-B16
| Availability: | |
|---|---|
| Quantity: | |
This series of machines is designed for cutting, stripping, and bending hard wires. It supports two-wire-end stripping and various bending shapes, making it ideal for applications such as jumper wires for electric control cabinets, bending wires for meter boxes, forward and reverse jumper wires for contactors, and other hard wire processing requirements for table boxes and watch cabinets.
Features:
1. Supports flexible adjustment of bending angles and lengths to meet various processing needs.
2. Ensures excellent bending consistency, eliminating manual operation errors.
3. Fully automatic stripping and bending processes, significantly improving work efficiency.
4. Equipped with Shangyin linear slides and precision pneumatic pressure rollers for enhanced precision and versatile functionality.
This machine provides reliable performance and precision for hard wire processing, helping to streamline production and improve product quality.
| Model | SU-B06 | SU-B16 |
| Conductor Cross-Section | 0.5-6mm² | 0.5-16mm² |
| Stripping Length | 0.1-50mm | Head 0.1-35mm; Tail 0.1-30mm |
| Cutting Length | 0.1-99999.9mm | 0.1-99999.9mm |
| Cutting Length Tolerances | ≤ (0.002xL)mm | ≤ (0.002xL)mm |
| Bend Shape/Angle | Shape U, Z, clockwise, counterclockwise bend, 30°,45°,60° and 90°. | |
| Bending Number | Max 10 Segment | Max 10 Segment |
| Display Screen | Chinese / English touch screen | Chinese / English touch screen |
| Production Rate | 800-1500 pcs/h | 800-1500 pcs/h |
| Power Supply | 110/220VAC, 50/60Hz | 110/220VAC, 50/60Hz |
| Power | 350W | 600W |
| Drive Method | 2 wheels drive | 4 wheels drive |
| Dimensions | 43*38*30cm | 53*47*34cm |
| Weight | 35kgs | 65kgs |
Application
For wire cutting stripping bending
The SU-B16 is an automatic machine that cuts, strips, and bends hard wires up to 16mm². It is used for manufacturing jumper wires for electric control cabinets, meter boxes, contactors, and other applications requiring precise wire bending and stripping.
It processes 0.5-16mm² conductors with stripping lengths up to 35mm (head) and 30mm (tail). Supports U, Z, clockwise, counterclockwise bends at 30°,45°,60°,90°, up to 10 segments. Cutting length: 0.1-99999.9mm with tolerance ≤(0.002*L)mm.
The SU-B16 offers a production rate of 800-1500 pieces per hour. It features a 4-wheel drive system with a Chinese/English touch screen, ensuring consistent bending quality and automated operation.
Key features include flexible bending angle and length adjustments, Shangyin linear slides and precision pneumatic pressure rollers for enhanced accuracy, support for multiple bend shapes (U, Z, clockwise/counterclockwise), and fully automatic stripping and bending in one operation.
The SU-B16 requires 110/220VAC, 50/60Hz power (600W) and has dimensions of 53*47*34cm, weighing 65kg. It is a benchtop unit requiring moderate workspace.
The touch screen allows easy adjustment of cutting length, stripping length, bending angles, and sequence parameters. The machine supports multiple bend shapes and up to 10 segments per wire, with free sample testing offered to optimize settings.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
