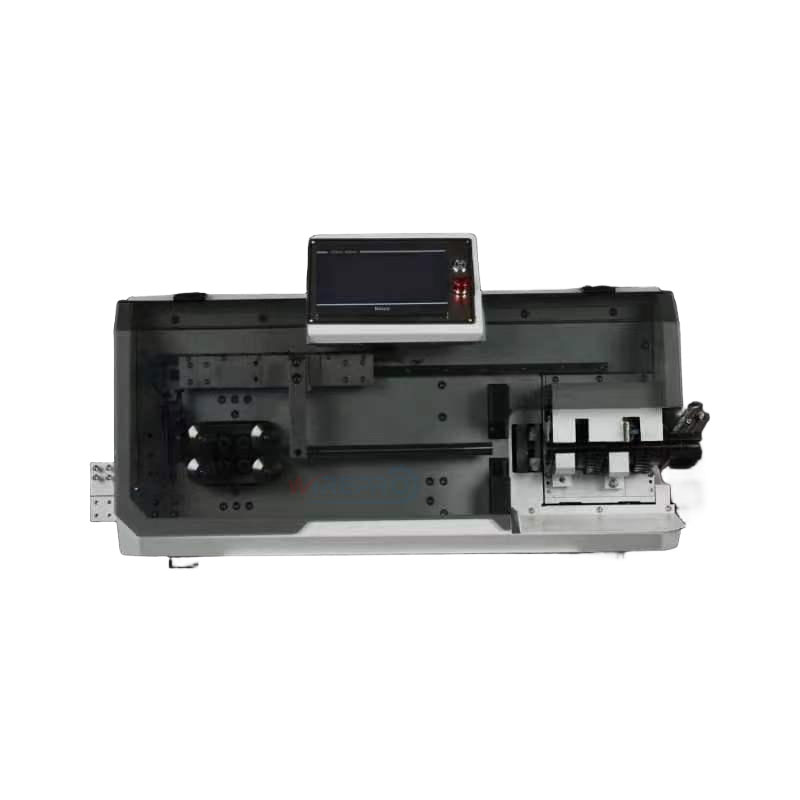

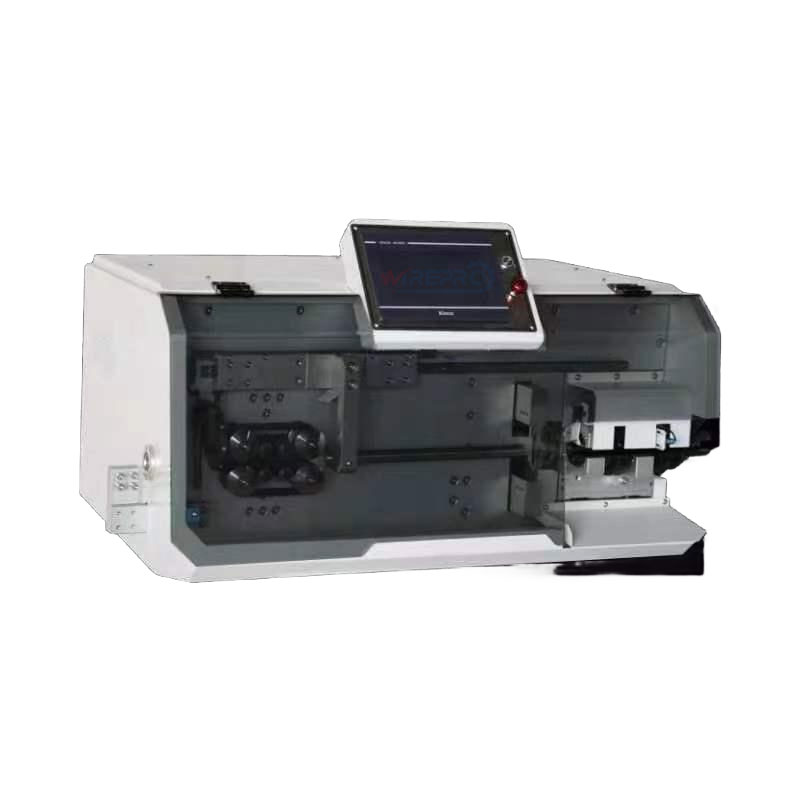

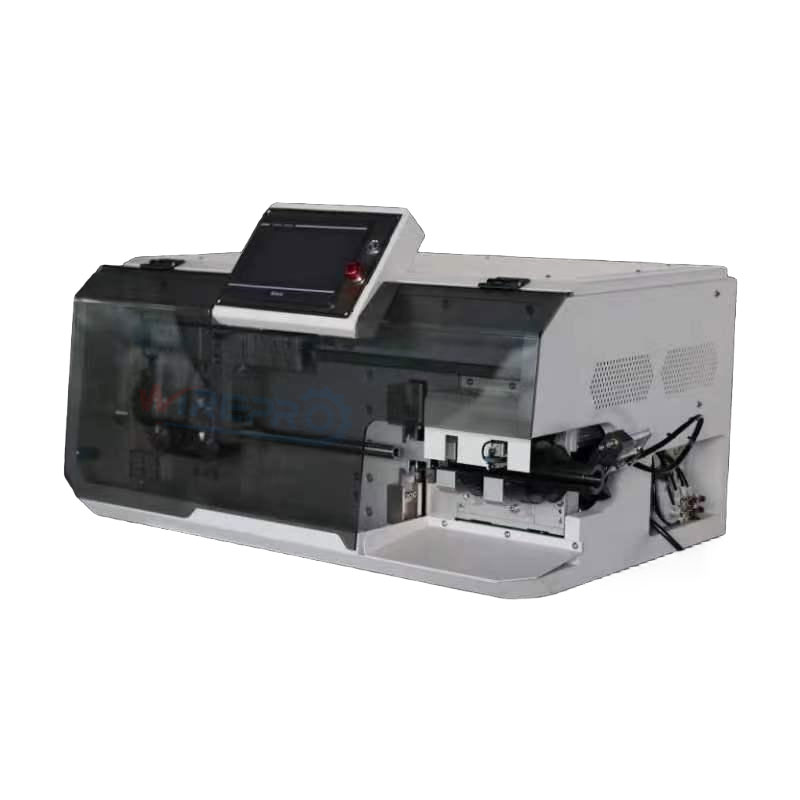

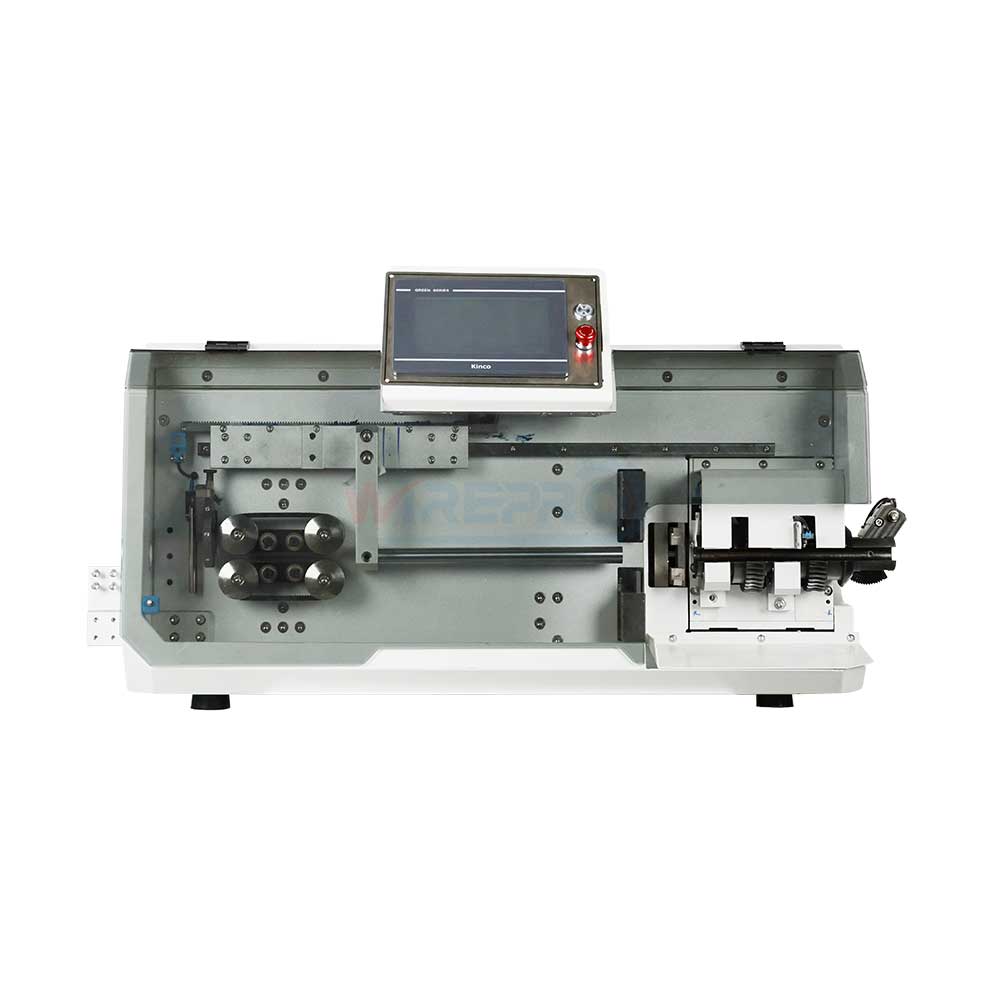

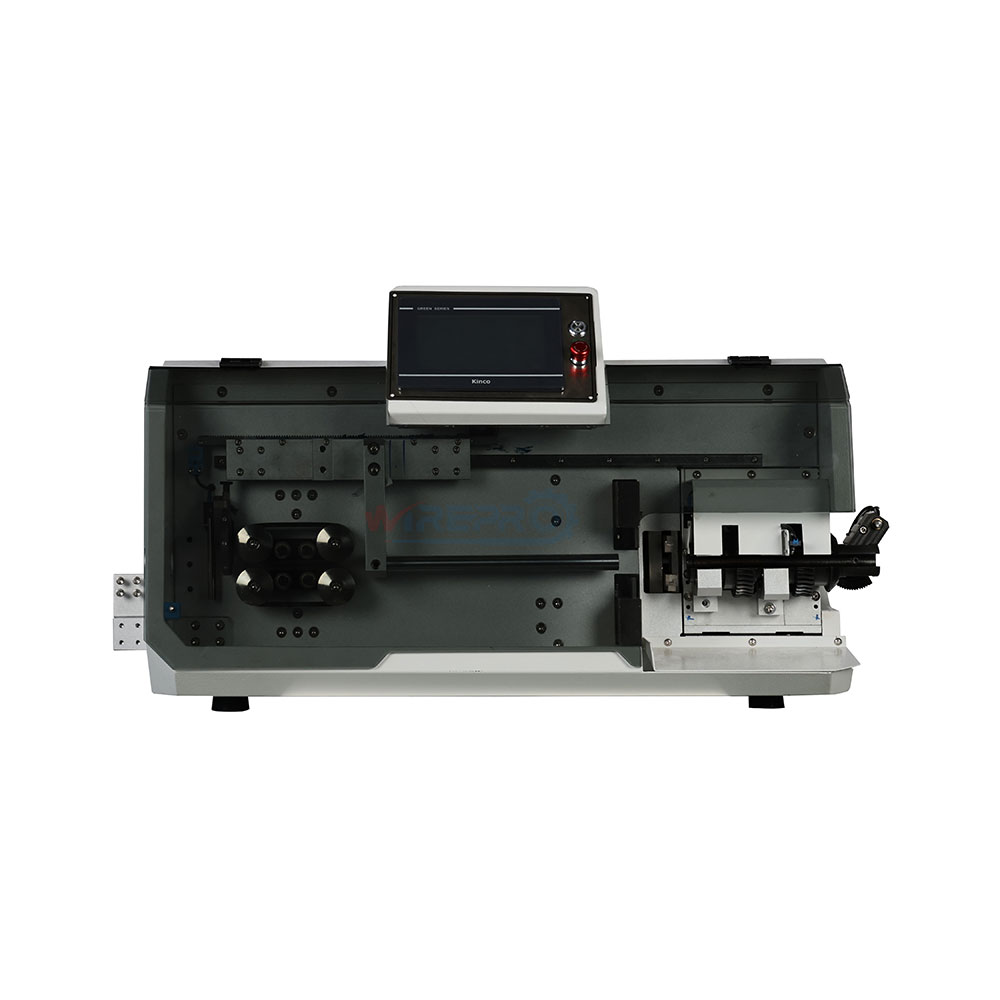

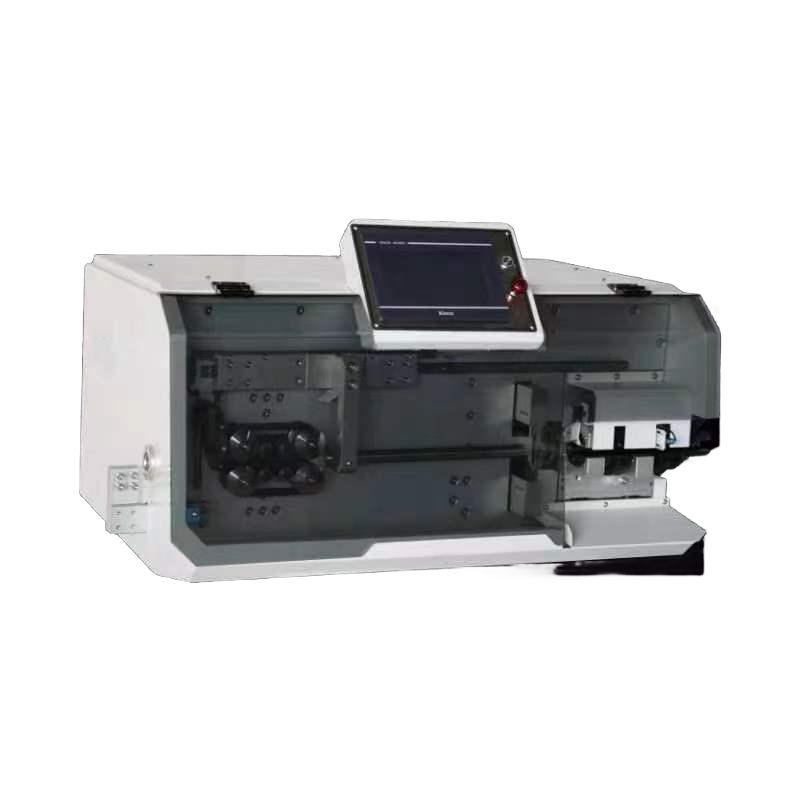

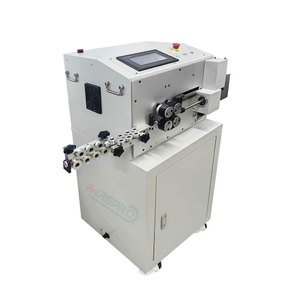

The SU-BA30 series is a fully automatic wire cutting and stripping machine with an added bending function, enabling fully automated wire cutting, stripping, and 3D bending. This series features bending capabilities set in the X, Y, and Z axes, designed to meet most bending needs with a simple and easy-to-use setting method.
Main Features:
Simple and Intuitive Operation – The equipment's wire outlet direction is the X axis, while the bending directions are the vertical Y and Z axes. The bending angle can be freely set to meet diverse bending requirements. The setting logic is straightforward and easy to understand.
Special Stripping Method – Unlike conventional bending machines that strip the wire head and push the wire skin to expose the copper wire at the tail end, this machine cuts and pulls the wire skin separately at the tail end. This design is more suitable for longer wires, avoiding manual processing at the tail end.
User-Friendly System – The 7" color touch screen offers an intuitive operation interface, data storage, and other user-friendly functions.
Modular Design – The modular interface supports future upgrade functions and convenient connection of accessories and peripheral equipment.
Optional Features – Additional options include an MES system, Internet of Things (IoT) system, fixed-point inkjet function, mid-stripping function, external auxiliary equipment alarm, and more.
This machine offers advanced automation and flexibility for various wire processing needs, making it a versatile and efficient solution for the wire harness production industry.
| Model | SU-BA30 |
| Conductor Cross-Section | 0.75 – 30 sqmm |
| Stripping Length | Head ≤ 20mm; Tail ≤ 20mm |
| Cutting Length | 0.1-99999.9mm |
| Tolerances | Cutting Length ±2mm |
| Bend Direction | X+/X-, Y+/Y-, Z+/Z- |
| Bend Angle | Any Angle |
| Conduit Diameter | Φ14mm |
| Drive Method | 8-wheel drive, Feeding stepper motor, tool holder servo motor |
| Display Screen | Chinese / English touchscreen |
| Production Rate | 50-300 pcs/h, based on the final shape |
| Power Supply | 110/220VAC, 50/60Hz |
| Air connection | 0.5Mpa-0.85Mpa |
| Dimensions | 60*48*55cm |
| Weight | 120kgs |
3D wire cutting, stripping, and bending
Complex harness forming
Automated wire processing with MES/IoT integration
The SU-BA30 is a fully automatic machine for cutting, stripping, and 3D bending of wires from 0.75-30mm², featuring X, Y, and Z axes for flexible bending configurations in wire harness production.
Conductor cross-section: 0.75-30mm². Stripping length: head/tail ≤20mm. Cutting length: 0.1-99999.9mm with tolerance ±2mm. Bend direction: X+/X-, Y+/Y-, Z+/Z- at any angle. Conduit diameter: Φ14mm. Production rate: 50-300pcs/h. Power: 110/220VAC. Dimensions: 60*48*55cm, weight: 120kg.
Key features include X/Y/Z axis 3D bending at any angle, special stripping method that cuts and pulls wire skin separately at the tail end (suitable for longer wires), 7-inch color touch screen, modular design for future upgrades, and optional MES/IoT integration.
The SU-BA30 requires 110/220VAC, 50/60Hz power and 0.5-0.85MPa air connection. Dimensions: 60*48*55cm, weight: 120kg. It is a floor-standing unit requiring dedicated floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
