PB-030
| Availability: | |
|---|---|
| Quantity: | |

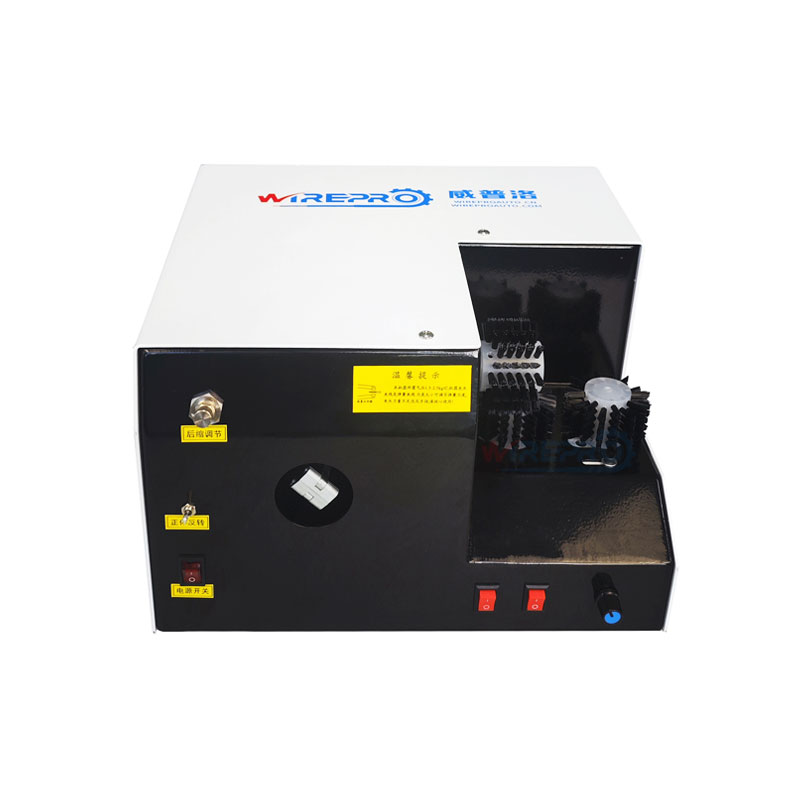

This brushing machine is designed for processing braided shielding cables and is compatible with various ground cables, braided cables, and shielded wires.
Key Features:
1. Versatile Usage: Suitable for brushing shielded wires and data line shielded cables. Offers straight brushing for easier post-processing, with options for copper wire or nylon brush plates.
2. Adjustable Brush Rollers: Easily adaptable for different wire sizes by adjusting the distance between the brush rollers.
3. Dual Functionality: Capable of brushing and twisting the cable’s braided shield layer simultaneously, increasing efficiency.
4. Portable Design: Compact, lightweight, and aesthetically pleasing, making it easy to handle and transport.
Model | PB-030 |
Brushing wire diameter range | 0.1-10 mm |
Wire cross section range | 0.1-2 mm2 |
Brushing length | 1 – 50mm (up to 60-80mm depending on net material) |
Twisting length | 5 – 50mm (others customizable ) |
Twisting speed | 1400 circle/s |
Brushing motor | 3000 circle/s |
Power supply | AC220V 50Hz |
Power | 40W |
Dimension | 320*310*200mm |
Weight | 13kg |
Application
The PB-030 is a machine for processing braided shielding cables, performing brushing and twisting of shielded wire braids simultaneously for ground cables, braided cables, and shielded wires.
Brushing wire diameter: 0.1-10mm. Brushing length: 1-50mm (up to 60-80mm depending on material). Twisting length: 5-50mm. Twisting speed: 1400 cycles/s. Brushing motor: 3000 cycles/s. Power: AC220V, 40W. Dimensions: 320*310*200mm, weight: 13kg.
Key features include dual brushing and twisting functionality in one operation, adjustable brush rollers for different wire sizes, options for copper wire or nylon brush plates, and compact portable design.
The PB-030 requires AC220V, 50Hz power (40W) and has dimensions of 320*310*200mm, weighing 13kg. It is a compact benchtop unit.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
