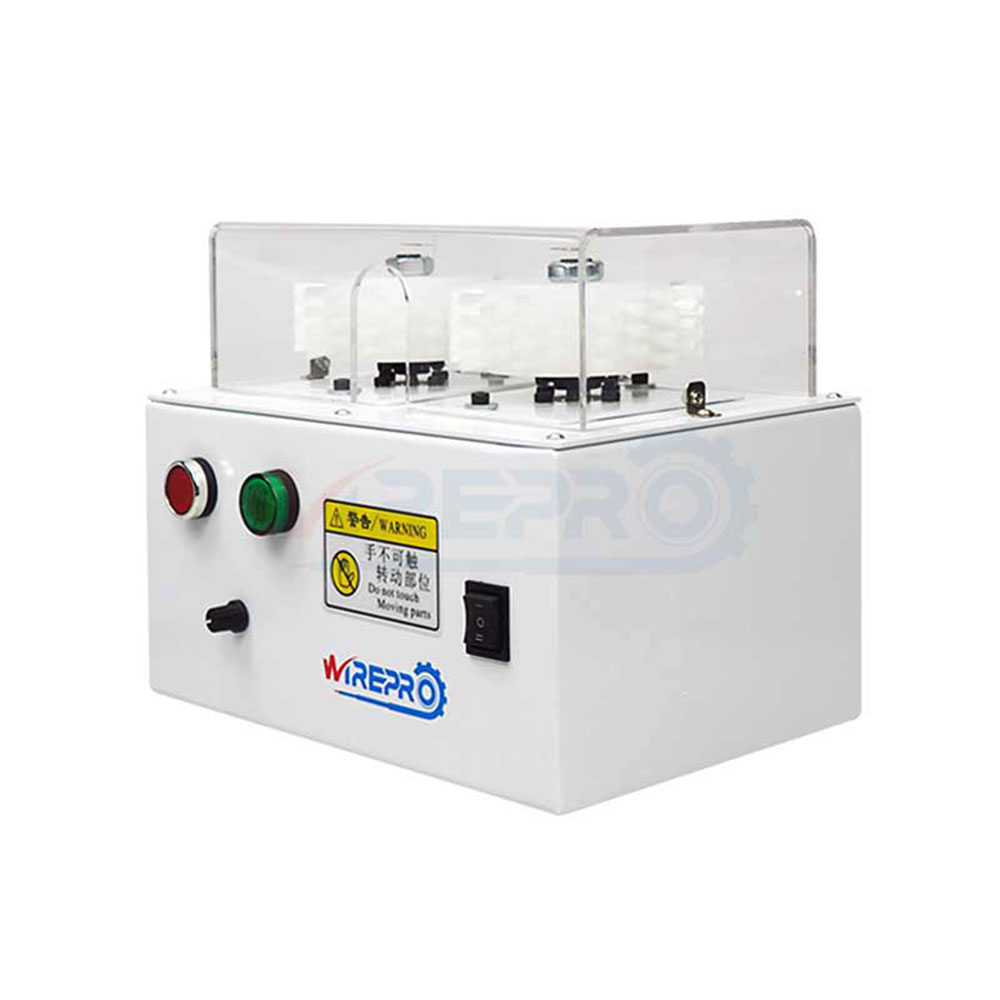

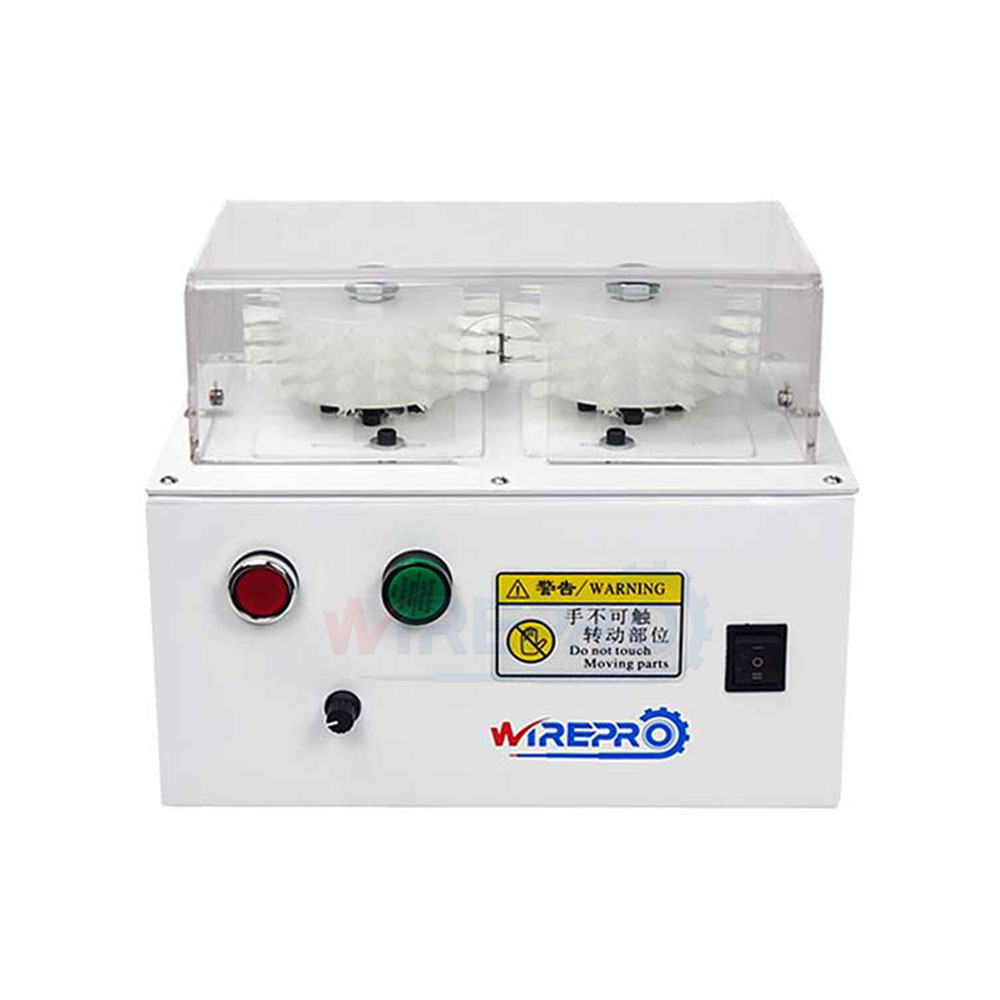

Cable Shield Disentangling Machine – Efficient and Easy-to-Use Solution
This machine is specifically designed for disentangling the shield layer of cables, offering versatile functionality and user-friendly operation.
Key Features:

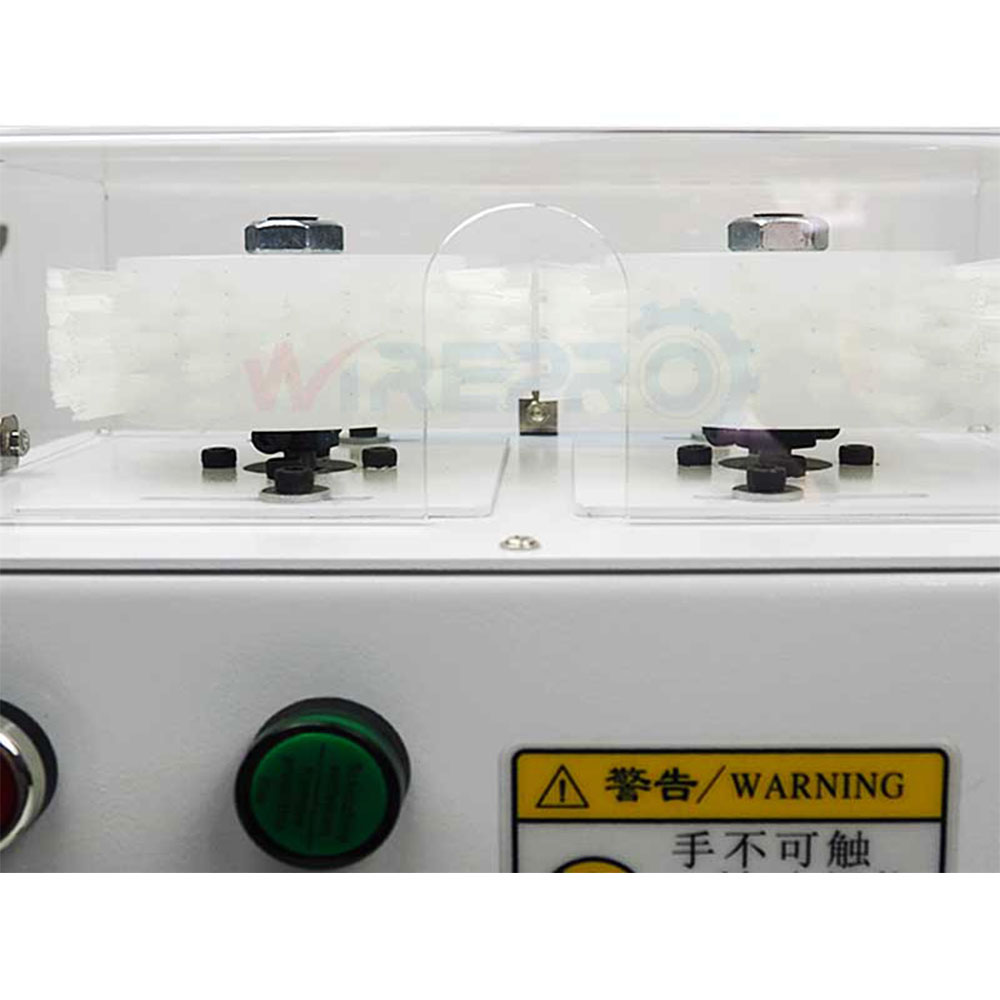

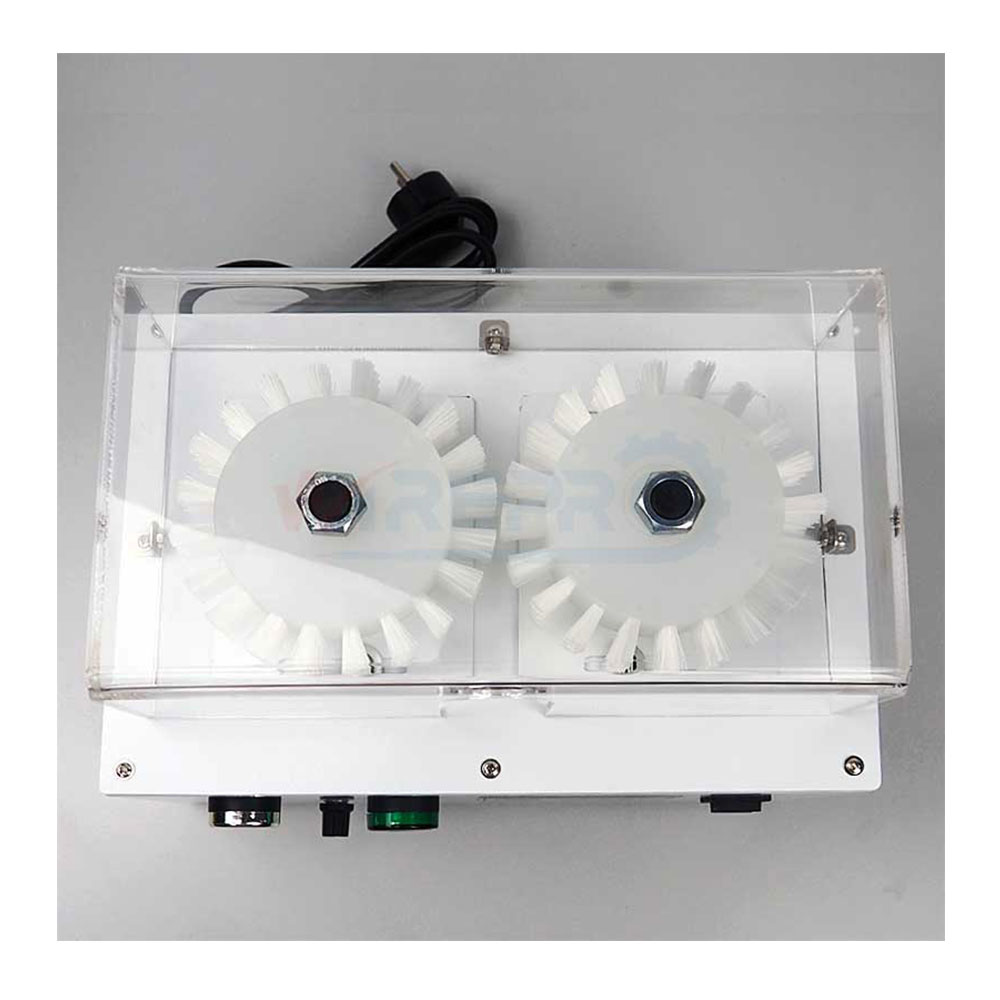

1. Adjustable Brush Rollers: Allows precise adjustments to accommodate various cable diameters, ensuring compatibility with a wide range of cables.
2. Shield Net Flipping Function: A convenient reverse rotation feature flips the shielding net to the backside, simplifying the process. Place the cable while rotating to achieve this.
3. Compact and Simple Design: Small size and easy operation significantly reduce time and labor costs.
Brush Options:
1. Copper Wire Brush: Ideal for small-diameter wires and shielding nets with aluminum foil, depending on the wire material.
2. Nylon Brush: Suitable for all wire materials with minimal risk of damage, though it may wear out faster. Adjusting speed appropriately can extend the brush wheel’s lifespan.
Model | PB-050 |
Brushing wire range | Dia 1-25 mm |
Brushing speed | 0-1800circle/min(adjustable) |
Brushing length | 5 – 50mm ( max 90mm depending on net material) |
Speed | About 3-10s/piece (depending on net material and length) |
Brushing motor | 3000 circle/s |
Power supply | AC220V 50Hz |
Power | 100W |
Dimension | 32*22*26cm |
Weight | 15kgs |
Application
The PB-050 is a machine for disentangling the shield layer of cables with adjustable brush rollers for various cable diameters, featuring shield net flipping function and compact design.
Brushing wire range: 1-25mm diameter. Brushing speed: 0-1800 cycles/min (adjustable). Brushing length: 5-50mm (max 90mm depending on material). Speed: about 3-10s/piece. Power: AC220V, 100W. Dimensions: 32*22*26cm, weight: 15kg.
Copper wire brush: ideal for small-diameter wires and shielding nets with aluminum foil. Nylon brush: suitable for all wire materials with minimal damage risk but may wear faster; adjust speed to extend brush wheel lifespan.
Key features include adjustable brush rollers for precise cable diameter accommodation, shield net flipping function with reverse rotation for easy processing, compact simple design, and adjustable brushing speed.

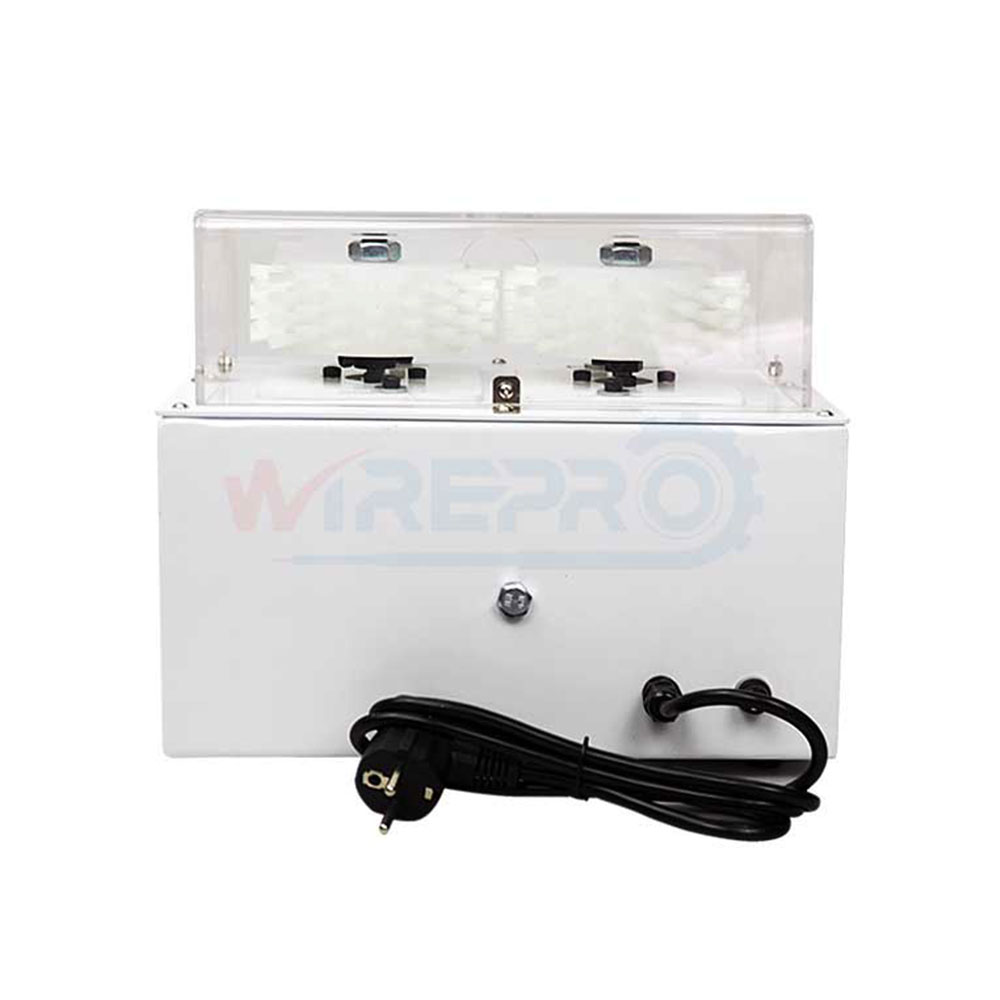

The PB-050 requires AC220V, 50Hz power (100W) and has dimensions of 32*22*26cm, weighing 15kg. It is a compact benchtop unit.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
