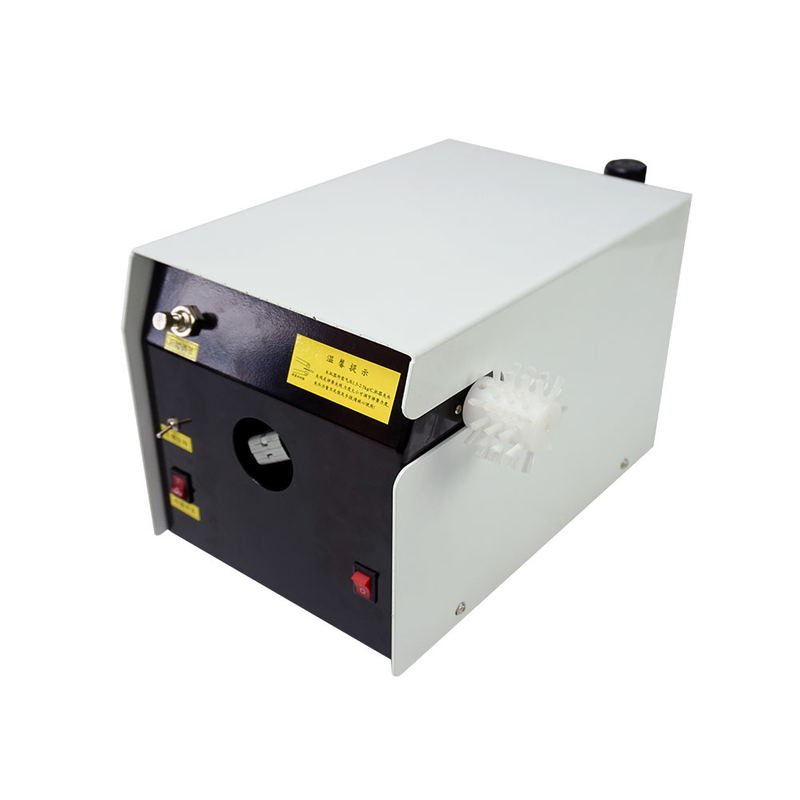

PB-020
| Availability: | |
|---|---|
| Quantity: | |
This machine is designed for brushing shielding nets to one side and twisting wires efficiently. It handles various ground wires, braided wires, and isolation wires, providing a fully automated alternative to manual labor.
Key Features:
1. User-Friendly Operation: Simply connect the air source to open the gripping hand automatically. Place the wire in position and lightly press the footswitch to complete the twisting process effortlessly.
2. Adaptable for Different Wire Diameters: No need to adjust the clamping tension manually when working with wires of varying diameters.
3. Exposed Gripper Design: The automatic gripper’s open design ensures scattered copper wires are easy to place, streamlining the operation.
4. Adjustable Chuck Opening: Customize the chuck size by loosening the chuck spindle screw, moving it toward the motor to expand, or adjusting in the opposite direction to reduce the size.
5. Enhanced Clamping Force: Increase the chuck's clamping strength by using up to 5–6 springs for secure and efficient wire twisting.
Model | PB-020 |
Brushing wire range | 0.1-10 mm |
Wire range | 0.1-2 mm2 |
Brushing length | 1 – 60mm(up to 80-100mm depending on net material) |
Twisting length | 5—80mm (150mm customizable ) |
Twisting speed | 1400 circle/s |
Brushing motor | 3000 circle/s |
Power supply | AC220V 50Hz |
Power | 10W |
Dimension | 340*190*170mm |
Weight | 12kgs |
Application
The PB-020 is a machine for brushing shielding nets to one side and twisting wires, handling ground wires, braided wires, and isolation wires with footswitch-controlled automated operation.
Brushing wire range: 0.1-10mm. Brushing length: 1-60mm (up to 80-100mm depending on material). Twisting length: 5-80mm (150mm customizable). Twisting speed: 1400 cycles/s. Brushing motor: 3000 cycles/s. Power: AC220V, 10W. Dimensions: 340*190*170mm, weight: 12kg.
Key features include adaptable wire diameter handling without manual tension adjustment, exposed gripper design for easy copper wire placement, adjustable chuck opening, enhanced clamping force with up to 5-6 springs, and compact lightweight design.
The PB-020 requires AC220V, 50Hz power (10W) and has dimensions of 340*190*170mm, weighing 12kg. It is a compact benchtop unit.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
