HW-HD35-A
| Availability: | |
|---|---|
| Quantity: | |
Description

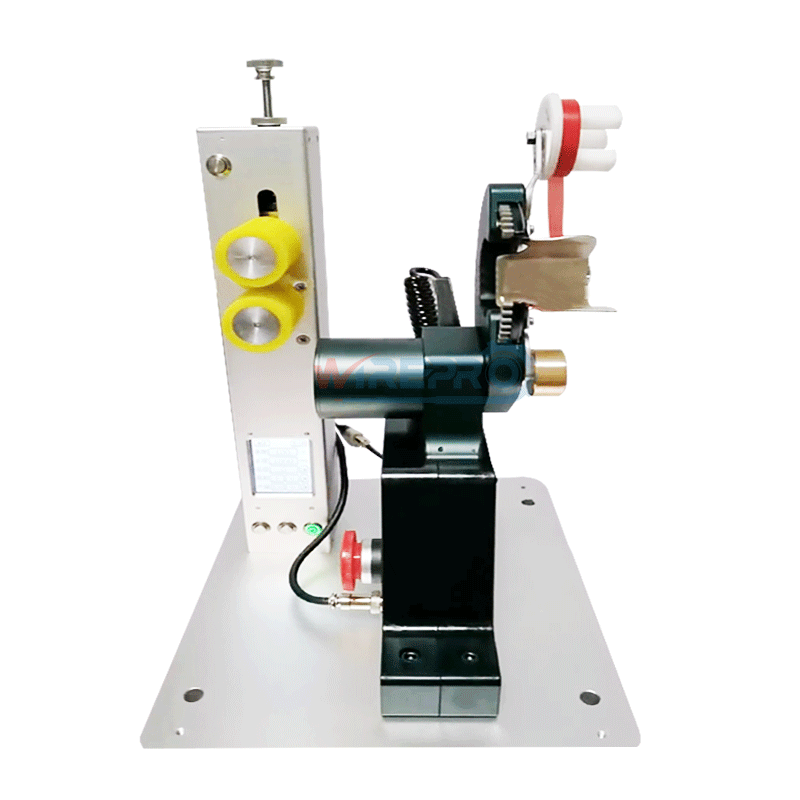

The HW-HD35-A is an upgraded version of the HW-HD35, adding a wire traction frame that supports the wire and pulls it forward automatically. This makes it exceptionally well-suited for taping long wire harnesses. During the tape winding process, the operator does not need to perform any manual work, significantly reducing labor intensity and improving consistency.
The traction frame offers three working modes: fully automatic, semi-automatic, and manual, providing flexibility for different production requirements. The following parameters can be set on the traction frame:
Total taping length
Winding speed
Output quantity
Number of tape wrapping layers (capable of wrapping back and forth for hard materials)
The HW-HD35-A supports both continuous and spot taping of wire harnesses, making it a versatile solution for harness finishing operations.
Key Features:
Integrated Traction Frame – Supports and pulls the wire forward automatically, ideal for long harness taping without operator intervention.
Three Working Modes – Fully automatic, semi-automatic, and manual modes for flexible production.
Programmable Parameters – Set total taping length, winding speed, output quantity, and number of wrapping layers.
Multi-Layer Wrapping – Capable of wrapping back and forth, suitable for hard materials requiring multiple layers.
Continuous & Spot Taping – Supports both wrapping styles to meet different harness requirements.
Desk-Type Compact Design – Space-saving benchtop configuration suitable for any workshop or production line.
Optional Battery Power – Available with battery power option for greater placement flexibility.
| Model | HW-HD35 | HW-HD55 |
| Features | Desktop | Desktop, big diameter |
| Available Wire Dia | Φ5-35mm (others need to test) | Φ5-55mm (others need to test) |
| Tape Width | 5-25mm (There are recommended tape widths for different wire diameters) | |
| Tape Roll OD | Recommend less than Φ90mm, Max Φ105mm | Recommend less than Φ110mm, Max Φ125mm |
| Wrapping Speed | Manual control | |
| Power Supply | 110/220VAC, 50/60Hz Optional battery power | |
| Dimensions | 25*30*35cm | 25*30*38cm |
| Weight | 8kg | 10kg |
The HW-HD35-A is an upgraded desk-type harness taping machine with a wire traction frame that supports and pulls the wire forward, ideal for taping long wire harnesses with minimal operator intervention.
Available wire diameter: Φ5-35mm (others need testing). Tape width: 5-25mm. Tape roll OD: recommended <Φ90mm, max Φ105mm. Wrapping speed: manual control. Power: 110/220VAC, 50/60Hz with optional battery. Dimensions: 25*30*35cm, weight: 8kg.
Key upgrade is the wire traction frame with 3 working modes (fully automatic, semi-automatic, manual). Settable parameters include total taping length, winding speed, output quantity, and tape wrapping layers for hard materials with back-and-forth wrapping.
The HW-HD35-A operates on 110/220VAC, 50/60Hz with optional battery power. Dimensions: 25*30*35cm, weight: 8kg. It is a compact benchtop unit.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
