HB-C10
| Availability: | |
|---|---|
| Quantity: | |

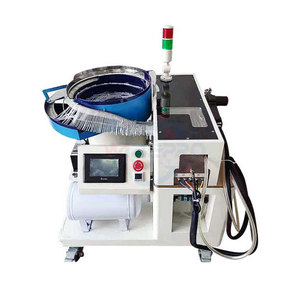

The automatic cable bundling machine uses nylon cable ties to efficiently bind wire harnesses. Equipped with a vibration plate for continuous feeding of cable ties, the operator simply places the wire harness in position and presses the footswitch. The machine handles the rest automatically.
Features:
1. PLC Touch Screen Control: User-friendly interface with clear, intuitive operation and excellent stability.
2. Automatic Feeding System: Bulk feeding of nylon cable ties eliminates the need for manual loading.
3. High Efficiency: Automatically locks and cuts cable ties, achieving a speed of 1500–2000 pcs/hour, enhancing productivity by at least four times.
4. Wide Adaptability: Suitable for binding various linear or circular products with diameters over 30mm, and tying perimeters ranging from 3–50mm.
5. Adjustable Elastic Tension: Digital touch screen control for precise adjustment of cable tie tension and length.
This machine is the perfect solution for automating cable bundling, reducing labor costs, and improving operational efficiency.
The automatic cable bundling machine uses nylon cable ties to efficiently bind wire harnesses. Equipped with a vibration plate for continuous feeding of cable ties, the operator simply places the wire harness in position and presses the footswitch. The machine handles the rest automatically.
Features:
1. PLC Touch Screen Control: User-friendly interface with clear, intuitive operation and excellent stability.
2. Automatic Feeding System: Bulk feeding of nylon cable ties eliminates the need for manual loading.
3. High Efficiency: Automatically locks and cuts cable ties, achieving a speed of 1500–2000 pcs/hour, enhancing productivity by at least four times.
4. Wide Adaptability: Suitable for binding various linear or circular products with diameters over 30mm, and tying perimeters ranging from 3–50mm.
5. Adjustable Elastic Tension: Digital touch screen control for precise adjustment of cable tie tension and length.
This machine is the perfect solution for automating cable bundling, reducing labor costs, and improving operational efficiency.
Model | HB-C10 |
Cable tie length | 80/100/120/150 mm (can be customized) |
Cable tie width | 3 – 5 mm |
Tying Diameter | 2 – 30 mm (can be customized) |
Tail length | 0 – 3mm |
Production speed | about 2000pcs/hour based on operation speed |
Power Supply | 110/220VAC,50/60Hz |
Power | 700W |
Dimensions | 650 * 650 * 720 mm |
Weight | 130kgs |
Model | HB-C10 |
Cable tie length | 80/100/120/150 mm (can be customized) |
Cable tie width | 3 – 5 mm |
Tying Diameter | 2 – 30 mm (can be customized) |
Tail length | 0 – 3mm |
Production speed | about 2000pcs/hour based on operation speed |
Power Supply | 110/220VAC,50/60Hz |
Power | 700W |
Dimensions | 650 * 650 * 720 mm |
Weight | 130kgs |
Application
Widely used in electronics factories, wiring harness, cables, electronics, toys, gifts, food, and other industries bundled TVs, computers and other internal electrical connections, lighting fixtures, motors, electronic toys, and other products in fixed circuits, mechanical equipment oil pipelines fixed, ship cables fixed.
And it’s good to bundle with other objects, and can also be used for strapping items such as wire, air-conditioning capillaries, toys, daily necessities, agriculture, gardening, and handicrafts.
It completely solves the low cable ties productivity, employment difficult problem.
Application
Widely used in electronics factories, wiring harness, cables, electronics, toys, gifts, food, and other industries bundled TVs, computers and other internal electrical connections, lighting fixtures, motors, electronic toys, and other products in fixed circuits, mechanical equipment oil pipelines fixed, ship cables fixed.
And it’s good to bundle with other objects, and can also be used for strapping items such as wire, air-conditioning capillaries, toys, daily necessities, agriculture, gardening, and handicrafts.
It completely solves the low cable ties productivity, employment difficult problem.
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
