TA-DW2
| Availability: | |
|---|---|
| Quantity: | |
1. The machine first loads the wire seal and then strips the rubber jacket, effectively preventing bad pressing and fillet issues on the copper wire.
2. Supports cutting, stripping, and crimping on both wire ends, with one end capable of loading wire seals.
3. Optional pressure induction system can be installed for precise crimping results.
4. Parameters such as wire cutting length, stripping length, and glue depth are controlled via a touch screen interface, which is user-friendly and easy to master with minimal training.
5. Compatible with interchangeable applicators that can be quickly replaced for enhanced efficiency.
6. The conveyor belt table length can be customized to meet specific production requirements.
Data
Application
Wire seal insertion, cutting, stripping, and terminal crimping.

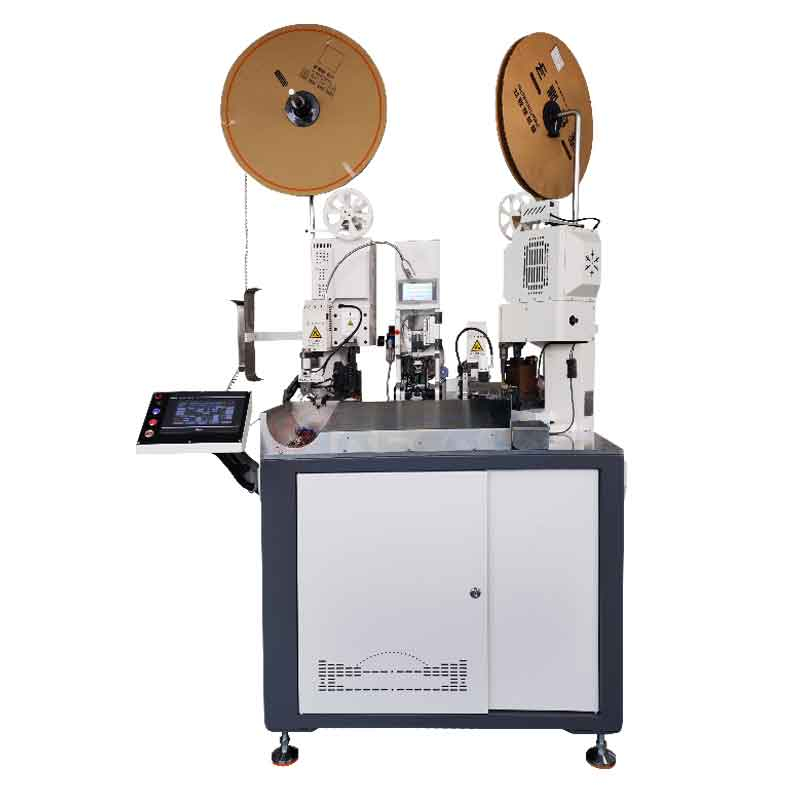

The TA-DW2 is a machine that performs wire seal loading, cutting, stripping, and terminal crimping on both wire ends, with one end supporting wire seal insertion. It is designed for wire harness production requiring Superseal-style waterproof seals.
The machine performs cutting, stripping, and crimping on both wire ends, with one end supporting wire seal loading. It loads the seal before stripping to prevent bad pressing and fillet issues on copper wire.
Key features include sequential wire seal loading before stripping to prevent copper wire damage, touch screen control for parameter settings, quick-change applicators for different terminals, optional pressure induction system, and customizable conveyor belt length.
Parameters such as wire cutting length, stripping length, and glue depth are controlled via the touch screen interface, making the machine user-friendly and easy to master with minimal training.
Specific power and dimension details are not provided on the page. Please contact Wirepro directly for detailed installation specifications based on your configuration and production requirements.
The machine supports quick-change applicators for different terminals, improving efficiency. The conveyor belt table length can also be customized to suit various production requirements.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
