TU-P03
| Availability: | |
|---|---|
| Quantity: | |
Description

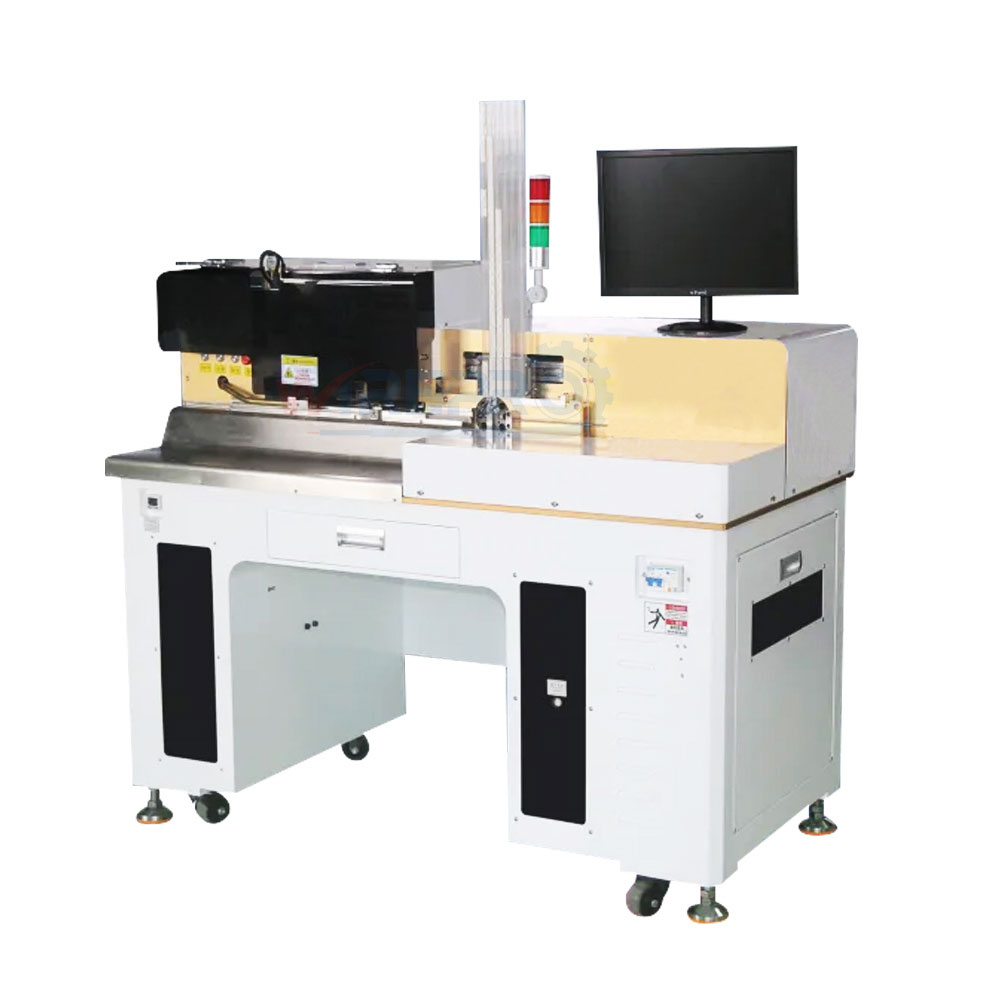

The TU-P03 is an IDC connector piercing-type terminal crimping machine featuring Mitsubishi servo motor stamping with precise pressure control. It includes a KINCO 7-inch color touchscreen, Airtac/SMC cylinders, German FESTO solenoid valves, and Taiwan Hiwin screw rod slide rails. Optional functions include take-out robotic arm, wire twisting unit, middle stripping device, and production management system.
| Model | TU-P03 |
| Function | Piercing and crimping |
| Crimping Machine | Mitsubishi servo motor stamping (precise pressure control) |
| Capacity | Determined by wire length and number of product pins (Example: 200mm wire length, 1500 pins/hour) |
| Power Supply | AC 220V/50-60HZ |
| Air Supply | 5-6.5KG (Requires clean and dry air source) |
| Main Control Board | 256 high-speed microcontroller control system |
| Display | KINCO 7-inch Chinese color touchscreen display |
| Cylinder | Airtac, SMC |
| Electric Motor | Mitsubishi servo motors (3 sets) |
| Solenoid Valve | German FESTO, Airtac |
| Screw Rod Slide Rail | Taiwan Hiwin |
| Sensor | Jiazhun, Panasonic |
| Measurement | Length 1400 x Width 800 x Height 1500 (mm) (excluding wire rack) |
| Weight | Approximately 180KG |
Wire stripping and ring terminal crimping
| Option | Description |
| Take-out Robotic Arm | Automatically picks up and unloads finished wires for continuous unmanned operation; works with collection trays or conveyors. Requires a table on the equipment for installation. |
| Wire Twisting Unit | Twists and compacts copper strands after stripping to prevent stray or reversed strands, facilitating terminal insertion and crimping while improving first-pass yield. Effective for small-gauge wires (≤ 3 mm² cross-section); does not produce noticeable twisting effect on stiffer copper strands. |
| Middle Stripping Device (Window Stripping) | Creates a T-shaped slit on the wire for middle (window) stripping at any position — can be located at the middle or at both ends of the wire. Available in electric and pneumatic versions. |
| Production Management System | Two modes: standalone management (output statistics and job management on a single machine) and multi-machine networking (centralized order dispatching and capacity allocation across multiple machines). |
| Equipment | Function | Key Notes | Product Link |
| Inkjet Printer | Synchronized online printing of serial numbers, characters, and barcodes on the wire surface. | Clear, high-contrast print quality; requires regular consumables (ink and solvent). | View Product |
| Laser Marking Machine | Synchronized online laser marking on the wire surface — no ink required. | No consumables, maintenance-free; marking color depends on wire insulation material and varies accordingly. | View Products |
| Wire Prefeeder | Automatic wire payoff with constant tension, preventing pulling damage from heavy spools and ensuring stripping accuracy. | Compatible with spools of various weights; smooth and steady feeding. | View Products |
| Wire Stacker | Automatically stacks finished wires neatly for easy collection, bundling, and packaging. | Supports extended unattended operation; stacking and collection are fully automatic. Requires a table on the equipment for installation. | View Products |
| Wire Coiler | Automatically coils finished wires into loops for easy bundling and packaging. | Requires an operator nearby to remove finished coils promptly. Requires a table on the equipment for installation. | View Product |
The TU-P03 is an IDC connector piercing-type terminal crimping machine featuring Mitsubishi servo motor stamping with precise pressure control. It is used for piercing and crimping IDC terminals in wire harness assembly.
Capacity: 1500 pins/hour (200mm wire length example). Power: AC 220V/50-60Hz. Air supply: 5-6.5KG (clean/dry). Dimensions: 1400*800*1500mm. Weight: approximately 180kg.
The machine features a 256 high-speed microcontroller control system, KINCO 7-inch color touchscreen, Airtac/SMC cylinders, Mitsubishi servo motors (3 sets), German FESTO solenoid valves, and Taiwan Hiwin screw rod slide rails.
Optional functions include take-out robotic arm for automatic unloading, wire twisting unit for small-gauge wires, middle stripping device for window stripping, and production management system (standalone or multi-machine networking).
External equipment includes inkjet printer and laser marking machine for wire marking, wire prefeeder for constant tension feeding, wire stacker for automatic stacking, and wire coiler for automatic coiling.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
