PF-SC25
| Availability: | |
|---|---|
| Quantity: | |

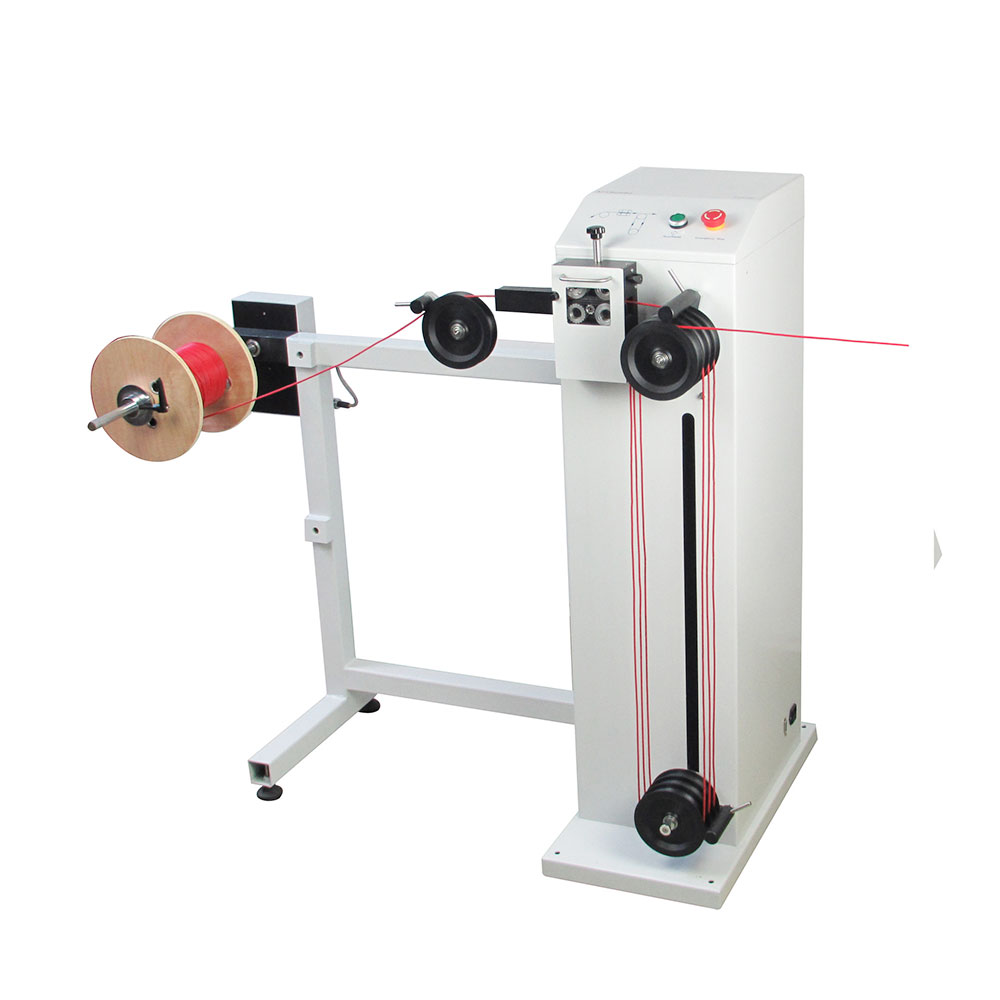

Wire Prefeeding Machine for Coaxial Cable Stripping Machines
This advanced wire prefeeding machine is engineered to provide automatic cable feeding for coaxial cable stripping machines. It maintains the wire in a uniformly relaxed state, significantly enhancing the precision of wire feeding for automated coaxial wire stripping processes.
Key Features:
1. Dual-Motor System: Equipped with two high-performance motors and multiple sensors for accurate and efficient operation.
2. Integrated Wire Straightener: The mid-section features a built-in wire straightener, allowing cables to be automatically straightened during the feeding process.
3. Seamless Operation: Designed to handle intermittent starts and stops with ease, perfectly aligning with the demands of automatic wire processing machines.
Model | PF-SC25 |
Max Load Weight | 30kg |
Wire diameter | 0.6-5mm |
Feeding speed | Max 2.5m/s |
Power Supply | 220V |
Power | 120W |
Dimensions | 850*430*760 mm |
Weight | 58kg |
Application
This fully automatic wire feeder eliminates the trouble of manual wire feeding.
The PF-SC25 is an advanced wire prefeeding machine engineered for automatic cable feeding for coaxial cable stripping machines, featuring a dual-motor system and integrated wire straightener for enhanced precision.
Max load weight: 30kg. Wire diameter: 0.6-5mm. Feeding speed: up to 2.5 m/s. Power: 220V, 120W. Dimensions: 850*430*760mm, weight: 58kg.
Key features include a dual-motor system with multiple sensors for accurate operation, integrated wire straightener for automatic cable straightening, seamless operation with intermittent starts and stops, and maintains uniform relaxed wire state for enhanced precision.
The PF-SC25 requires 220V power (120W) and has dimensions of 850*430*760mm, weighing 58kg. It is a benchtop unit requiring moderate workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
