PF-RS50
| Availability: | |
|---|---|
| Quantity: | |

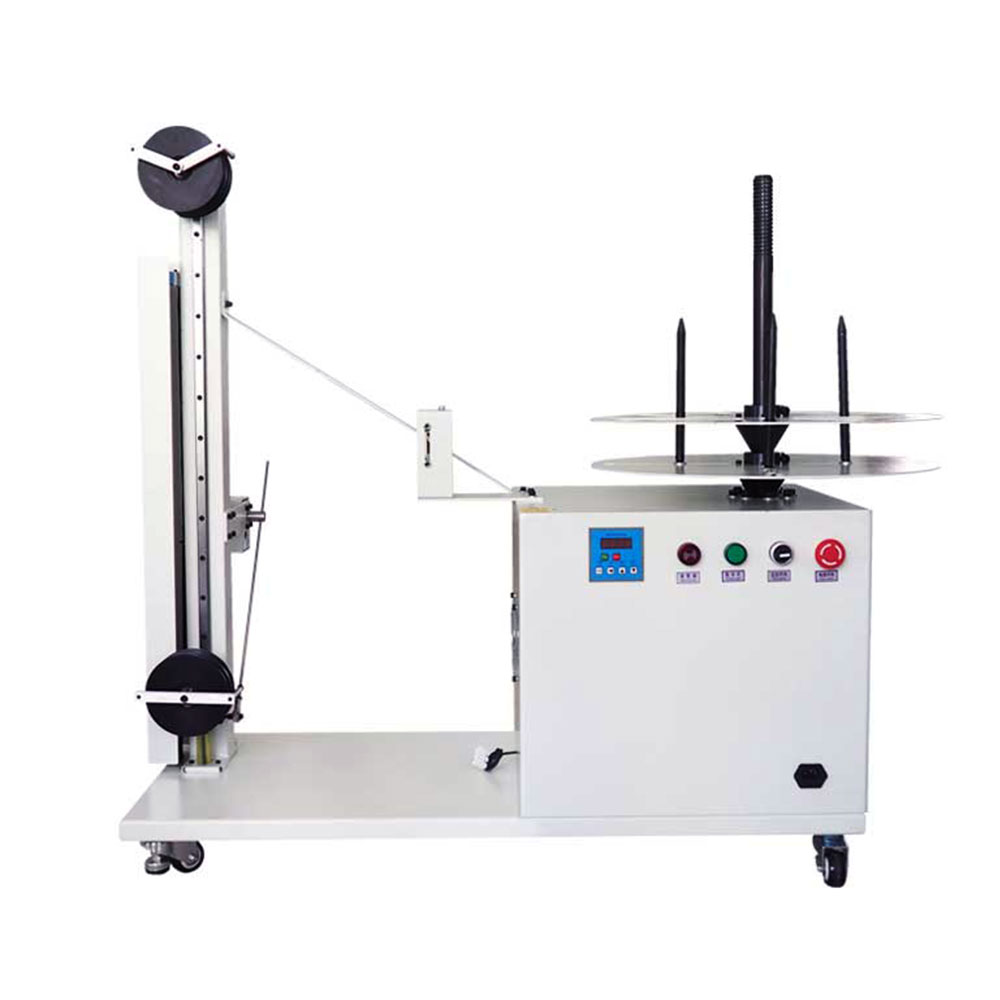

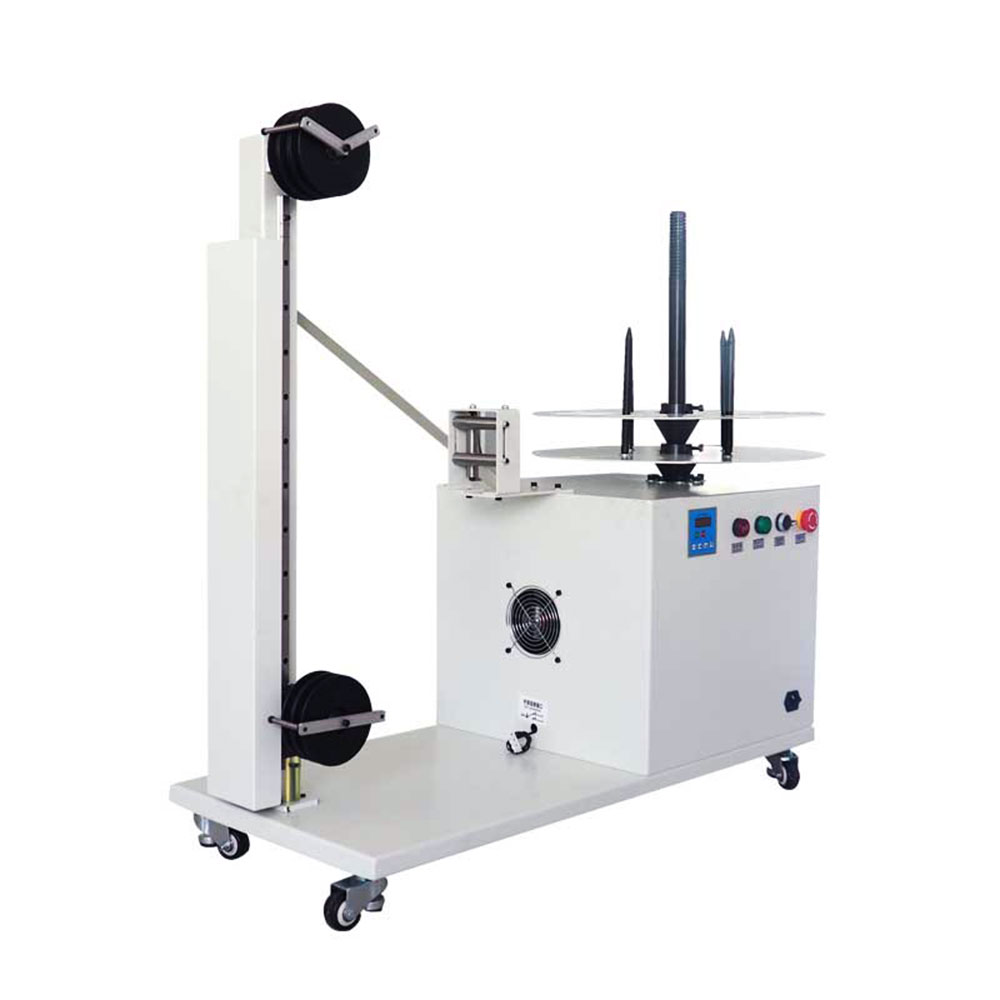

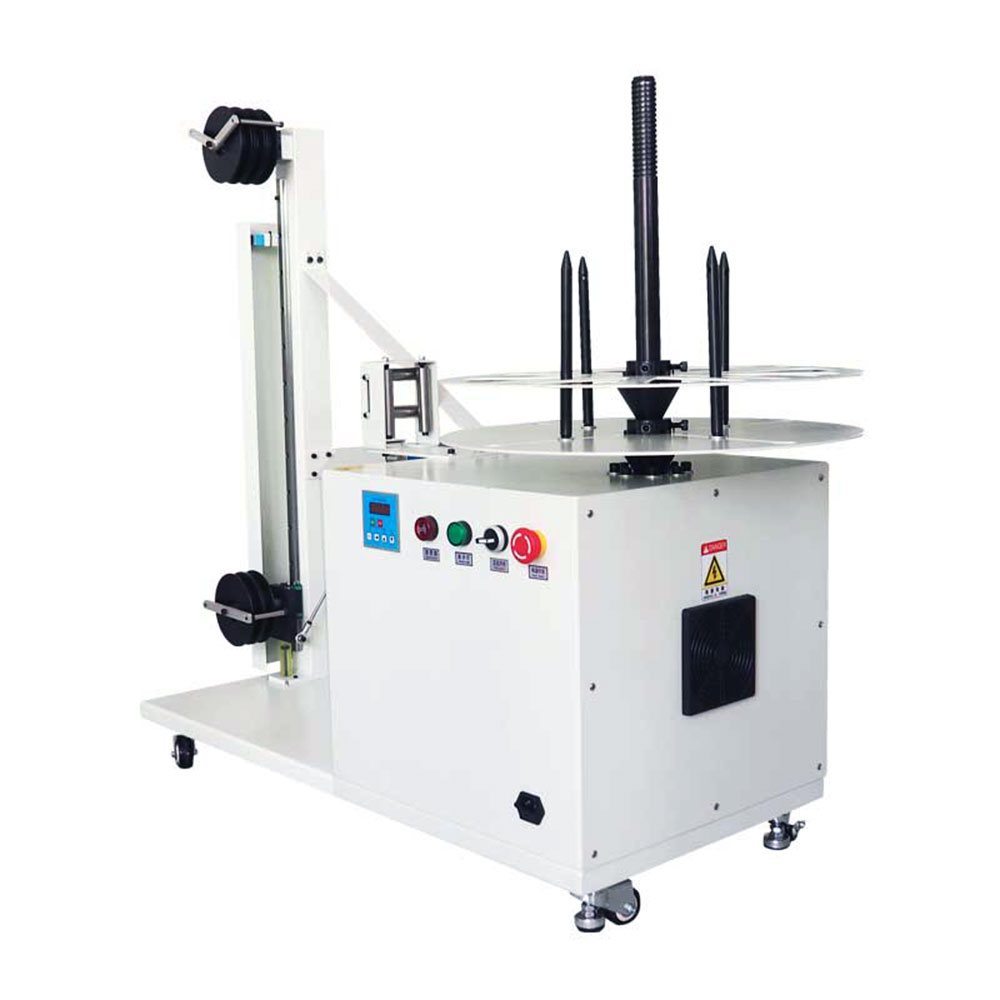

This advanced wire prefeeding machine eliminates the need for manual speed adjustments, featuring infinitely variable automatic speed control for seamless wire processing.
Key Features:
1. Active Wire Feeding: Automatic induction system with integrated braking for precise control.
2. Smooth Operation: Equipped with constant-speed guide rails to ensure no wire resistance, promoting steady feeding.
3. Low-Noise Design: Quiet operation with an adjustable wire wheel to accommodate various wire diameters.
4. Wide Compatibility: Ideal for use with fully automatic terminal crimping machines, wire winding machines, wire cutting machines, and wire soldering machines.
Model | PF-RS50 |
Max Load Weight | 50kg |
Speed setting | 10 for choice |
Power Supply | 220V |
Power | 750W |
Dimensions | 670*800*1030mm |
Weight | 50kg |
Application
This fully automatic wire feeder eliminates the trouble of manual wire feeding.
The PF-RS50-B is a 50kg capacity wire spool prefeeding and unwinding system with automatic induction control and integrated braking for precise, tension-free prefeeding to terminal crimping, winding, cutting, and soldering machines.
Max load weight: 50kg. Speed setting: 10 options. Power: 220V, 750W. Dimensions: 670*800*1030mm, weight: 50kg.
Key features include automatic induction with integrated braking, infinitely variable automatic speed control eliminating manual adjustments, constant-speed guide rails for resistance-free operation, low-noise design with adjustable wire wheel, and 10 selectable speed settings.
It is ideal for use with fully automatic terminal crimping machines, wire winding machines, wire cutting machines, and wire soldering machines.
The PF-RS50-B requires 220V power (750W) and has dimensions of 670*800*1030mm, weighing 50kg. Requires dedicated floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
