PF-S200
| Availability: | |
|---|---|
| Quantity: | |
Description

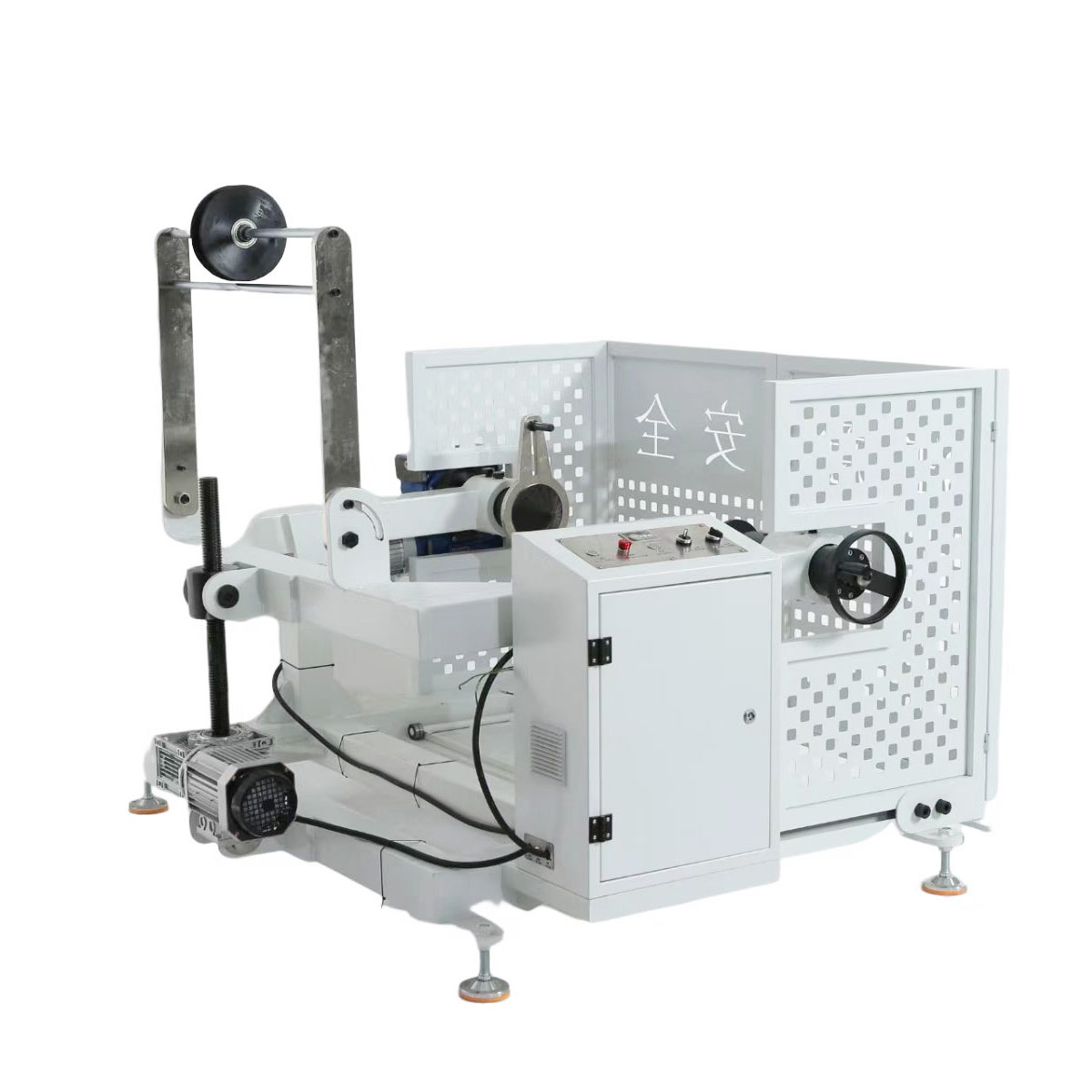

The PF-S200 is a heavy-duty cable drum payoff stand engineered for industrial environments, ensuring smooth and controlled dereeling across a broad range of wire and cable sizes. Whether used in cable manufacturing, power line construction, or large-scale wiring projects, this robust machine delivers the reliability and lifting capacity needed to prevent cable twisting and damage during payout.
Key Features & Benefits
Versatile Application – Designed to handle electric wires and cables from 10 mm² to 185 mm², covering a wide range of production and installation needs.
High Load Capacity – Built with a rugged steel frame, supporting a maximum drum load of 2000 kg, ideal for large, heavy wire reels.
Universal Compatibility – Adjustable components accommodate various drum sizes (specific dimensions can be provided upon request).
Powerful & Efficient Operation – Equipped with a 5 kW main drive motor, ensuring consistent tension and speed control during the unwinding process.
Easy Setup – Features a dedicated 2.2 kW lifting motor for hydraulic or mechanical lifting of heavy cable drums, significantly reducing manual labor and setup time.

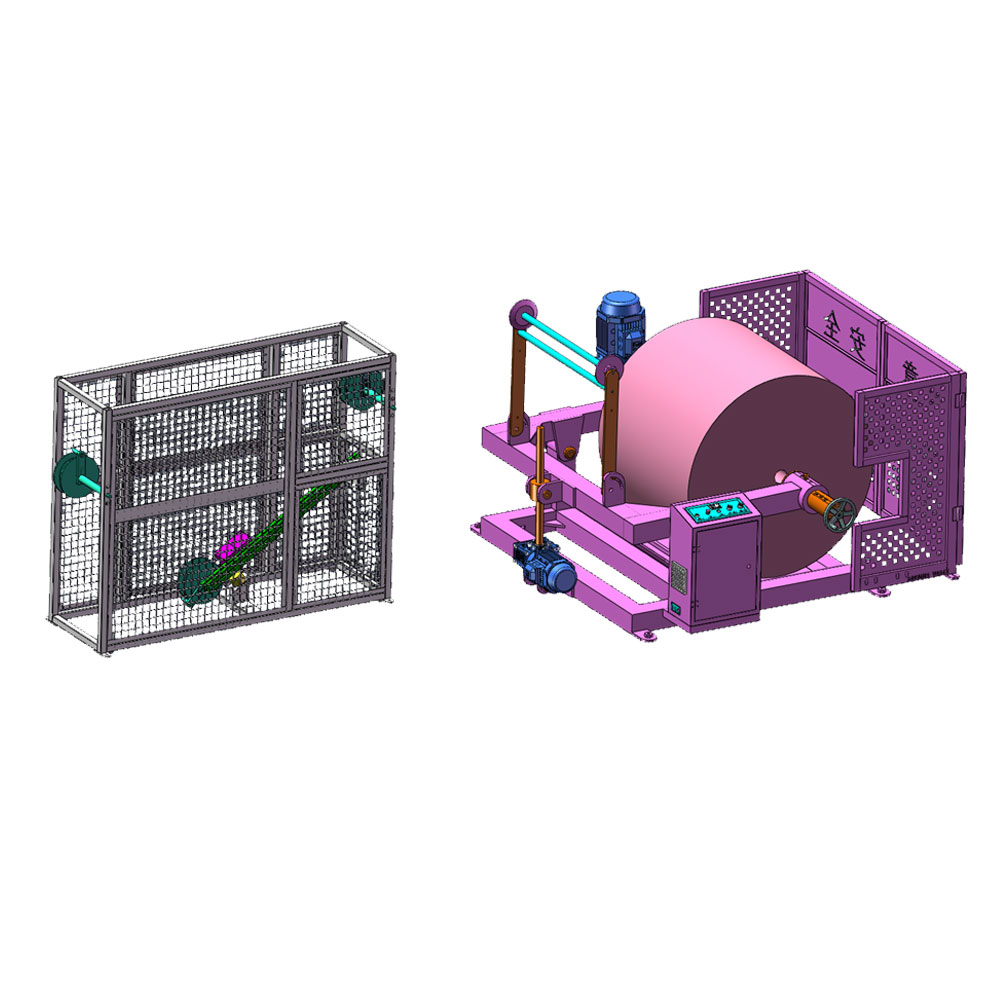

Advanced Wire Accumulation (Optional) – Choose the configuration that best fits your production line:
Lever-Type Accumulation – Simple and reliable for standard applications.
Storage-Type Accumulation – Ideal for high-speed lines requiring continuous operation without stopping to change drums.
| Model | PF-S150 | PF-S200 |
| Max Load Weight | 1500kgs | 2000kgs |
| Available Wire | About 10-185sqmm wire | |
| Available Wire Diameter | ≤ Ø50mm (based on cable, please check with WIREPRO) | |
| Available Spool Outer Diameter | 800-1500mm (custom available) | |
| Available Spool Inner Diameter | 53-85mm (custom available) | |
| Available Spool Width | 450-900mm (custom available) | |
| Feeding Speed | About 0-100m/min (based on cable) | |
| Storage line method | Lever-type storage wire | |
| Drive Type | Inverter & motor & reducer | |
| Power Supply | 380V 3-phase (custom 220V) | |
| Power | 5200W | 7200W |
| Feeding motor power | 3000W | 5000W |
| Lifting motor power | 2200W | |
| Dimensions | 210*190*150cm | |
| Weight | 580kg | 950kgs |
This fully automatic wire feeder eliminates the trouble of manual wire feeding.
The PF-S200 is a heavy-duty cable drum payoff stand engineered for industrial environments. It ensures smooth and controlled reeling across electric wires and cables from 10mm² to 185mm² in cable manufacturing and power line construction.
It supports 2000kg max load, wire up to 185mm², spool OD 800-1500mm, ID 53-85mm, width 450-900mm. Feeding speed: 0-100m/min. Power: 7200W (5000W feeding + 2200W lifting), 380V 3-phase.
Key features include a rugged steel frame with 2000kg load capacity, dedicated 2.2kW lifting motor for easy drum loading, adjustable components for various drum sizes, and optional lever-type or storage-type wire accumulation.
The PF-S200 requires 380V 3-phase power (custom 220V available) with 7200W total power. Dimensions: 210*190*150cm, weight: 950kg. Requires dedicated floor space.
Adjustable components accommodate various drum sizes with outer diameter 800-1500mm, inner diameter 53-85mm, and width 450-900mm (custom available). The lifting motor simplifies drum loading and changeovers.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
