HW-HD80
| Availability: | |
|---|---|
| Quantity: | |
Description

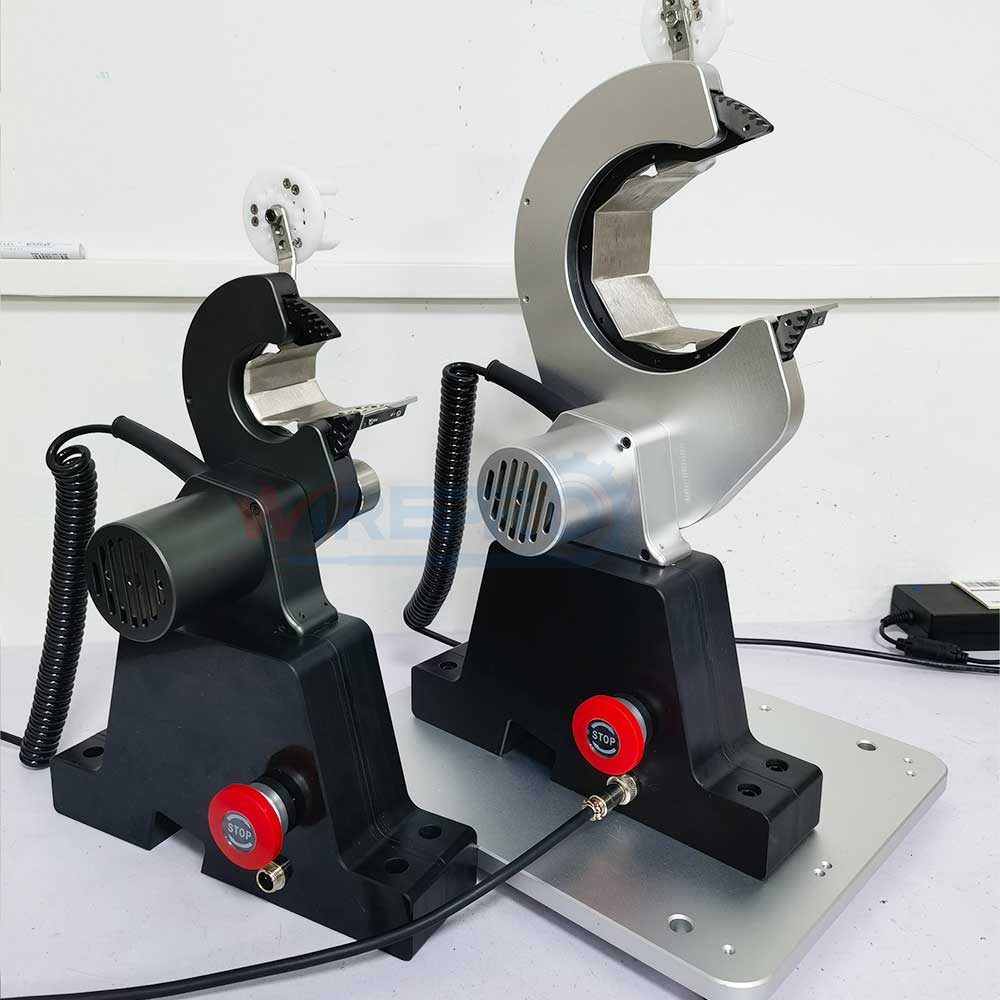

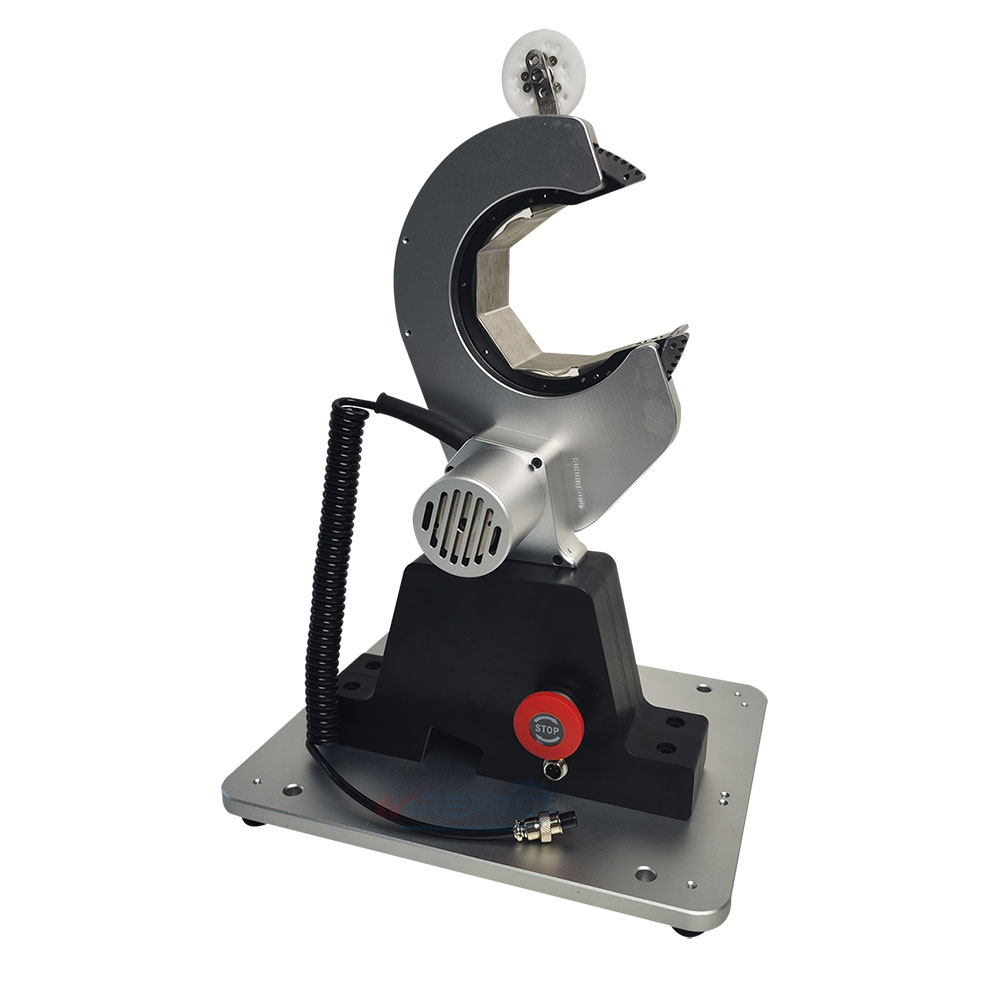

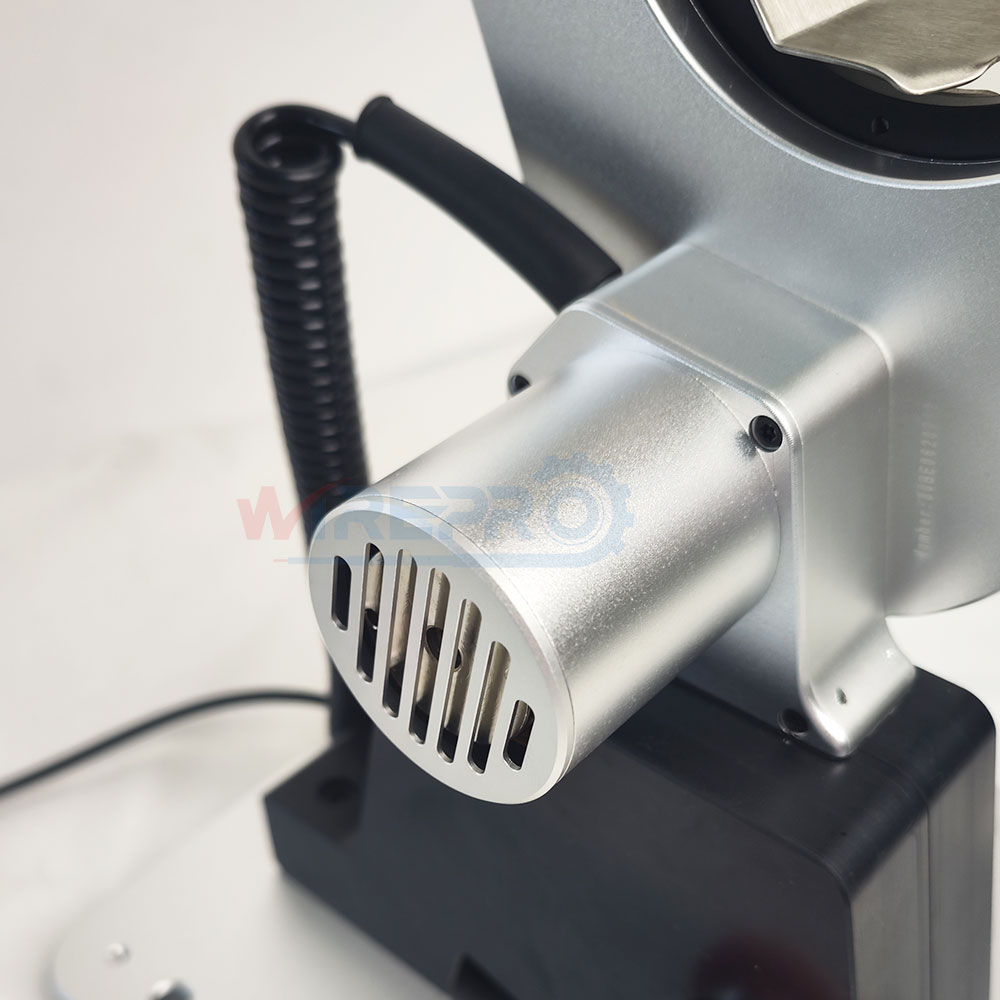

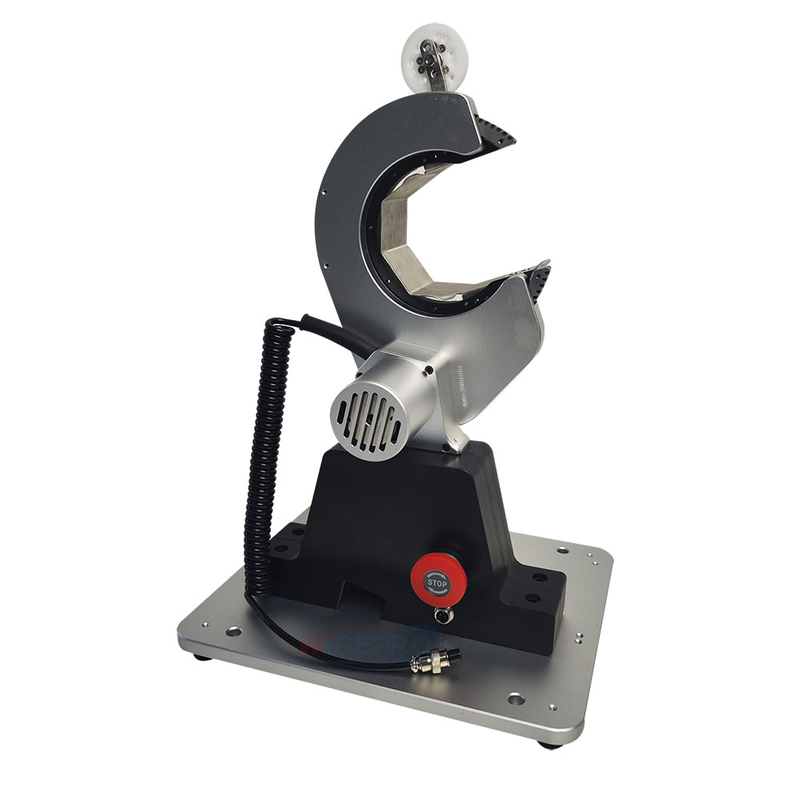

The HW-HD80 is a big diameter tape wrapping machine designed for efficient harness taping with a maximum capacity of 80 mm. Combining a lightweight build with practical functions, it delivers flexible and comfortable operation for a wide range of wire harness wrapping tasks.
Key Features:
Lightweight & Portable – The entire machine weighs only 8 kg, making it easy to move and reposition around the workshop.
Point & Full Taping Support – Supports both point taping and full taping, with winding speed and winding turns fully adjustable to suit different requirements.

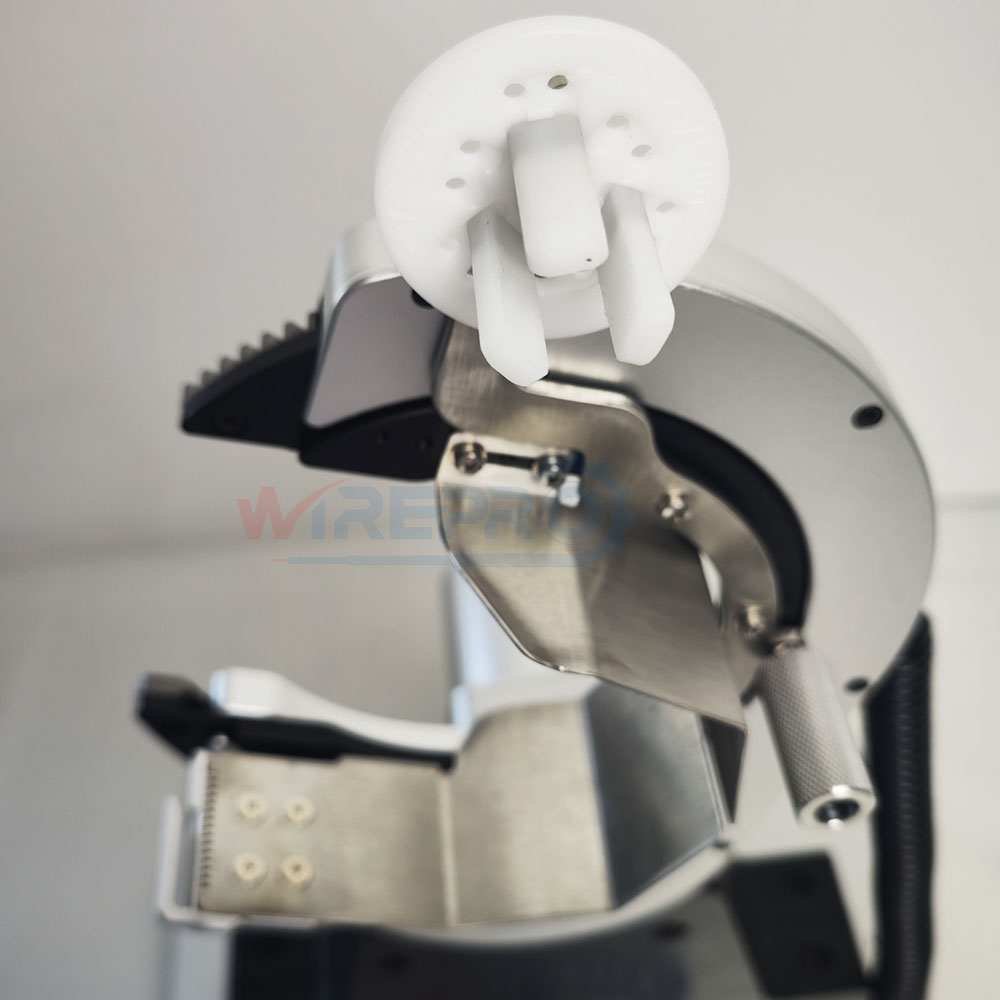

Integrated Tooth-Shaped Incision & Hidden Knife – Capable of cutting various tape materials cleanly and safely.
Automatic Position Advance – After completing one taping cycle, the tape automatically jumps to the next position to prepare for the following wrap — no additional operation required.

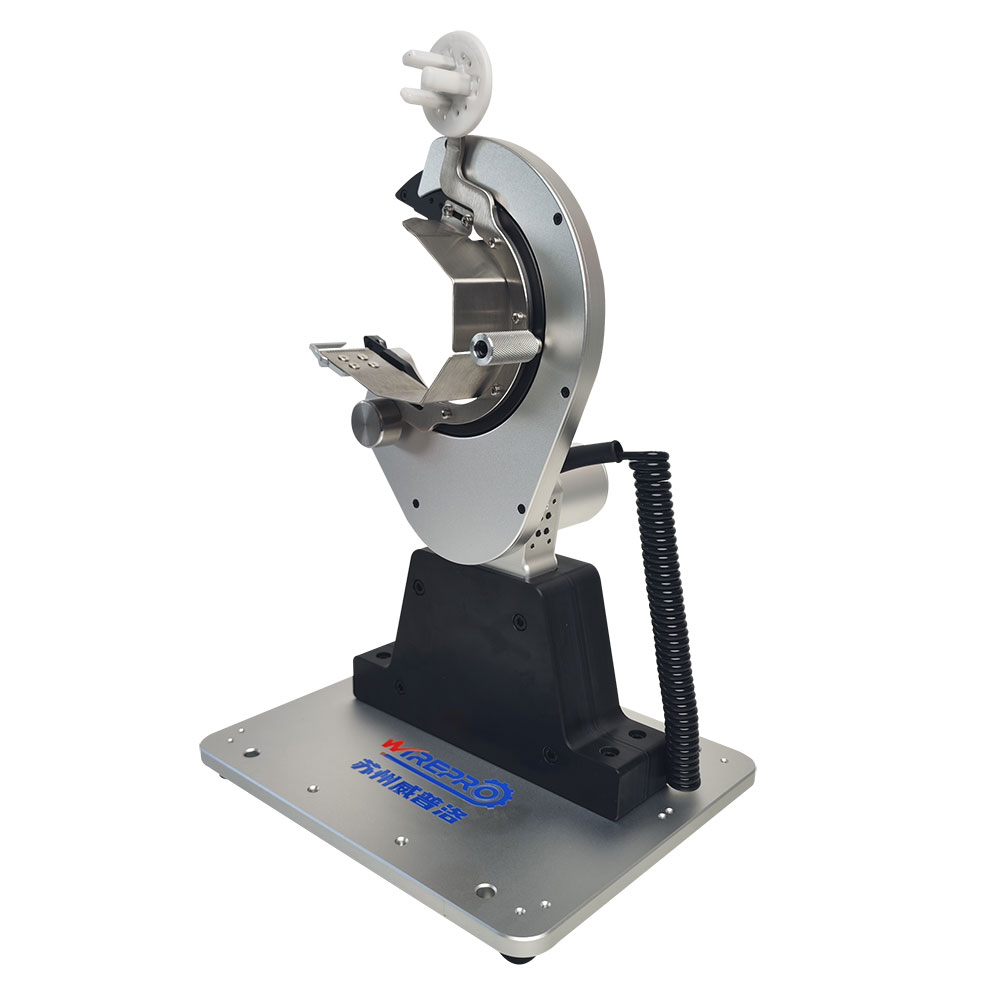

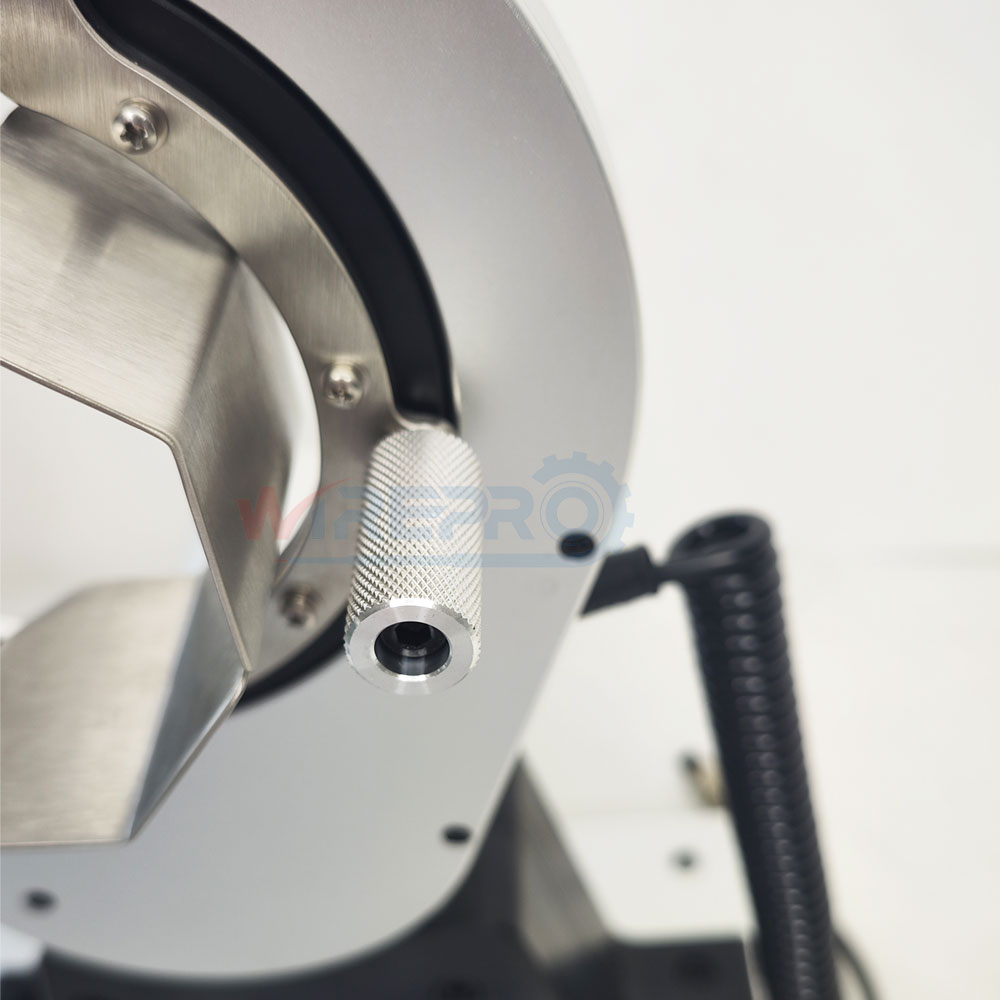

Turntable Opening Design – Specially designed for branch taping, allowing convenient wrapping of larger diameter wire harnesses.
Ergonomic Operation – Designed in accordance with human mechanics, making it easy to operate and reducing operator fatigue during extended use.
| Model | HW-HD80 |
| Features | Hand holding, big diameter |
| Available Wire Dia | standard Ø5-80mm; recommended 40-80mm |
| Tape Width | 5-25mm (There are recommended tape widths for different wire diameters) |
| Tape Roll OD | Max Ø130mm |
| Wrapping Speed | Manual control |
| Power Supply | 110/220VAC,50/60Hz Optional battery power |
| Dimensions | 42*30*38 cm |
| Weight | 8kg |
The HW-HD80 is a big diameter tape wrapping machine for wire harness continuous and spot taping, particularly suitable for large diameter harnesses up to 80mm and branch taping applications.
Available wire diameter: standard Φ5-80mm, recommended 40-80mm. Tape width: 5-25mm. Tape roll OD: max Φ130mm. Wrapping speed: manual control. Power: 110/220VAC, 50/60Hz with optional battery. Dimensions: 42*30*38cm, weight: 8kg.
Key features include support for point and full taping with settable winding speed and turns, integrated tooth-shaped incision and hidden knife for various tape materials, automatic positioning after each taping cycle, turntable opening for branch taping, and lightweight ergonomic design at only 8kg.
The HW-HD80 operates on 110/220VAC, 50/60Hz with optional battery power. Dimensions: 42*30*38cm, weight: 8kg. It is a portable benchtop unit requiring minimal workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
