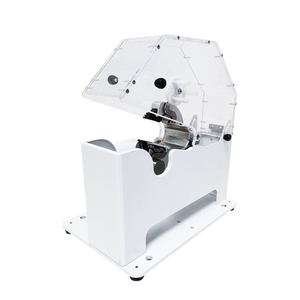

HW-D25 Wire Harness Taping Machine – Continuous & Spot Taping
The HW-D25 taping machine is designed to handle both continuous and spot taping for wire harnesses. It supports various types of non-back-paper tapes, including cloth tape, PVC tape, and more. Ideal for continuous taping applications, this machine ensures high-quality, smooth wrapping results.
Key Features:
1. Compatible with Various Tape Materials: Works seamlessly with cloth tape, PVC tape, and other non-back-paper materials.
2. Smooth and Flat Wrapping: Ensures finished products are wrinkle-free and perfectly aligned.
3. Flexible Winding Methods: Switch between same-position point winding and spiral winding across different positions.
4. Adjustable Settings: Allows customization of wrapping laps and speed, with output displayed for easy monitoring.
Quick Blade Replacement: Blades can be changed rapidly for minimal downtime and improved efficiency.
Model | HW-D25 | HW-D30 |
Features | Manual control feeding speed | Auto control feeding speed |
Available Wire Harness Dia | Φ2-25mm | Φ3-30mm(can custom 3-40mm) |
Tape Width | 9-19mm (other can custom) | 5-25mm (other can custom) |
Tape inner diameter | Ф37,Ф32 are common used, others can custom | Ф37,Ф32 are common used, others can custom |
Tape out diameter | Max 110mm | Max 100mm ( max 170 can custom) |
Wrapping Length | No limit | No limit |
Power Supply | 110/220VAC | 110/220VAC |
Dimensions | 40*41*34cm | 65*52*40cm |
Weight | 35kg | 45kg |
Application
HW-HD35 supports wire harness continuous & spot taping.
The HW-D25 is a desktop wire harness taping machine designed for continuous and spot taping using non-back-paper tapes such as cloth tape and PVC tape in wire harness assembly.
It supports wire harness diameters of Φ2-25mm and tape widths of 9-19mm (customizable). Common tape inner diameters are Ф37 and Ф32, with max tape outer diameter of 110mm.
Key features include smooth and flat wrapping with wrinkle-free results, flexible winding methods (point and spiral), adjustable wrapping laps and speed, quick blade replacement for minimal downtime, and manual control feeding speed.
The HW-D25 operates on 110/220VAC power and has dimensions of 40*41*34cm, weighing 35kg. It is a compact benchtop unit.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
