HW-H35
| Availability: | |
|---|---|
| Quantity: | |

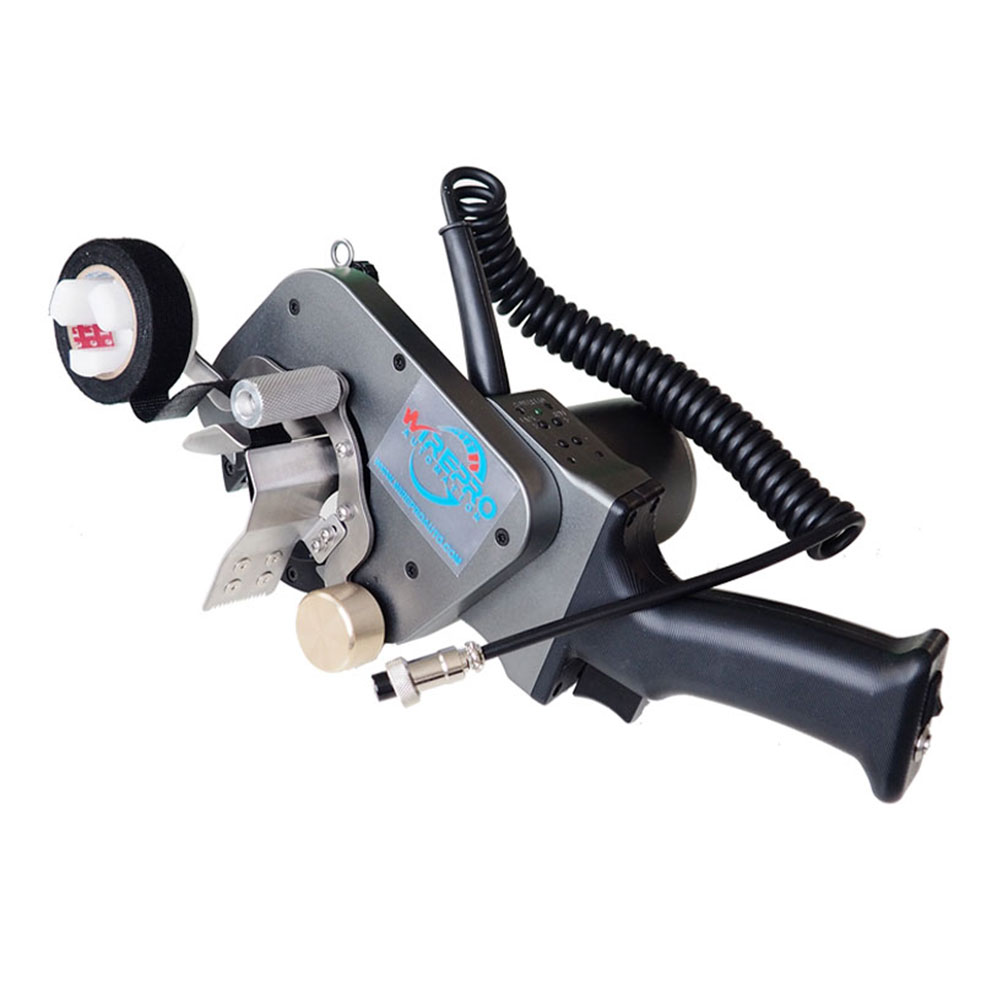

HW-H35 Hand-Held Wire Harness Taping Device – Continuous & Spot Taping
The HW-H35 is a versatile hand-held taping device designed for continuous and spot taping of wire harnesses. It ensures high-quality wrapping with a wide range of tape materials while offering ease of use and efficiency.
Key Features:
1. Compatible with Various Tape Materials: Works seamlessly with different types of tapes.
2. Lightweight & Ergonomic Design: Easy to handle and operate, reducing operator fatigue and improving efficiency.
3. User-Friendly Operation: Simple to use, requiring minimal training for operators.
4. Adjustable Tape Settings: Easily customize tape distance and overlap to minimize waste.
5. Automatic Positioning: After cutting the tape, the tool automatically moves to the next position, streamlining the process.
6. High-Quality Wrapping: Delivers optimal tension and wrinkle-free results for professional-grade finishes.
Model | HW-H35 | HW-H55 |
Features | Hand holding | Hand holding, big diameter |
Available Wire Dia | Φ5-35mm (others need to test) | Φ5-55mm (others need to test) |
Tape Width | 5-25mm (There are recommended tape widths for different wire diameters) | 5-25mm (There are recommended tape widths for different wire diameters) |
Tape Roll OD | Recommend less than Φ90mm, Max Φ105mm | Recommend less than Φ110mm, Max Φ125mm |
Wrapping Speed | Manual control | Manual control |
Power Supply | 110/220VAC,50/60Hz Optional battery power | 110/220VAC,50/60Hz Optional battery power |
Dimensions | 33*18*15cm | 33*18*15cm |
Weight | 4kg (hand-holding part about 1.5kg) | 5kg (hand-holding part about 1.65kg) |
Application
HW-H35 HW-H55
supports wire harness continuous & spot taping. With this hand-held device, the wire harness can be high-quality wrapped with various tapes.
The HW-H35 and HW-H55 are handheld wire harness taping machines designed for continuous and spot taping. They provide high-quality wrapping with various tape materials for wire harness assembly.
HW-H35 supports Φ5-35mm wire diameter; HW-H55 supports Φ5-55mm (others need testing). Both support tape widths of 5-25mm with recommended widths varying by wire diameter.
Key features include lightweight ergonomic design (hand-holding part 1.5-1.65kg), adjustable tape distance and overlap settings, automatic positioning after tape cutting, and compatibility with battery power option.
Both models operate on 110/220VAC, 50/60Hz with optional battery power. They share dimensions of 33*18*15cm. HW-H35 weighs 4kg (1.5kg hand part); HW-H55 weighs 5kg (1.65kg hand part).
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
