HB-LC3
| Availability: | |
|---|---|
| Quantity: | |
Description
The HB-LC Series represents a complete range of professional-grade digital length counters designed for accurate, efficient, and reliable measurement of various linear materials. Whether you are working with wire, cable, hose, tubing, rope, or textiles, our counters provide a trusted solution to eliminate guesswork, reduce material waste, and streamline production, quality control, and inventory management processes.

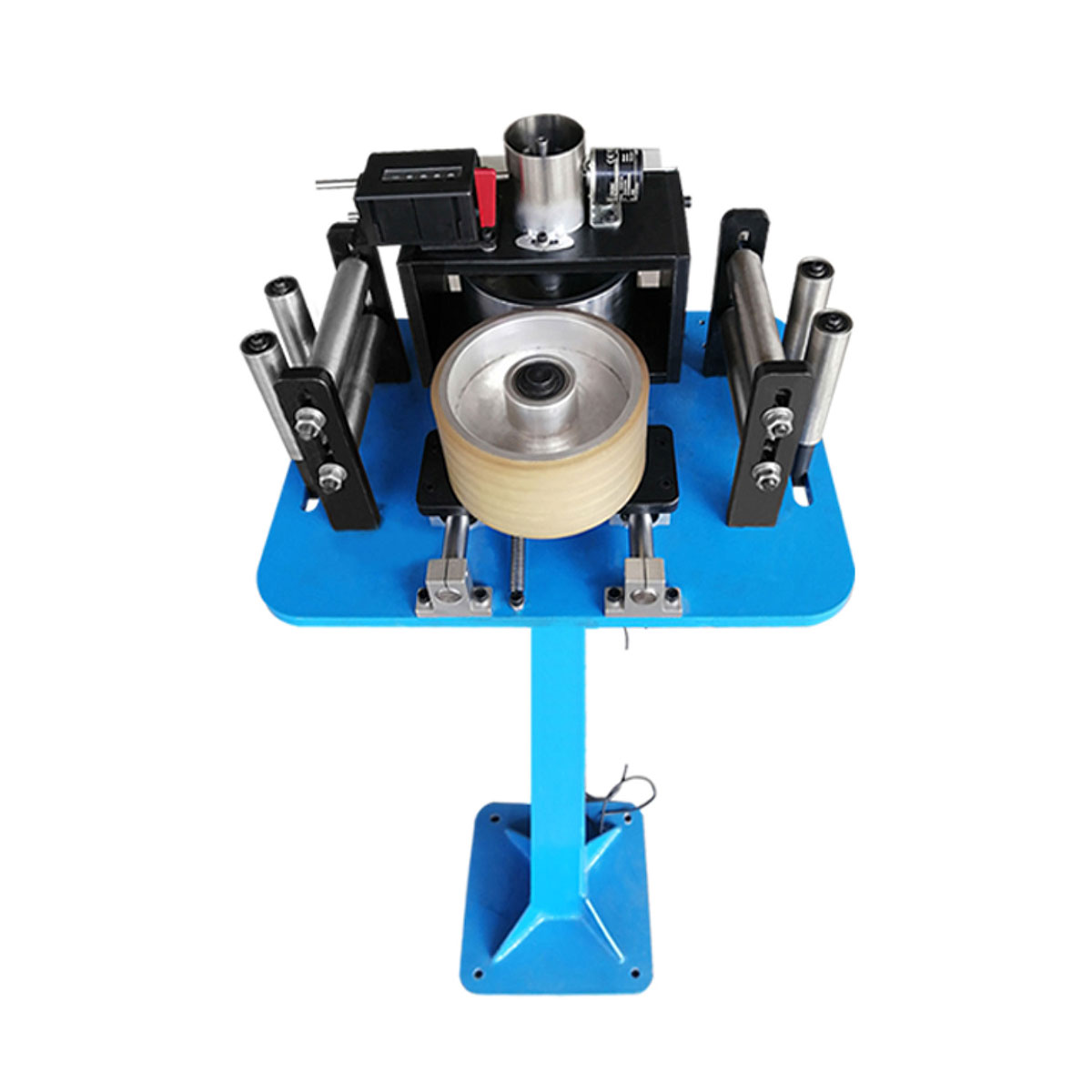

HB-LC3: Heavy-Duty Desk-Type Length Counter
Design – A stationary benchtop unit featuring a large, integrated measuring wheel or roller system, often with a guide table for smooth material handling.
Best For – High-volume, continuous measurement at a fixed workstation. Perfect for cutting to length, final inspection, or receiving/shipping verification of long coils of cable, wire, and tubing.
Key Benefit – Provides the highest stability and ease of operation for prolonged use, enhancing operator ergonomics and measurement consistency.
Typical Applications:
Wire & Cable Industry – Production line measurement, cutting to length, inventory auditing.
Plastics & Rubber – Measuring hoses, tubing, seals, and extruded profiles.
Textile & Packaging – Measuring ropes, belts, webbing, and film rolls.
Metalworking – Measuring mild steel wire, coils, and strips.

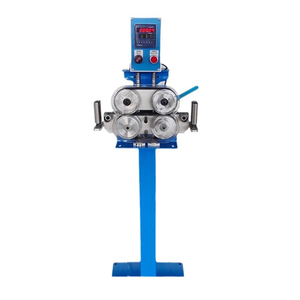

| Model | HB-LC1 | HB-LC2 | HB-LC3 |
| Function | Roller-Type Length Counter | Belt-type length counter | Desk-type length counter |
| Available Wire Diameter | 1-30mm | 1-12mm, 1-25mm, 1-50mm | 1-50MM, 1-80MM |
| Belt/Roller Size | OD 159.5mm | Width 80mm | OD 160mm |
| Length Accuracy | 2% | 1% | 1% |
| Display | Electronic Display | Electronic Display | Mechanical and electronic dual display |
| Available Wire | Flat Wire, round Wire | ||
| Positioning | 2roller Guides Positioning On 2 Sides | ||
| Centre Height | 700/1000mm, Customized 800-1200mm | ||
| Speed | Controlled by pull speed | ||
| Power Supply | 220/110V | ||
The HB-LC3 is a heavy-duty desk-type cable wire length counter designed for high-volume, continuous measurement at fixed workstations. It is used for cutting to length, final inspection, and inventory verification of long cable, wire, and tubing coils.
It supports wire diameters from 1-80mm (available in 1-50mm and 1-80mm variants) with a measuring wheel OD of 160mm. It achieves 1% length accuracy with mechanical and electronic dual display.
Key features include a stationary benchtop design with large integrated measuring wheel/roller system and guide table for smooth material handling. It provides highest stability and ease of operation for prolonged use, enhancing measurement consistency.
The HB-LC3 operates on 220/110V power. Specific dimensions and weight are not provided on the page. The desk-type design requires benchtop space for fixed workstation installation.
Typical applications include wire and cable production line measurement, cutting to length, and inventory auditing; plastics and rubber for hoses and tubing; textile and packaging for ropes and belts; and metalworking for steel wire and coils.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
