HB-M02
| Availability: | |
|---|---|
| Quantity: | |

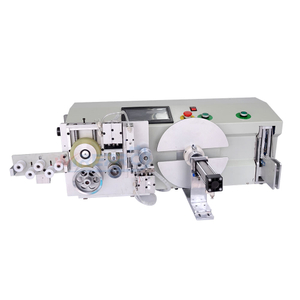

The HB-M01 and HB-M02 are advanced wire processing machines designed for automatic metering, cutting, and winding of wires. They support both wire rolls and wire reel winding processes. Specifically, the HB-M01 includes a wire bundling function, making it ideal for tying wires after winding, while the HB-M02 is optimized for small wire spool rewinding without bundling.
These machines operate efficiently based on the customizable parameters set through the intuitive LCD touch screen, ensuring high-speed performance and stable operation. Both the cutting length and binding cycles can be easily adjusted, with settings automatically saved for future use. The components are crafted to be durable and robust, significantly reducing manual labor while improving production efficiency and processing consistency.
These machines are versatile, making them suitable for round wires, flat cables, ribbon wires, and double wires.
Key Features:
1. All-in-One Operation: Integrates metering, cutting, winding, and bundling functions (HB-M01).
2. Precision Accuracy: Ensures precise measurement of wire lengths.
3. Neat and Uniform Output: Delivers clean, well-organized wire coils.
4. User-Friendly Adjustments: Cutting lengths and bundling cycles are quick to modify, enhancing operational convenience.
Model | HB-M01 | HB-M02 |
Type | Desk Type with tying function | Desk Type no tying function |
Available Wire Size | Φ1-8mm ( can custom) | Φ1-8mm ( can custom) |
Max Coil Weight | about 1.5 kg | about 1.5 kg |
Winding Diameter | Standard 280mm | Standard 280mm |
Winding Speed | 1-13 cycle/s | 1-13 cycle/s |
Bundling Diameter | Φ18-45mm/ | Φ18-45mm/ |
Power Supply | 110/220VAC,50/60Hz | 110/220VAC,50/60Hz |
Power | 400W | 400W |
Dimensions | 83*30*55cm | 75*30*55cm |
Weight | 80kg | 73kg |
Application
Wire roll, small wire spool winding
The HB-M02 is an automatic wire processing machine for metering, cutting, and winding of wires without bundling, optimized for small wire spool rewinding for round wires, flat cables, ribbon wires, and double wires.
It supports wire sizes of Φ1-8mm (customizable) with max coil weight of about 1.5kg. Winding diameter: standard 280mm. Features LCD touch screen for parameter adjustment.
Winding speed: 1-13 cycles per second. Power: 400W, 110/220VAC, 50/60Hz. Dimensions: 75*30*55cm, weight: 73kg. It is a desk-type unit.
HB-M01 is a desk-type with tying function (bundling) including winding and bundling. HB-M02 is a desk-type without tying function, optimized for small wire spool rewinding only. HB-M02 is smaller (75*30*55cm, 73kg vs 83*30*55cm, 80kg).
The HB-M02 requires 110/220VAC, 50/60Hz power (400W) and has dimensions of 75*30*55cm, weighing 73kg. It is a desk-type unit requiring moderate workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
