HB-AC0
| Availability: | |
|---|---|
| Quantity: | |

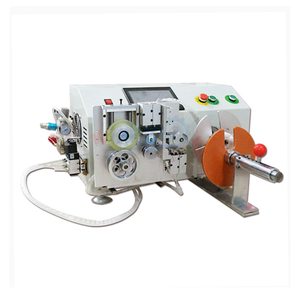

The HB-AB0 is an automatic machine designed for winding and bundling materials into circular shapes, compatible with various sizes of wires, pipes, strings, and similar materials. It features ergonomic design to reduce operator fatigue, high performance up to 1200 bundles per hour, and compact user-friendly operation. The machine supports wire diameter up to 10mm, winding inner diameter of 80-180mm, bundling diameter less than 45mm, and operates on 110/220VAC with 0.4-0.55MPa air connection.
| Model | HB-AB0 |
| Finished Coil Type | Circle shape |
| Available Wire Dia | ≤ 10mm |
| Winding Inner Dia | 80-180mm |
| Bundling Diameter | < 45mm |
| Reserved Head Length | ≤ 150mm |
| Reserved Tail Length | ≤ 150mm |
| Tying Wire Materials | Plastic or rubber coated iron core wire |
| Production Rate | ≤ 1200 pcs/h |
| Power Supply | 110/220VAC, 50/60Hz |
| Air Connection | 0.4-0.55MPa |
| Dimensions | 110*72 * 160 cm |
| Weight | 120kg |
The HB-AB0 is an automatic machine for winding and bundling wires, pipes, strings, and similar materials into circular shapes, with a production rate up to 1200 bundles per hour.
Wire diameter: ≤10mm. Winding inner diameter: 80-180mm. Bundling diameter:<45mm. Reserve head/tail length: ≤150mm. Production rate: ≤1200 pcs/h. Power: 110/220VAC, 0.4-0.55MPa air. Dimensions: 110*72*160cm, weight: 120kg.
Key features include ergonomic design to reduce operator fatigue, high-speed processing up to 1200 bundles/hour, versatile compatibility with various materials, compact footprint, and neat, tightly bundled coils for easy packing and transport.
The HB-AB0 requires 110/220VAC, 50/60Hz power and 0.4-0.55MPa air connection. Dimensions: 110*72*160cm, weight: 120kg. Requires dedicated floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
