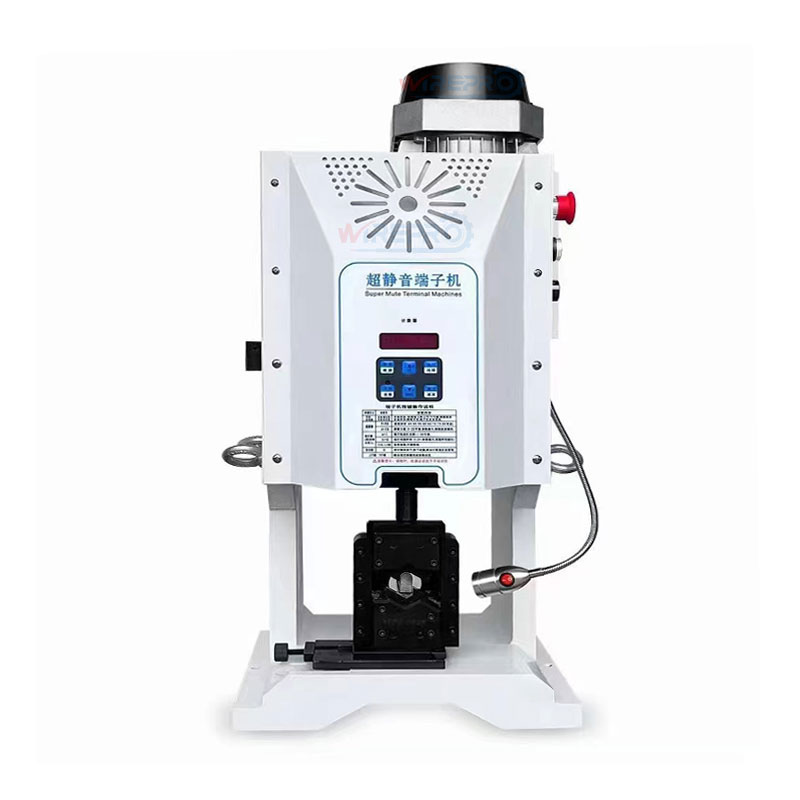

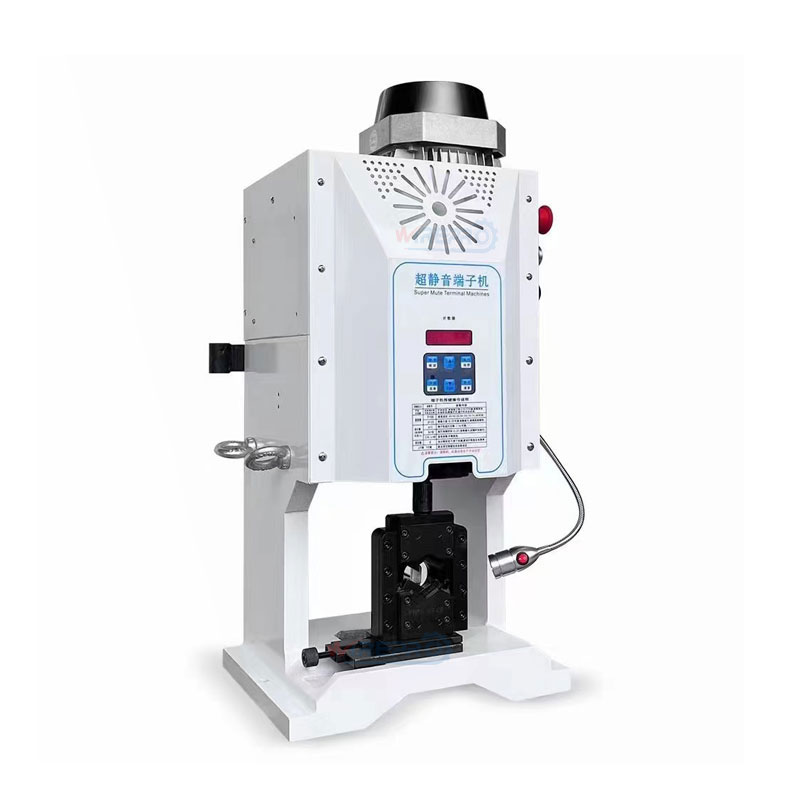

TU-N06 / TU-N08
| Availability: | |
|---|---|
| Quantity: | |
Description
The TU-N06 and TU-N08 semi-automatic terminal crimping machines are suitable for various terminal types and feature very easy applicator changeover. They are suitable for crimping computer terminals, DC terminals, AC terminals, single grain terminals, joint terminals, and more.
Different sizes of wires and terminal thicknesses require crimping machines with different crimping forces — the 6T and 8T models cover a range of heavy-duty crimping requirements.
Key Features:
Built-In Frequency Converter – Delivers a high production rate with low noise operation.
Custom Crimping Dies – Crimping dies are designed according to your specific terminal requirements.
Adjustable Production Rate – Production speed can be adjusted to suit different job requirements.
Manual & Automatic Modes – Supports both manual and automatic operation modes with easy switching.
LED Display – Shows the quantity of crimped terminals for convenient production tracking.
| Model | TU-N06 | TU-N08 |
| Crimp Force | 6.0Ton | 8.0Ton |
| Stroke | 30mm (custom available) | |
| Power Supply | 110/220VAC,50/60Hz | |
| Power | 2200W | 3000W |
| Weight | 140kg | 145kg |
| Dimensions | 30*30*82cm | 30*38*82cm |
Cable lug crimping
Thick copper terminal crimping
Wire stripping and ring terminal crimping
Various heavy-duty terminal applications
The TU-N06 and TU-N08 are semi-automatic terminal crimping machines for computer terminals, DC/AC terminals, single grain terminals, and joint terminals, with easy applicator changes and built-in frequency converter.
TU-N06: 6.0T crimp force, 2200W, 30*30*82cm, 140kg. TU-N08: 8.0T crimp force, 3000W, 30*38*82cm, 145kg. Both: 30mm stroke (custom available), 110/220VAC, 50/60Hz power supply.
Key features include built-in frequency converter for high production rate and low noise, crimping dies designed according to specific terminals, adjustable production rate, manual/automatic mode switching, and LED display showing crimped terminal quantity.
Both models require 110/220VAC, 50/60Hz power. TU-N06: 2200W, 30*30*82cm, 140kg. TU-N08: 3000W, 30*38*82cm, 145kg. They are benchtop units requiring moderate workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
