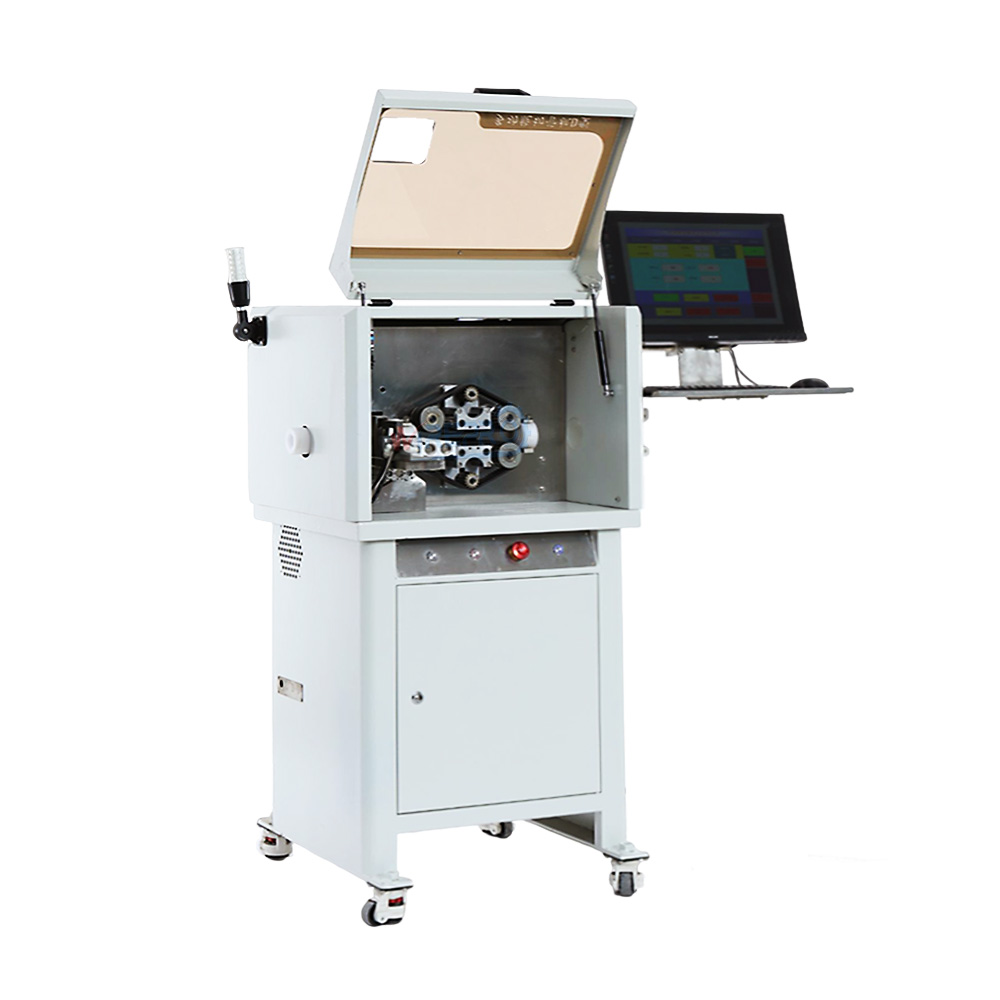

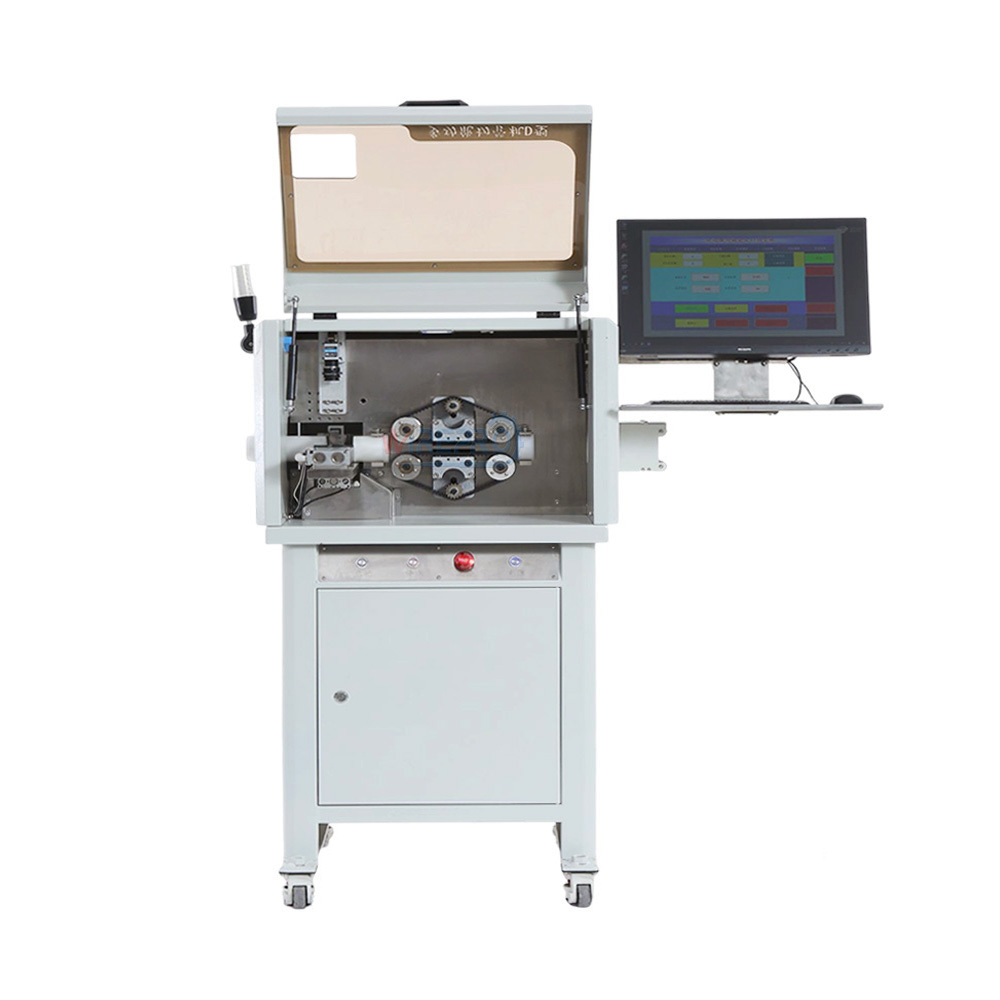

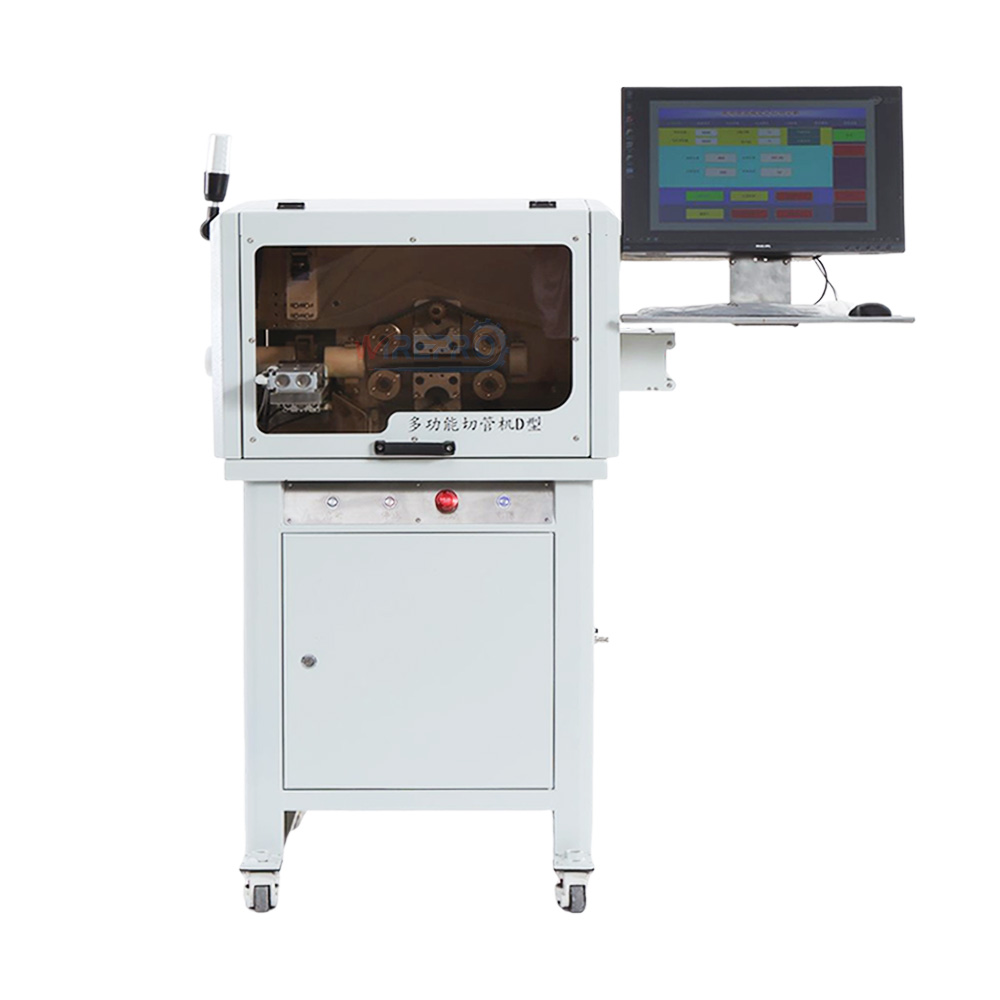

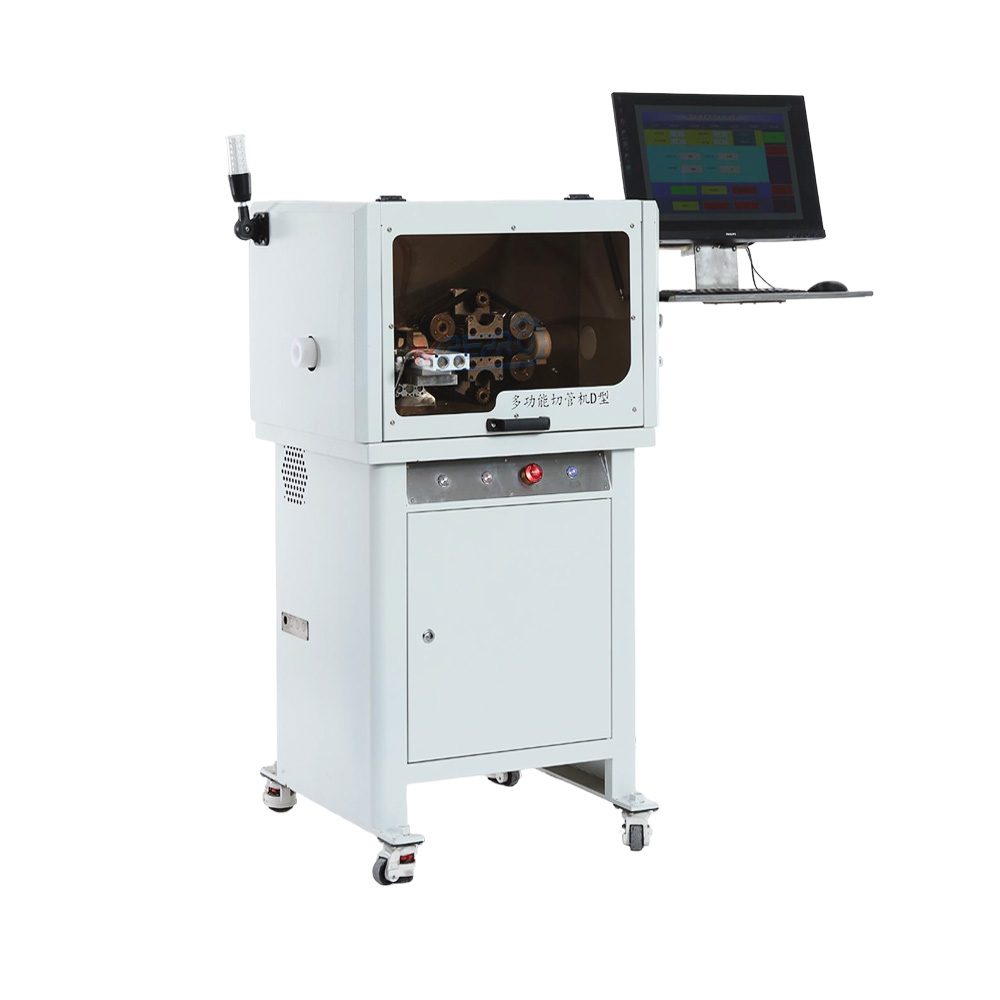

CB-V06
| Availability: | |
|---|---|
| Quantity: | |
The CB-V06 is an advanced model, improving upon the CB-V06 and CB-V07, designed for precise cutting of long corrugated tubes at wave peaks or valleys. The machine incorporates belt traction and a displacement sensor for automatic tube feeding and delivery, ensuring high-speed cutting with excellent precision.
Features:
1. Touchscreen interface with an English and Chinese operating system, PLC control, and fully digitalized operation.
2. Automatic pre-feeding, pre-delivery, and precise cutting for enhanced efficiency.
3. Integrated circuit for stable operation and easy maintenance.
4. Customizable splitting function available.
Precision corrugated tube cutting machine:

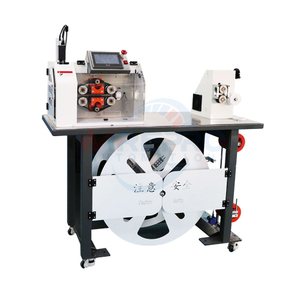

Model | CB-V06 | CB-V07 | |
Materials | Corrugated tube | Corrugated tube | |
Feature | Accurate cut tube wave peak | Accurate cut tube wave valley | |
Available Diameter | 4-25mm (custom available) | 4-25mm (custom available) | |
Cutting Length | 10-9999mm | 10-9999mm | |
Cutting Speed | 10-60pcs/min | 10-60pcs/min | |
Power | 220/110V | 220/110V | |
Power Supply | 1500W | 1500W | |
Dimensions | 177*66*155cm | 177*66*155cm | |
Weight | 230kg | 230kg | |
Application
Cutting long corrugated tube wave valley.
The CB-V06 is a visual positioning precision cutting machine designed for precise cutting of long corrugated tubes specifically at the wave peak position, using belt traction and displacement sensor for automated feeding.
It supports tube diameters of 4-25mm (custom available) with cutting length range of 10-9999mm and cutting speed of 10-60 pieces per minute.
CB-V06 cuts at the tube wave peak, while CB-V07 cuts at the wave valley. Both feature touchscreen control, PLC operation, automatic pre-release, and customizable splitting function.
Key features include visual positioning for wave peak cutting, belt traction and displacement sensor for automated length control, PLC control with dual-language touchscreen, and automatic pre-release/pre-delivery mechanisms.
The CB-V06 operates on 220/110V power (1500W) and has dimensions of 177*66*155cm, weighing 230kg. It requires dedicated floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
