CP-50S
| Availability: | |
|---|---|
| Quantity: | |

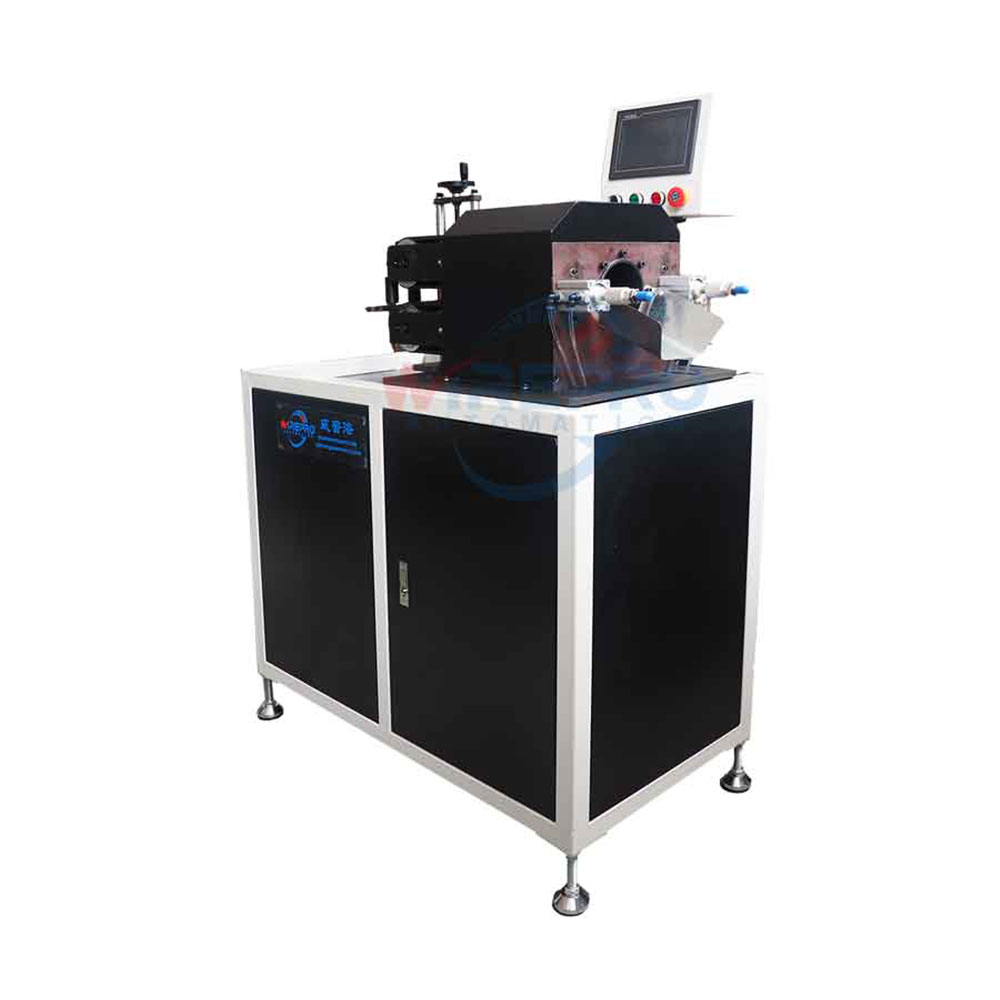

The high-precision automatic plastic tube cutting machine is designed for cutting PC, PE, PVC, PP, ABS, PS, PET, and other plastic pipes. Featuring a belt feeding mechanism, it is capable of cutting pipes individually. The CP-50S handles diameters up to 50mm, while the CP-100S supports diameters up to 100mm, with custom options available for larger sizes.
Features:
1. Rotary Knife Cutting: Chipless operation ensures flat, smooth cuts with no indentation, scratches, or deformation.
2. High-Definition LCD Screen: Simplifies operation with quick access to information, reducing potential errors.
3. Automatic Cutting: Supports fully automated pipe cutting, with custom configurations for pipes up to 120mm in diameter.
4. Special Pipe Handling: Can be equipped with rubber wheels and cutters for specific pipe requirements.
5. Flexible and Efficient Design: Tailored for various materials and specifications, offering high adaptability and rapid processing.
This machine provides a reliable solution for precision plastic tube cutting, ensuring high-quality results and enhanced efficiency.
Model | CP-50S | CP-100S | |
Available Tube Diameter | Max 50mm (can custom) | Max 100mm (can custom) | |
Application | Generally used with the production line, if you need just cutting tube machine please check our other machine | ||
Available Tube Thickness | 0.5 – 6mm (others please check with us) | 0.5 – 6mm (others please check with us) | |
Cutting Length | 3-1000mm or more long | 3-1000mm or more long | |
Knife | cold knife, rotor cutter | cold knife, rotor cutter | |
Power Supply | 220/110V,50/60Hz | 220/110V,50/60Hz | |
Power | 450W | 450W | |
Speed | Automatic speed adjust | Automatic speed adjust | |
Dimensions | 130*80*110cm | 130*80*110cm | |
Weight | 60kgs | 60kgs | |
Application
The CP-50S is a high-precision automatic plastic tube cutting machine for PC, PE, PVC, PP, ABS, PS, and PET pipes with belt feeding mechanism for individual cutting.
CP-50S handles tubes up to 50mm diameter; CP-100S handles up to 100mm. Both support tube thickness of 0.5-6mm with cutting length of 3-1000mm or longer, using cold knife/rotor cutter.
Key features include rotary knife cutting for chipless, flat, smooth cuts without indentation, belt feeding mechanism, high-definition LCD screen for simplified operation, and automatic cutting with custom configurations.
Both models operate on 220/110V, 50/60Hz power (450W) with automatic speed adjustment. Dimensions: 130*80*11cm, weight: 60kg. They require dedicated floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
