CB-V07
| Availability: | |
|---|---|
| Quantity: | |

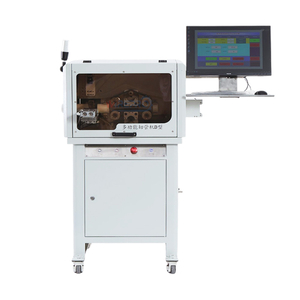

The CB-P06 and CB-V07 are designed for precise cutting of long corrugated tubes at either the wave peak or wave valley. Both machines feature belt traction and a displacement sensor for automatic tube feeding and delivery, enabling high-speed and accurate cutting.
Features:
1. Touchscreen interface with dual-language support (English and Chinese), PLC control, and fully digitalized operation.
2. Automatic pre-release and pre-delivery of tubes, ensuring efficient and precise cutting.
3. Integrated circuit for stable performance and easy maintenance.
4. CB-P06 precisely cuts at the tube wave peak, while CB-V07 accurately cuts at the wave valley.
5. Customizable splitting function available.
Model | CB-V06 | CB-V07 | |
Materials | Corrugated tube | Corrugated tube | |
Feature | Accurate cut tube wave peak | Accurate cut tube wave valley | |
Available Diameter | 4-25mm (custom available) | 4-25mm (custom available) | |
Cutting Length | 10-9999mm | 10-9999mm | |
Cutting Speed | 10-60pcs/min | 10-60pcs/min | |
Power | 220/110V | 220/110V | |
Power Supply | 1500W | 1500W | |
Dimensions | 177*66*155cm | 177*66*155cm | |
Weight | 230kg | 230kg | |
Application
Cutting long corrugated tube wave valley.
The CB-V07 is a visual positioning precision cutting machine designed for precise cutting of long corrugated tubes specifically at the wave valley position, using belt traction and displacement sensor for automated feeding.
It supports tube diameters of 4-25mm (custom available) with cutting length range of 10-9999mm and cutting speed of 10-60 pieces per minute.
CB-V06 cuts at the tube wave peak, while CB-V07 cuts at the wave valley. Both feature touchscreen control, PLC operation, automatic pre-release, and customizable splitting function.
Key features include visual positioning for wave valley cutting, belt traction and displacement sensor for automated length control, PLC control with dual-language touchscreen, and automatic pre-release/pre-delivery mechanisms.
The CB-V07 operates on 220/110V power (1500W) and has dimensions of 177*66*155cm, weighing 230kg. It requires dedicated floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
