CP-50 / CP-100
| Availability: | |
|---|---|
| Quantity: | |
Description

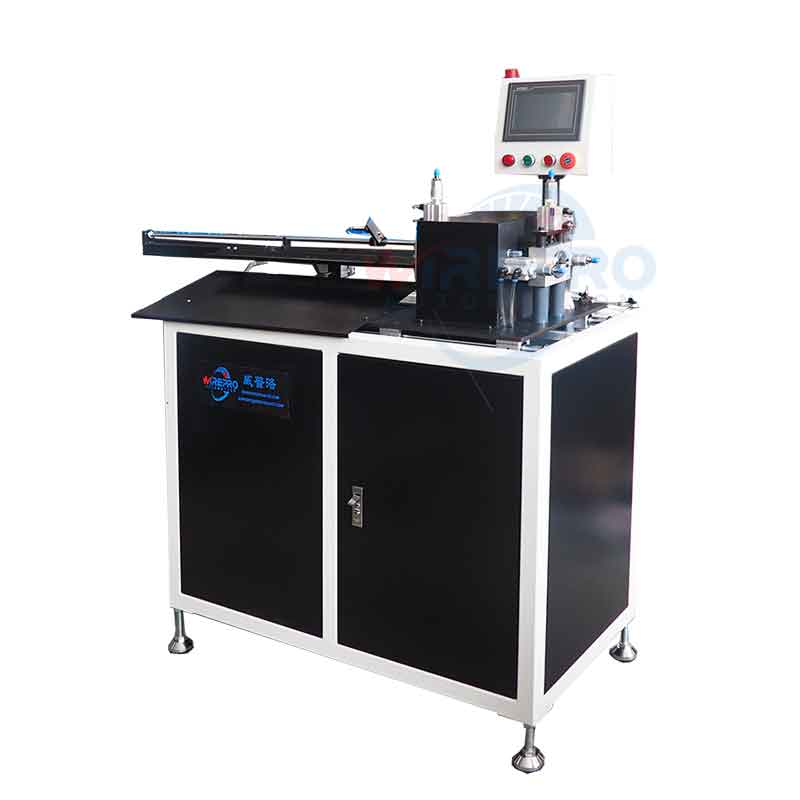

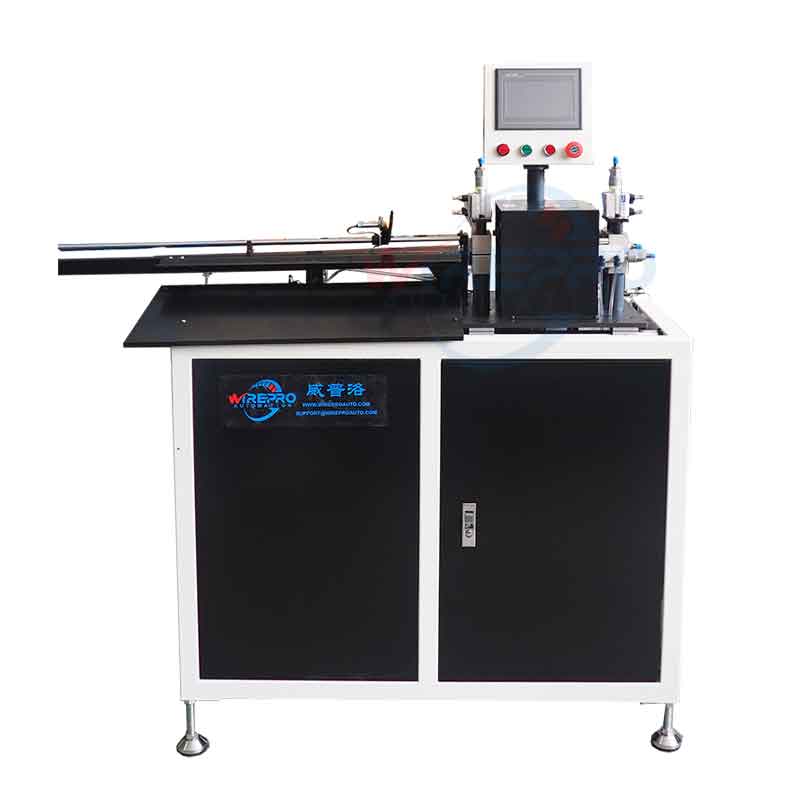

The CP-50 and CP-100 are automatic plastic tube cutting machines engineered for inline operation with plastic tube extrusion production lines. Unlike standalone belt-fed cutting machines, the tube is fed directly from the extrusion line into the cutting station, enabling a truly integrated production workflow.
The CP-50 handles tubes up to 50 mm OD, while the CP-100 accommodates tubes up to 100 mm OD. Other tube diameters can be customized up to a maximum of 125 mm. These machines are suitable for PC, PE, PVC, PP, ABS, PS, PET, and other plastic pipes.

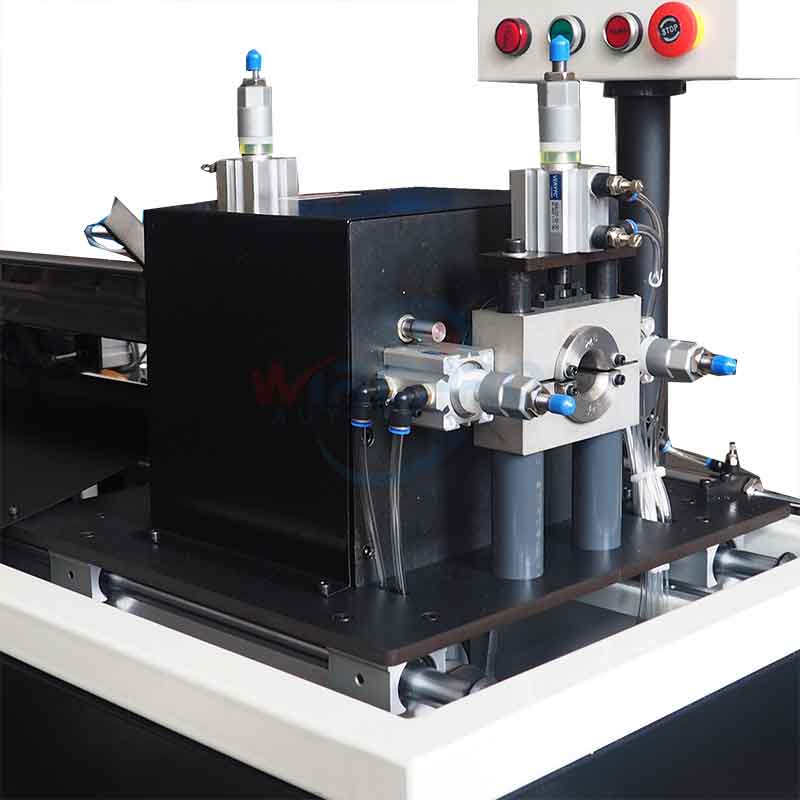

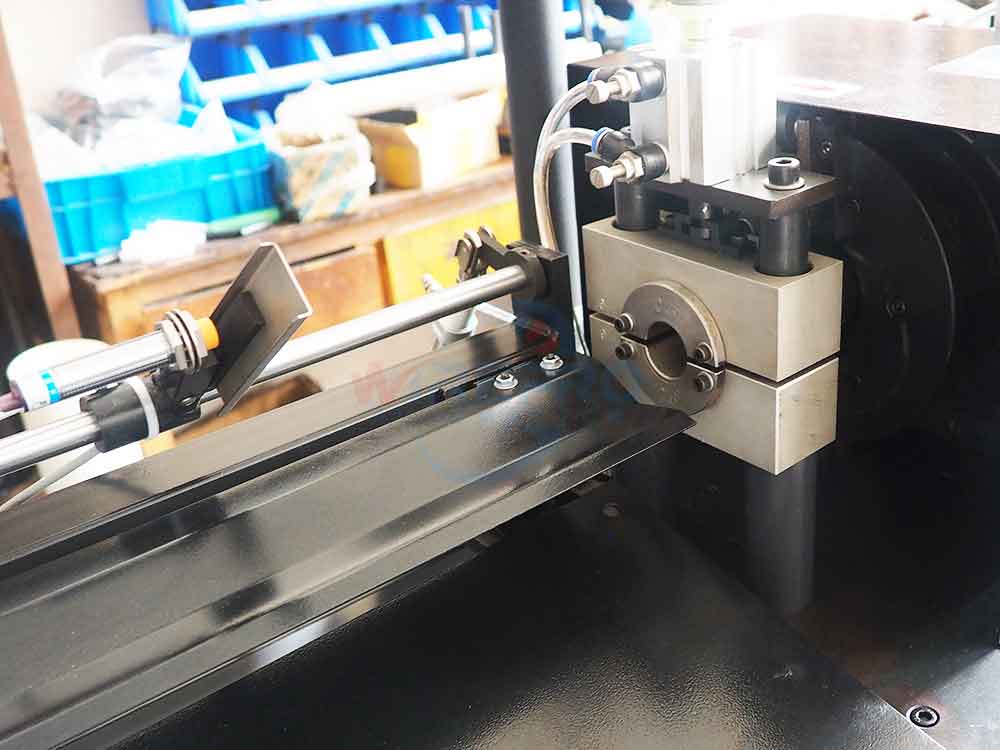

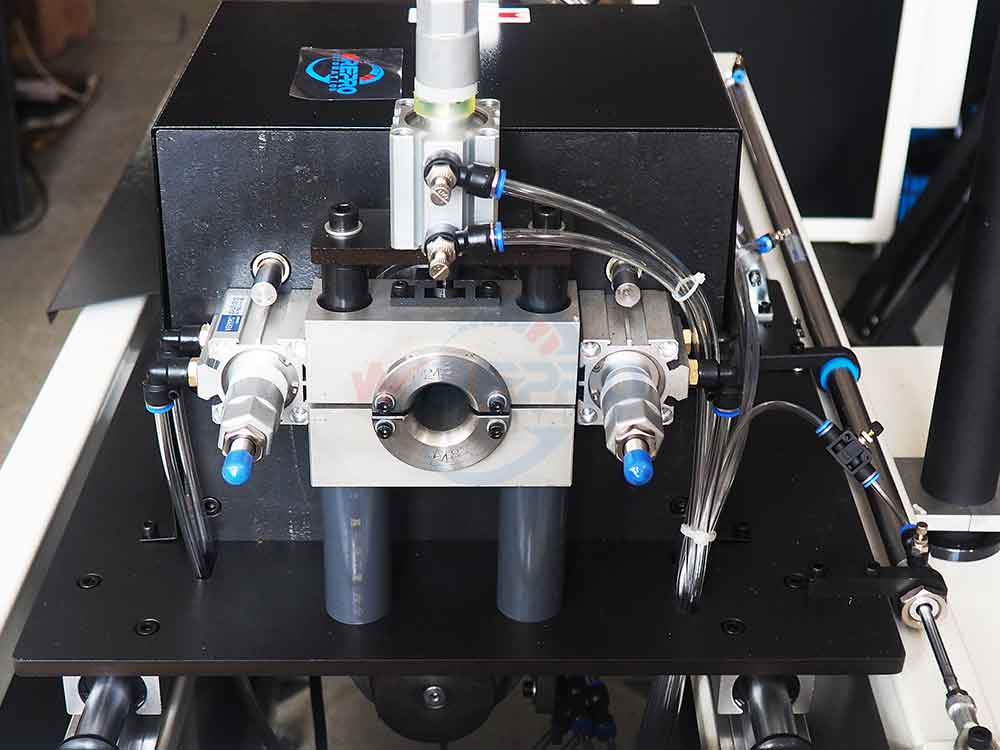

The rotary cold-knife cutting system delivers chipless cutting with a flat, smooth cut surface, helping to prevent indentation, scratches, and tube deformation. Different tube diameters require interchangeable fixtures to secure the tube and prevent movement during cutting.
Key Features:
Inline Extrusion Line Operation – Designed to work directly with a plastic tube extrusion production line for seamless integration.
Chipless Rotary Cutting – The rotary cold-knife system produces a flat, smooth cut without chips, indentation, scratches, or deformation.
Interchangeable Tube Fixtures – Fixtures are changed according to tube diameter, securing the tube during cutting and preventing movement.
Automatic Cutting – Works in sync with the plastic extruder for automatic cutting without manual intervention.
LCD Control Interface – Provides clear parameter display and convenient access to production information, reducing setting errors.
Special Pipe Configuration – Rubber wheels and dedicated cutters can be equipped for special line pipes or sensitive tube surfaces.
Flexible Material Compatibility – Suitable for PC, PE, PVC, PP, ABS, PS, PET, and other plastic tubes.
| Model | CP-50 | CP-100 | CP-125 |
| Available Tube Diameter | Max 50 mm | Max 100 mm | Max 125 mm |
| Application | Generally used with the production line | ||
| Available Tube Thickness | 0.5 – 6 mm (others please check with us) | ||
| Cutting Length | 3 – 1000 mm or more long | ||
| Knife | Cold knife, rotor cutter | ||
| Power Supply | 220/110 V, 50/60 Hz | ||
| Power | 450 W | ||
| Speed | Automatic speed adjust | ||
| Dimensions | 130 × 80 × 110 cm | ||
| Weight | 70 kgs | ||
The CP-50, CP-100, and CP-125 are automatic plastic tube cutting machines for inline operation with extrusion production lines. They process PC, PE, PVC, PP, ABS, PS, and PET tubes up to 50mm, 100mm, and 125mm OD respectively.
Available tube diameter: CP-50 max 50mm, CP-100 max 100mm, CP-125 max 125mm. Tube thickness: 0.5-6mm. Cutting length: 3-1000mm or more. Knife: cold knife/rotor cutter. Power: 220/110V, 450W. Dimensions: 130*80*110cm, weight: 70kg.
Key features include inline extrusion line operation, chipless rotary cutting for flat smooth cuts without indentation or deformation, interchangeable tube fixtures for different diameters, automatic cutting without manual intervention, and LCD control interface.
The machines require 220/110V, 50/60Hz power (450W) and have dimensions of 130*80*110cm, weighing 70kg. They require dedicated floor space and are designed for inline integration with extrusion production lines.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
