HT-E50
| Availability: | |
|---|---|
| Quantity: | |

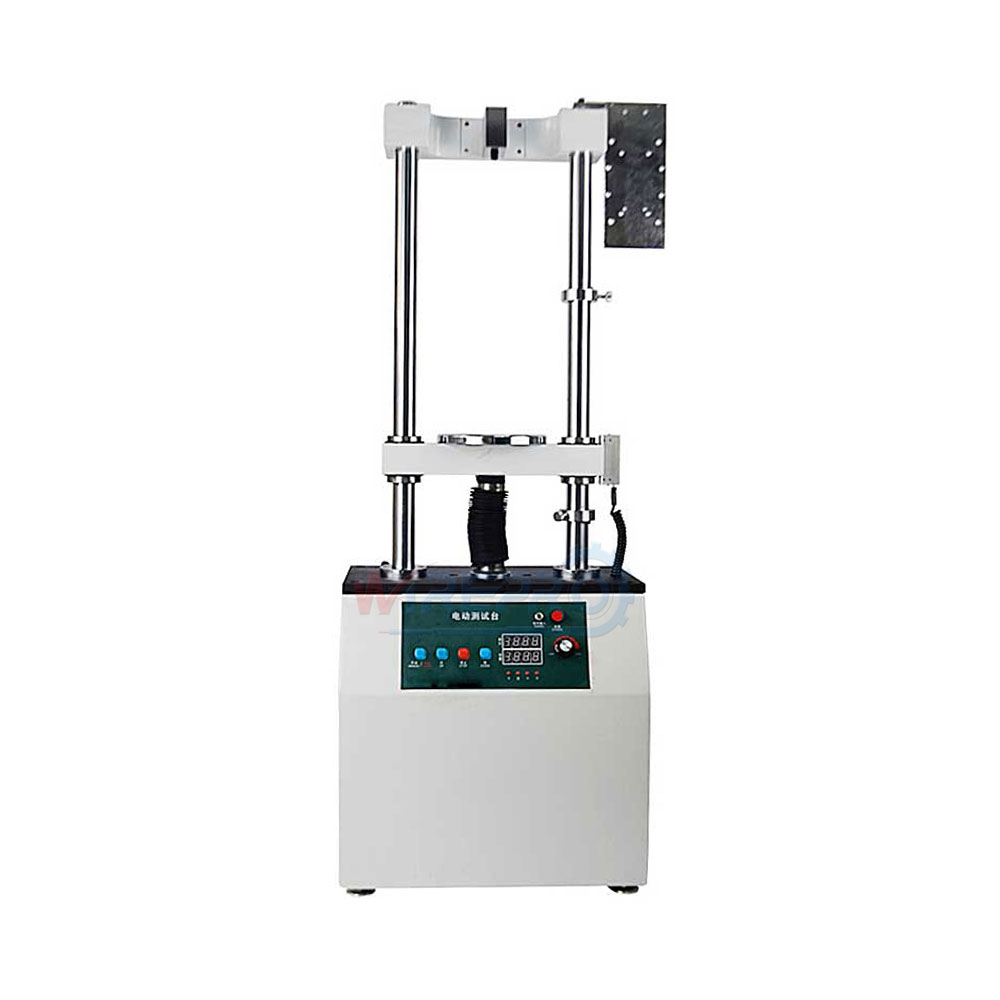

Electric Vertical Push-Pull Load Test Stand

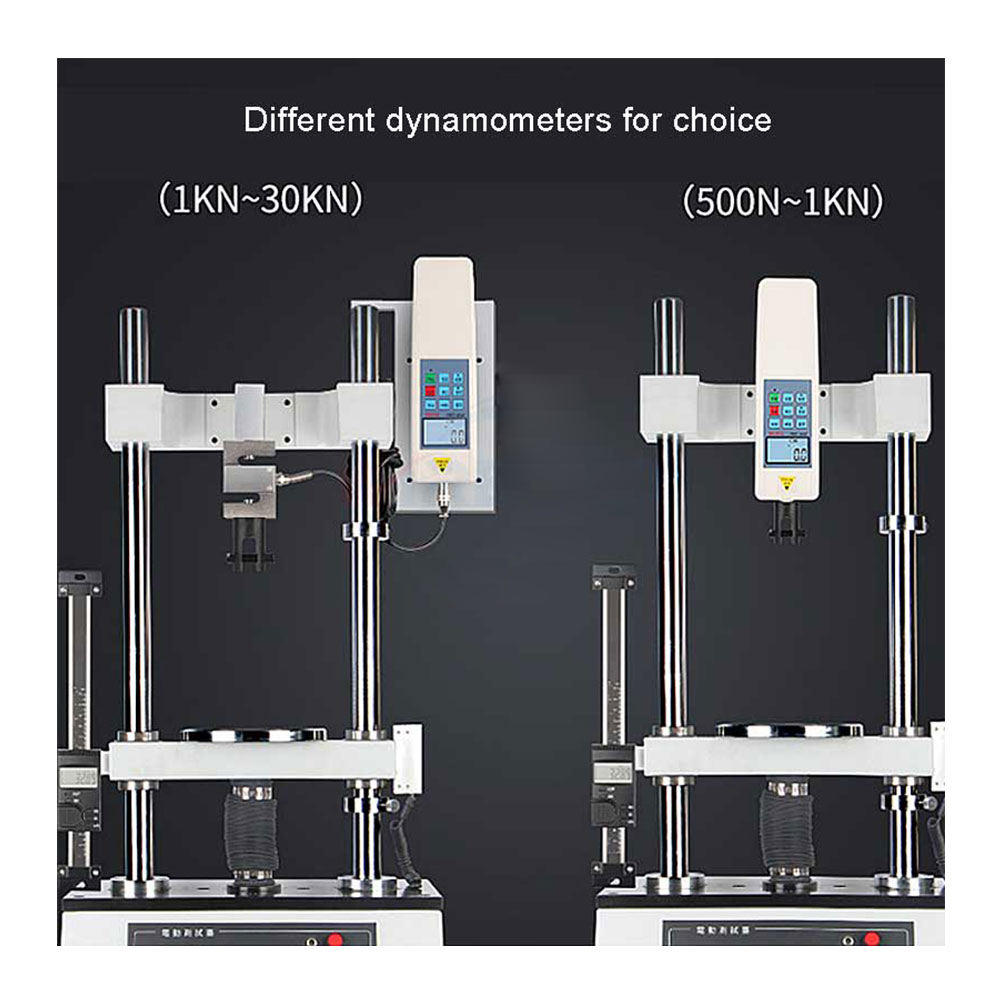

This electric vertical test stand is designed specifically for use with HF series and NK series force gauges. Featuring a dual vertical pole structure, it offers excellent stability, versatility, and ease of use. The stand supports stepless speed adjustment and can switch between manual (crawl) and automatic modes. It is ideal for push-pull load, plug power, and other destructive testing applications across industries such as rubber, plastics, textiles, construction, composites, wire and cable, automotive parts, power machinery, and research institutions.

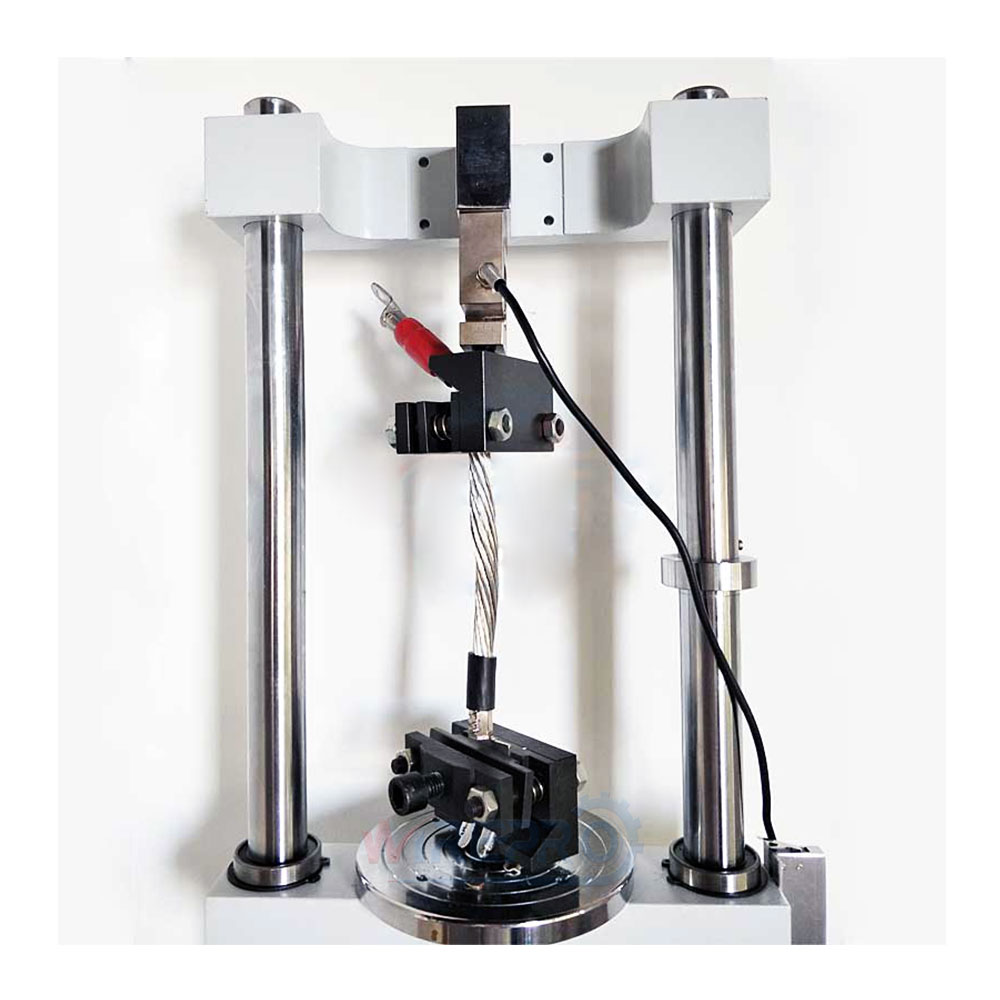

Within the WIREPRO product line, this stand is primarily used for terminal full-force testing.
Key Features:

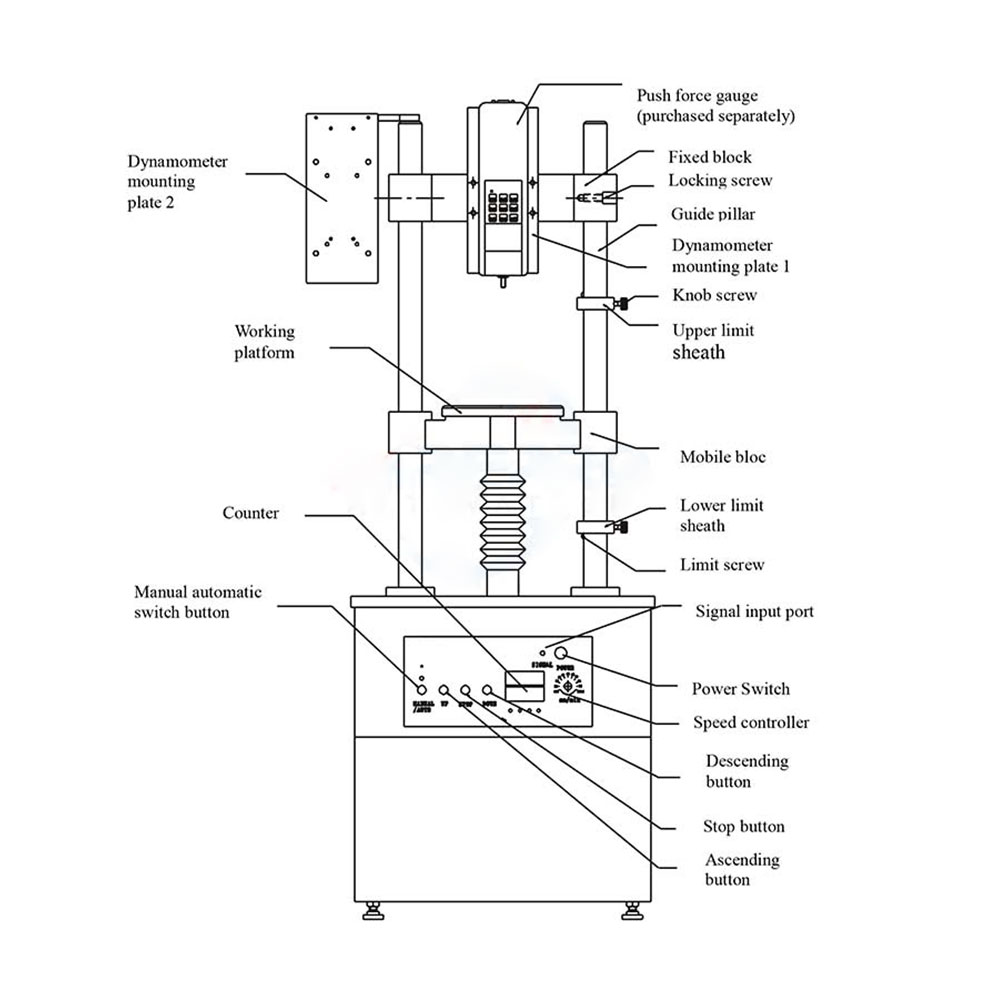

1. Dual Pole Structure: Provides great stability, easy operation, and a wide range of applications.
2. Electric Loading with Stepless Speed Control: Offers precise speed adjustments via gear drive.
3. Compact Design: Ensures a stable and efficient drive system.
4. User-Friendly Operation: Compatible with various fixtures for diverse testing needs.
| Model | HT-E50 | HT-E100 | HT-E200 |
| Max Loading Force | 5000N | 10000N | 20000N |
| Max Stroke | 220mm(220mm-1000mm can be customized) | ||
| Test speed | 15~240 mm/min | 15~240 mm/min | 15~240 mm/min |
| Power supply | AC 220V | ||
| Weight | 56kg | 65kg | 65kg |
| Dimensions | 40*25*105 cm | 43*20*116 cm | 43*20*116 cm |
The HT-E50 and HT-E100 are electric vertical test stands for push-pull load and destructive testing, designed for use with HF/NK force gauges, primarily used for terminal full-force testing in wire harness applications.
HT-E50: 5000N, 56kg, 40*25*105cm. HT-E100: 10000N, 65kg, 43*20*116cm. HT-E200: 20000N, 65kg, 43*20*116cm. All: max stroke 220mm (custom to 1000mm), test speed 15-240 mm/min, AC 220V.
Key features include dual vertical pole structure for stability, stepless speed adjustment, manual/automatic mode switching, compact design, and compatibility with various fixtures for diverse testing needs.
All models require AC 220V power. Dimensions: HT-E50 40*25*105cm (56kg), HT-E100/200 43*20*116cm (65kg). They are benchtop units requiring moderate workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
