HT-M10 / HT-M20 / HT-M30
| Availability: | |
|---|---|
| Quantity: | |
Description

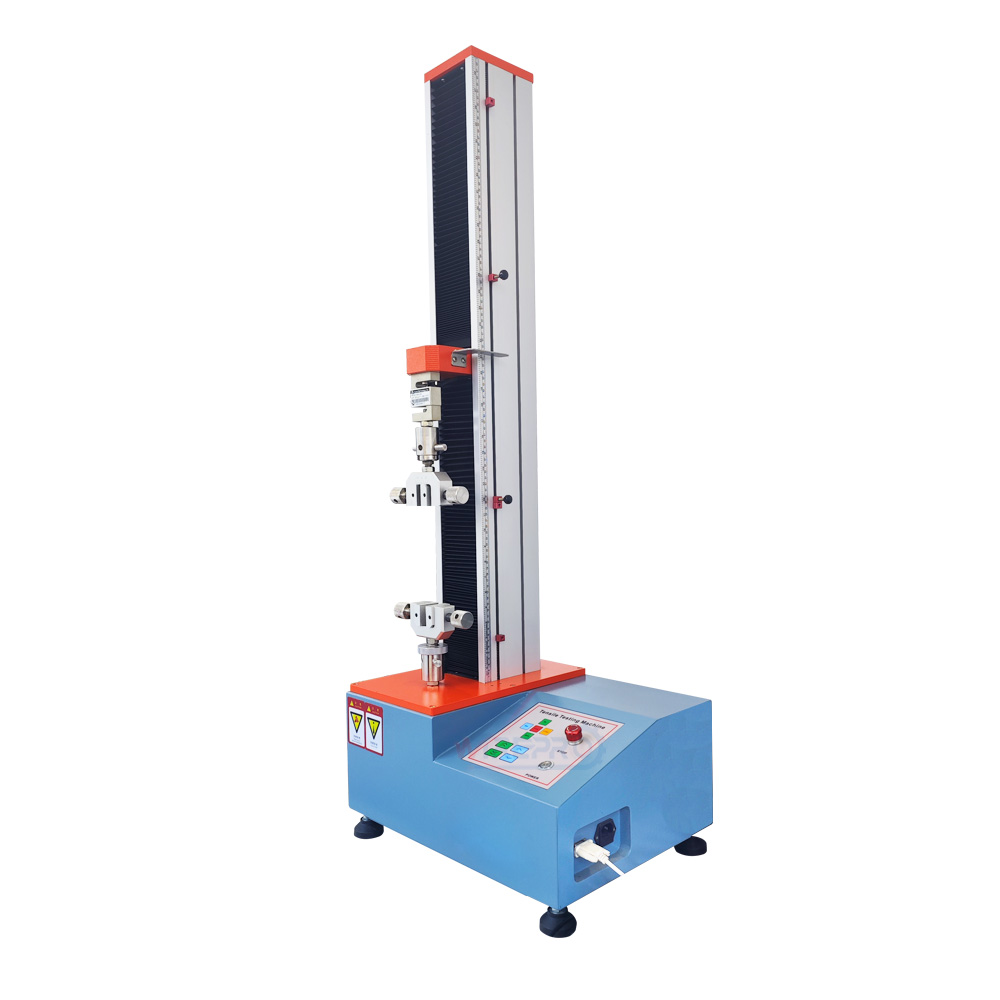

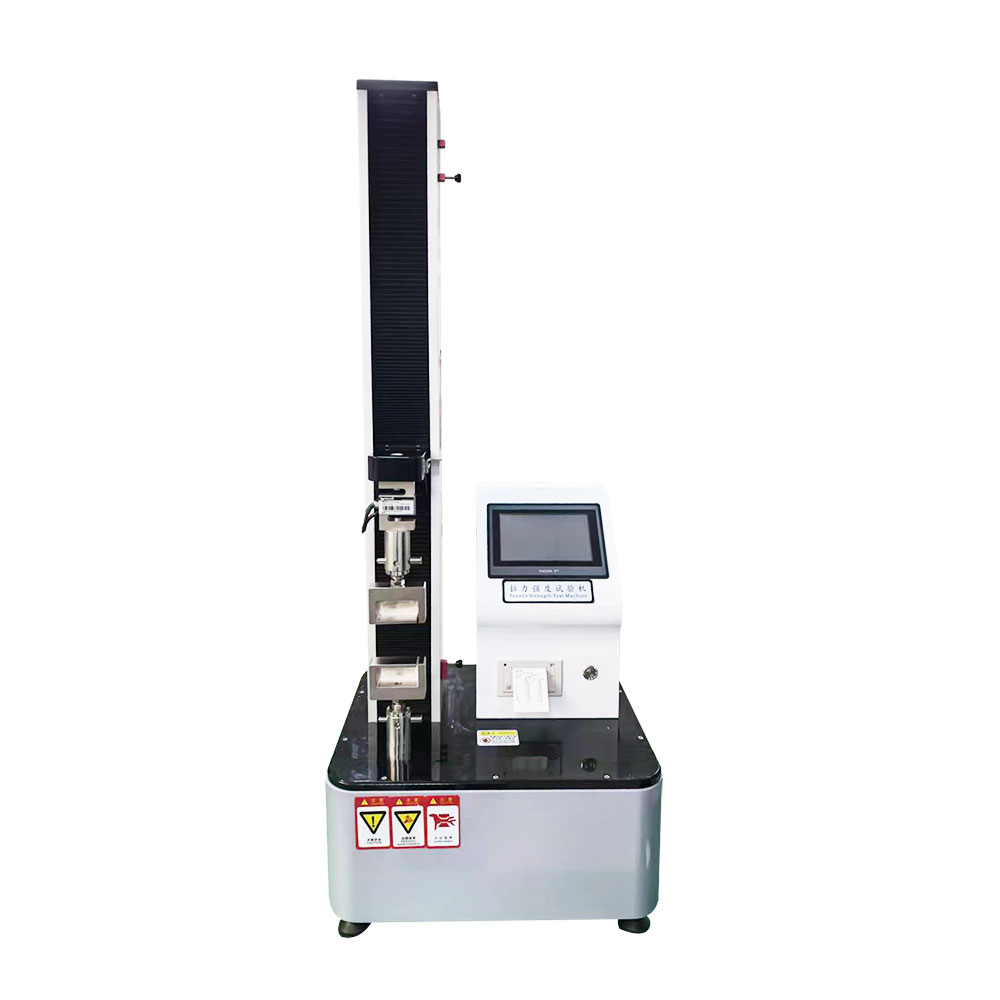

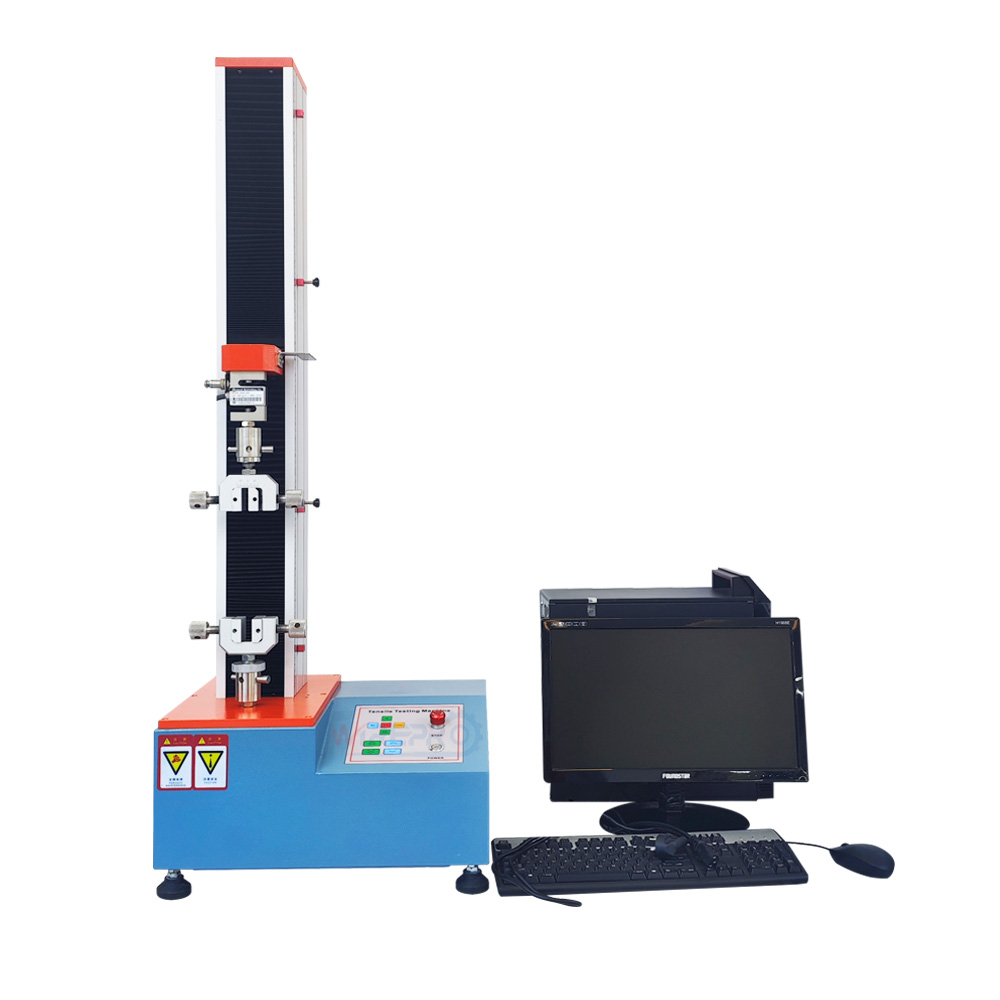

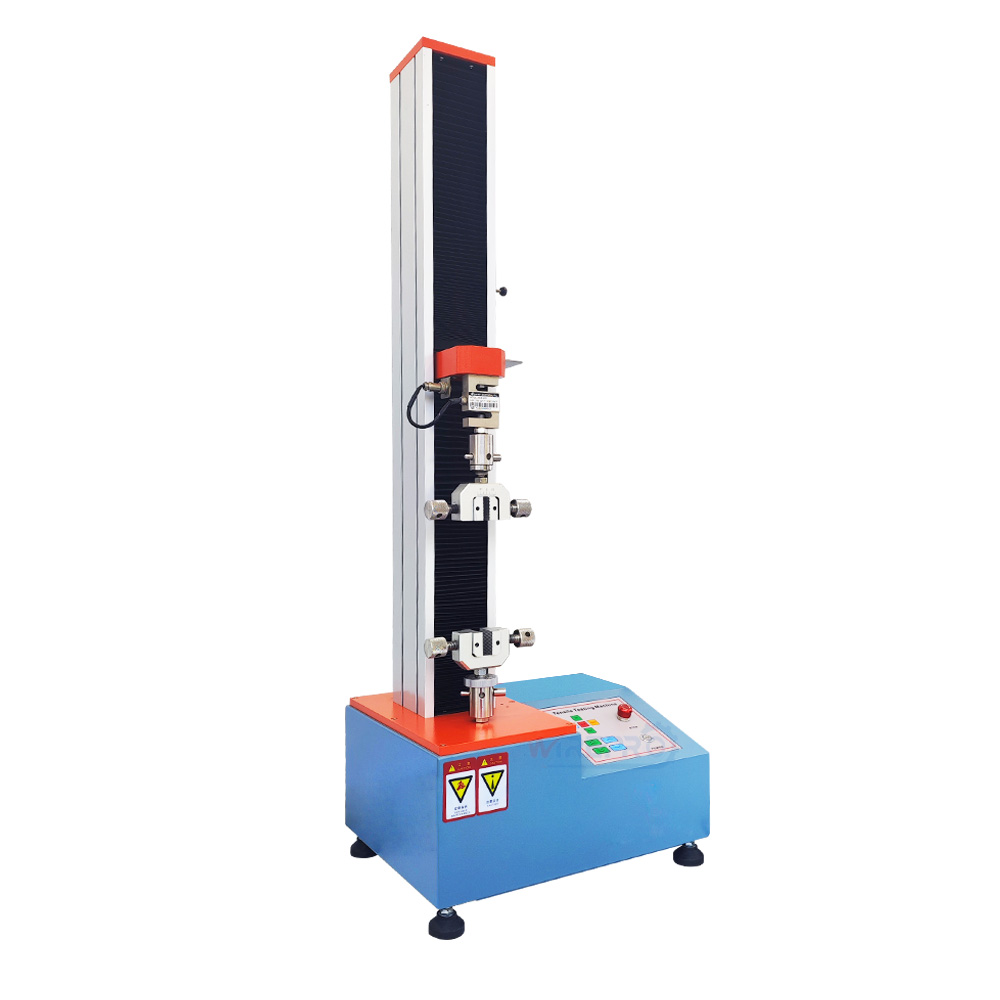

The HT-M10, HT-M20, and HT-M30 are high-precision benchtop universal testing machines designed for material tensile testing, particularly suited for wire harness performance analysis. Integrating precision electronic measurement with robust mechanical transmission, this series delivers exceptional accuracy and sensitivity in load, deformation, and displacement measurement and control — making it an ideal choice for quality control and R&D laboratories.
Key Applications:
With a maximum test force of 3 KN (approx. 300 kg), this versatile tester is suitable for evaluating the mechanical properties of both metals and non-metals, including:
Wire harnesses & cables
Rubber & plastics
Thin films & textiles
Lightweight components
Control Modes:
The closed-loop control system enables precise testing under stress, strain, and displacement control modes to accommodate different testing standards and requirements.
Standard Configuration & Safety Features:
High-Precision Load Cell – Includes both tension and compression sensors, calibrated to maximum capacity.
Mechanical Safety – Equipped with electronic limit protection to prevent over-travel.
Smart Overload Protection – Automatically stops operation when the load exceeds 10% of maximum capacity.
Convenient Crosshead Return – Supports both manual and automatic return-to-start function upon test completion.
Standard Accessories – Includes a complete set of tensile grips and fixtures.
| Model | HT-M10 | HT-M20 | HT-M30 |
| Max Loading Force | 1000N | 2000N | 3000N |
| Effective tensile height (length) | 500mm | 500mm | 150mm |
| Accuracy Class | 0.5 level | ||
| Effective Measurement Range | 0.4%-100% | ||
| Force Measurement Accuracy | Within ±0.5% of the indicated value | ||
| Testing machine resolution | Maximum load 1/±250000 yards, no difference between inner and outer speeds, and constant resolution throughout the entire range | ||
| Effective test width | 150mm | ||
| Test speed range | 50-300mm/min stepless speed adjustment | ||
| Display Unit | kg, N, lb | ||
| Power supply | AC 220V | ||
| Weight | 80kg | ||
| Dimensions | 50*41*128cm | ||
The HT-M10, HT-M20, and HT-M30 are high-precision benchtop universal testing machines designed for material tensile testing, particularly wire harness performance analysis for quality control and R&D laboratories.
HT-M10: 1000N, HT-M20: 2000N, HT-M30: 3000N. All feature 0.5 accuracy class, 0.4%-100% effective measurement range, ±0.5% force accuracy, 50-300mm/min speed range, and 150mm test width.
The versatile tester is suitable for evaluating wire harnesses, cables, rubber, plastics, thin films, textiles, and lightweight components in quality control and R&D applications.
The HT series requires AC 220V power and has dimensions of 50*41*128cm, weighing 80kg. It is a benchtop unit requiring moderate workspace.
The machine features a closed-loop control system with stress, strain, and displacement control modes. Display units include kg, N, and lb with stepless speed adjustment from 50-300mm/min.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
