TP-T18
| Availability: | |
|---|---|
| Quantity: | |

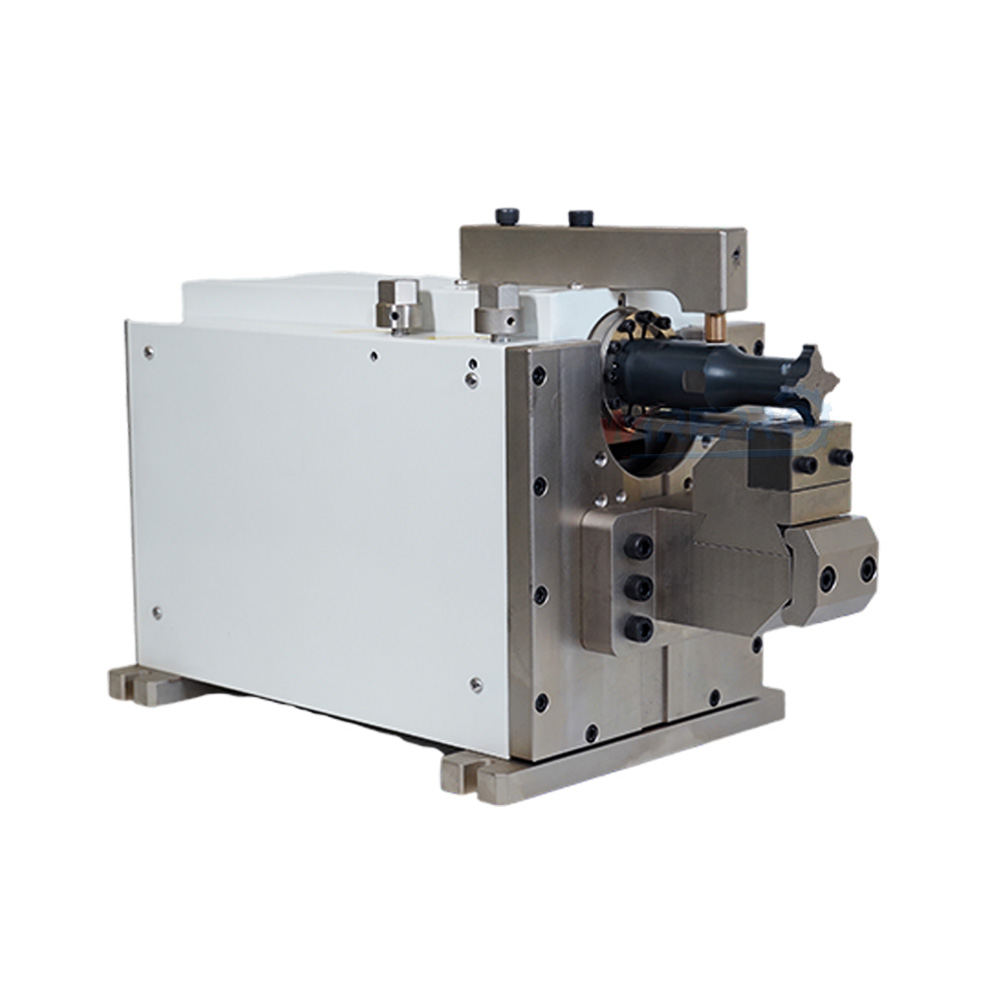

The TP-T18 ultrasonic welding machine utilizes advanced ultrasonic technology, featuring independently developed components such as generators, horns, and welding heads. This innovation significantly enhances the machine’s overall performance, ensuring efficiency and reliability in wire harness welding.
Key Features:
1. Advanced Motion System: Equipped with a four-cylinder double-solenoid valve system for smooth operation and ease of use.
2. Parameter-Based Welding: Simply select the appropriate welding parameters and welding head based on the wire harness's standard square width to start the process effortlessly.
3. Empty-Weld Prevention: Includes a built-in function to prevent empty welding, effectively protecting the welding head from unnecessary damage.
4. Real-Time Power Monitoring: Welding power is monitored in real time, ensuring high precision and maximizing the yield rate.
5. Secure and Data-Friendly: Features password protection, parameter storage, and the ability to store welding data for enhanced security and traceability.
6. Cost-Effective Maintenance: Incorporates an error-proof function and a low-maintenance design, reducing overall operational costs.
7. Multiple Welding Modes: Supports various welding modes, offering flexibility to meet diverse production needs.
Model | TP-T18 |
Welding capacity | Wire size range: 1-18mm2 |
Production Rate | About 0.7s/pcs, based on the wires |
Power Supply | 220VAC,50Hz |
Power | 3000W |
Dimension | 23*50*53 cm + 52*28*37cm |
Weight | 50kgs |
Application
The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on.
The TP-T18 is an ultrasonic welding machine designed for wire-to-metal terminal welding applications. It is widely used in automotive, electronics, motor, communication, and instrumentation industries for wire harness assembly.
It supports wire sizes from 1-18mm² with a production rate of approximately 0.7 seconds per piece. It operates on 220VAC, 50Hz power (3000W) with dimensions of 23*50*53cm (main unit) + 52*28*37cm and weighs 50kg.
Key features include a four-cylinder double-solenoid valve motion system, parameter-based welding with preset programs, empty-weld prevention, real-time power monitoring, password protection with data storage, multiple welding modes, and cost-effective low-maintenance design.
The TP-T18 requires 220VAC, 50Hz power (3000W) and has dimensions of 23*50*53cm (main unit) + 52*28*37cm, weighing 50kg. It is a compact unit suitable for benchtop installation.
The machine allows parameter-based welding—simply select the appropriate welding parameters and welding head based on the wire harness's standard square width. Supports multiple welding modes for diverse production needs. Free sample testing is offered.
The TP-T18 includes empty-weld prevention to protect the welding head, real-time power monitoring for consistent quality, password protection and parameter storage for security, and the ability to store welding data for traceability.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
