TP-W40
| Availability: | |
|---|---|
| Quantity: | |

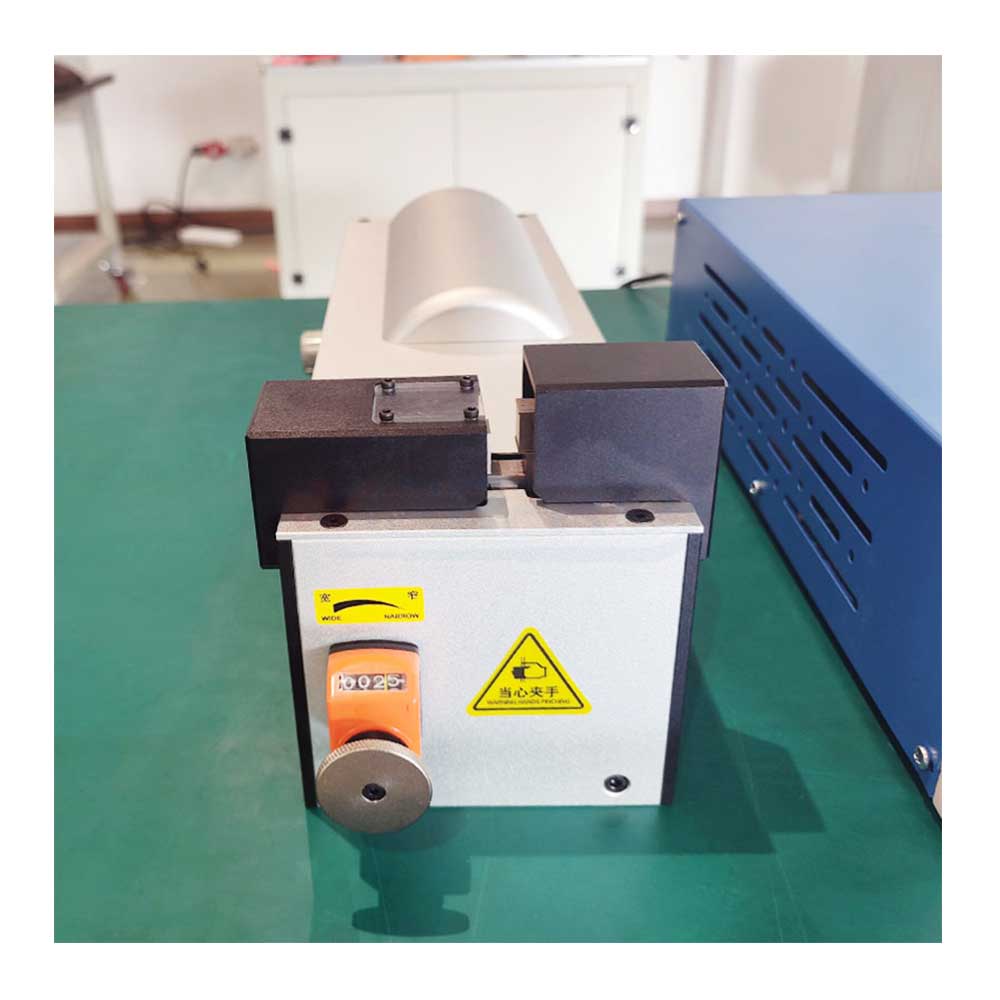

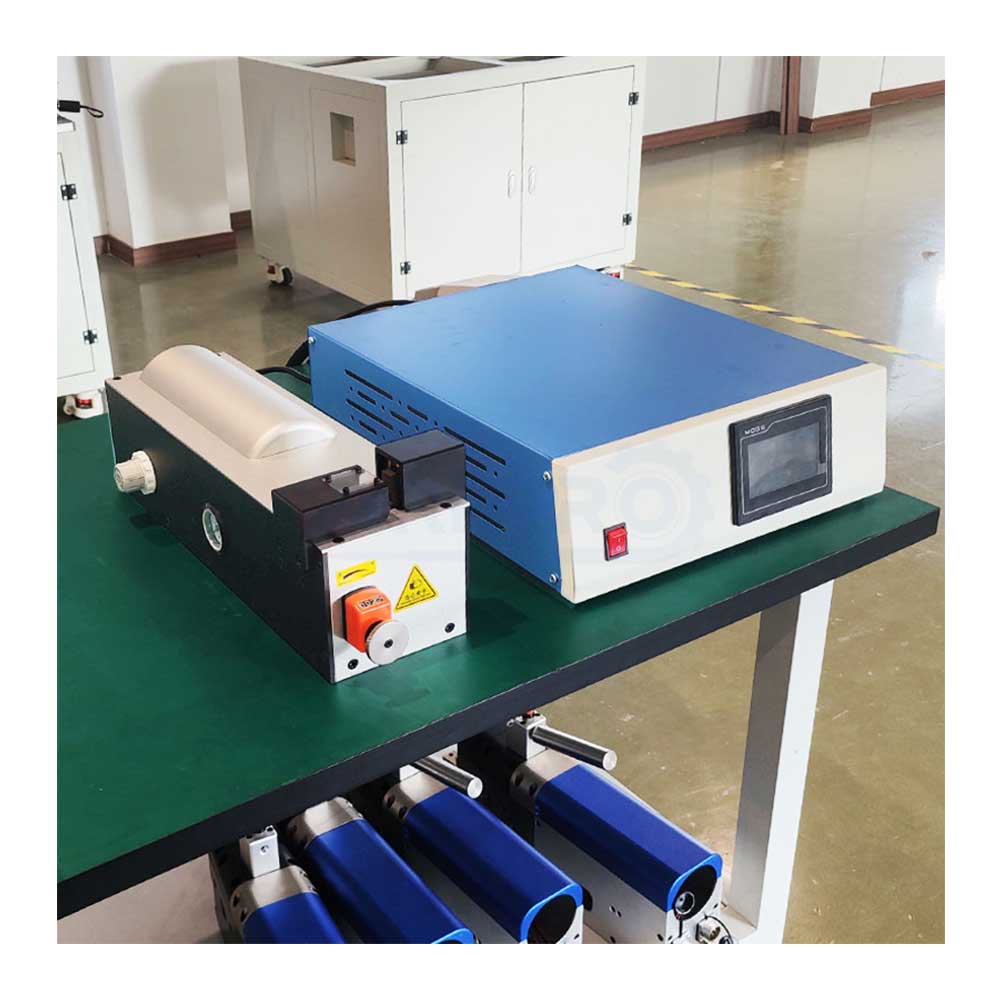

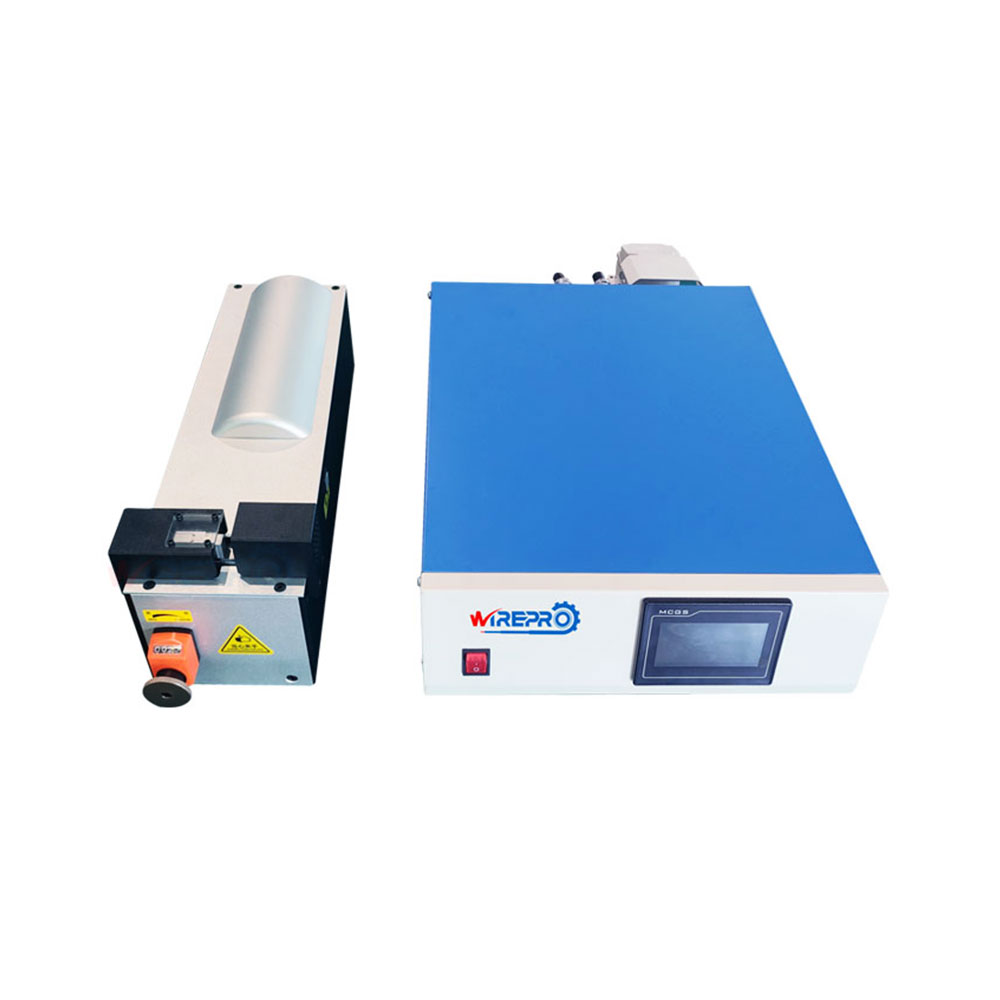

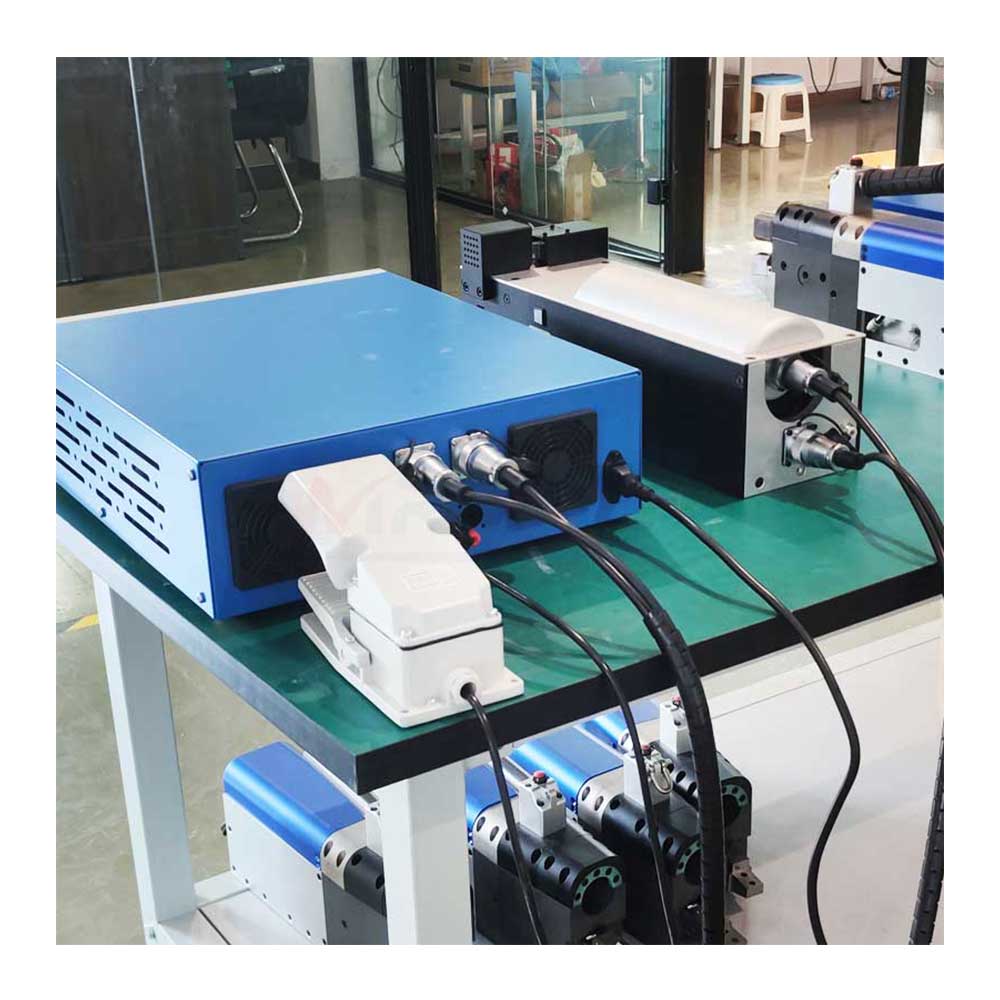

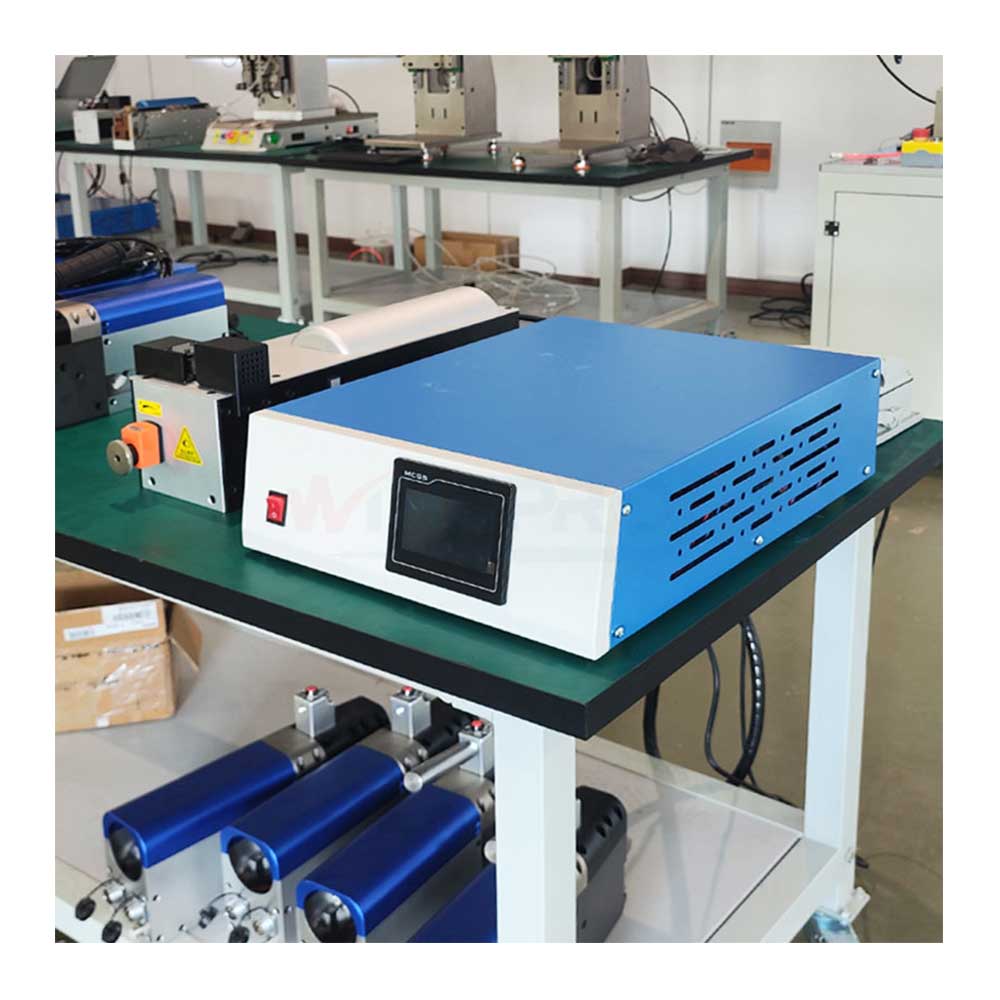

TP-W40 Ultrasonic Wire Harness Welding Machine
The TP-W40 features high-precision servo motion systems for superior welding performance with copper and aluminum wires. This highly automated machine offers multiple welding modes along with advanced functions including data storage and air pressure detection.
Key Features:
1. Servo Motor & CNC Control: Ensures precision welding with low maintenance requirements
2. User-Friendly Touchscreen: Intuitive interface for easy parameter setup
3. Pre-Set Welding Programs: Stores optimized parameters for different wire sizes with adjustable settings
4. Anti-Dry Welding Protection: Safeguards welding heads from damage
5. Real-Time Power Monitoring: Ultrasonic scanning ensures consistent weld quality
6. Pneumatic Motion System: Simple, reliable operation
7. Compact All-in-One Design: Space-saving integrated structure
With its combination of advanced automation and precision controls, the TP-W40 delivers efficient, high-quality wire harness welding.
| Model | TP-W40 |
| Welding capacity | Wire size range: 2-40mm2 |
| Production Rate | About 0.7s/pcs, based on the wires |
| Power Supply | 220VAC,50Hz |
| Power | 4000W |
| Dimension | 640*905*1050 mm |
| Weight | 96kgs |
Application
The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on.
The TP-W40 is a semi-automatic high-frequency digital ultrasonic welding machine for welding copper and aluminum wires. It is widely used in automotive, electronics, motor, communication, and instrumentation industries for wire harness welding.
It supports wire sizes from 2-40mm² with a production rate of approximately 0.7 seconds per piece. It operates on 220VAC, 50Hz power (4000W) with dimensions of 640*905*1050mm and weighs 96kg.
Key features include a high-precision servo motor with CNC control, user-friendly touchscreen, pre-set welding programs for different wire sizes, anti-dry welding protection, real-time power monitoring, and a pneumatic motion system for reliable operation.
The TP-W40 requires 220VAC, 50Hz power (4000W) and has dimensions of 640*905*1050mm, weighing 96kg. It is a floor-standing unit requiring dedicated floor space.
The machine stores pre-set welding programs for different wire sizes with adjustable settings. The touchscreen allows easy parameter selection and fine-tuning. Free sample testing is offered to optimize welding parameters.
The TP-W40 includes anti-dry welding protection to safeguard the welding head, real-time ultrasonic power monitoring for consistent weld quality, and air pressure detection for enhanced precision and reliability.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
