TU-WS20
| Availability: | |
|---|---|
| Quantity: | |

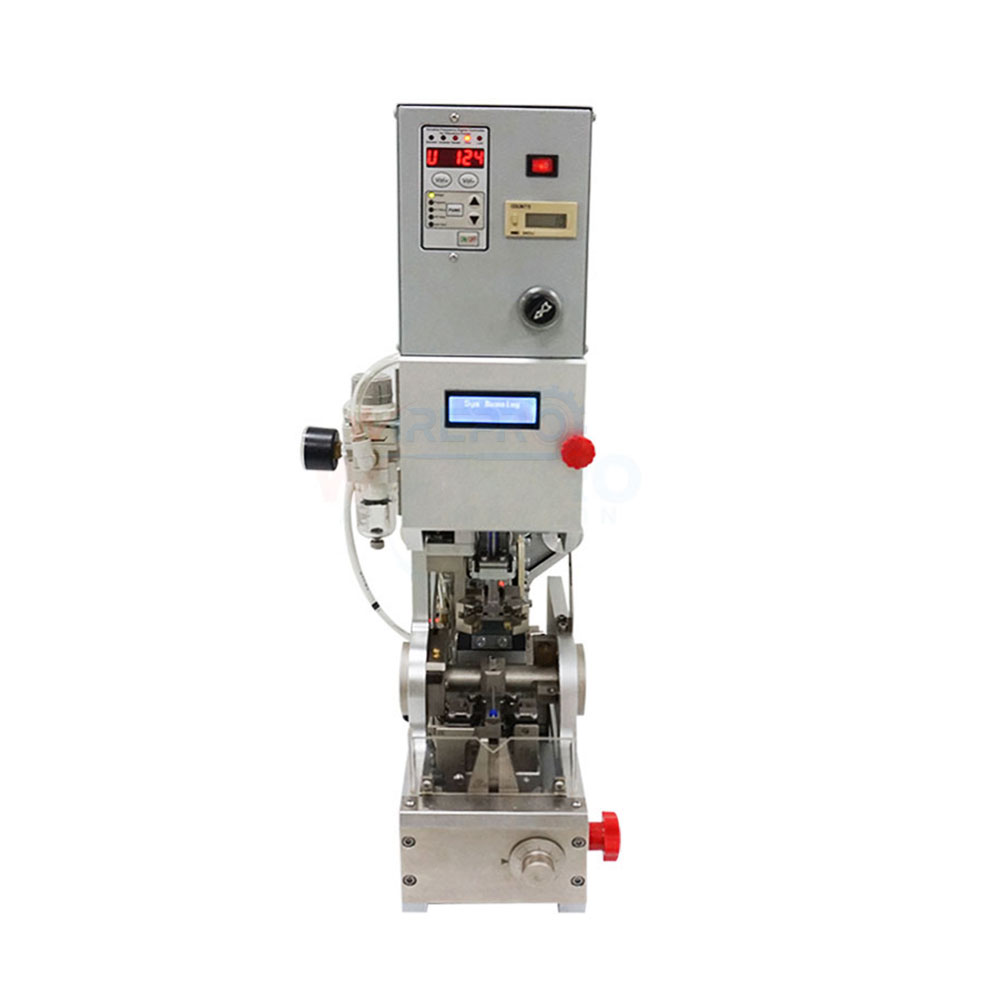

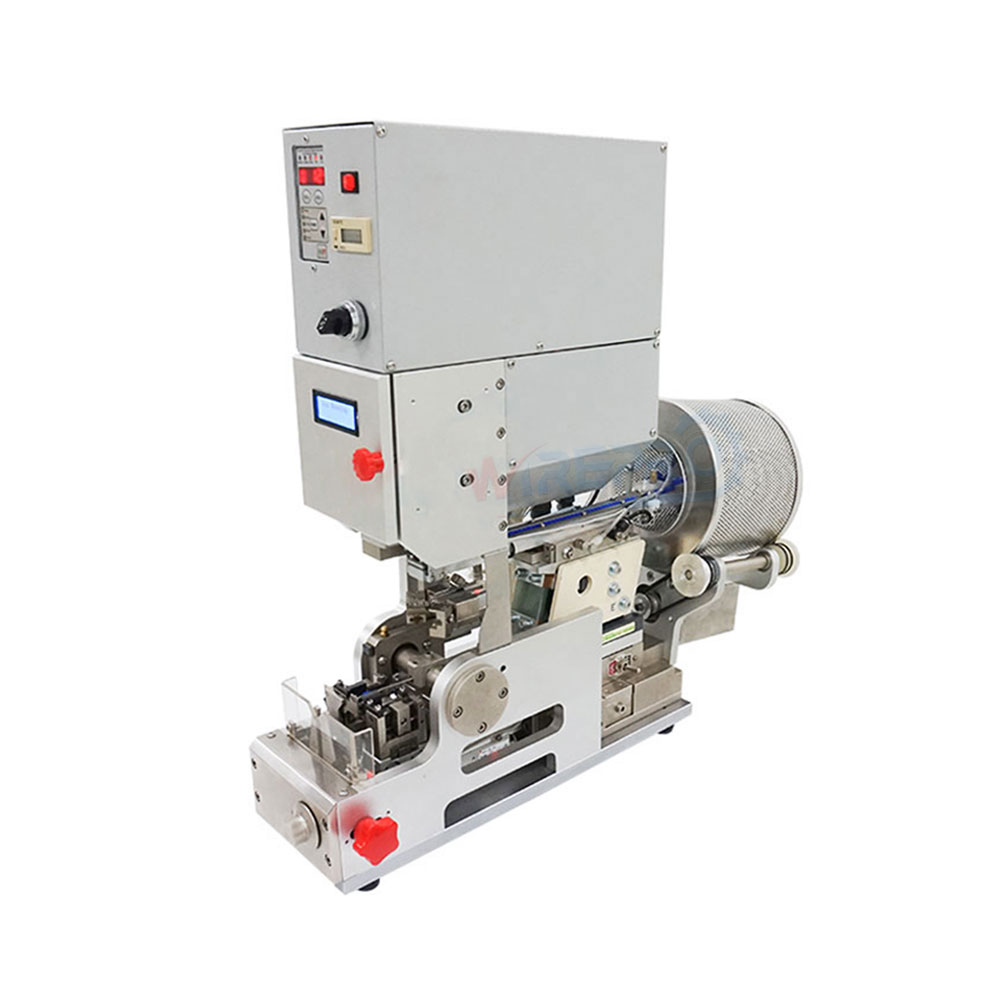

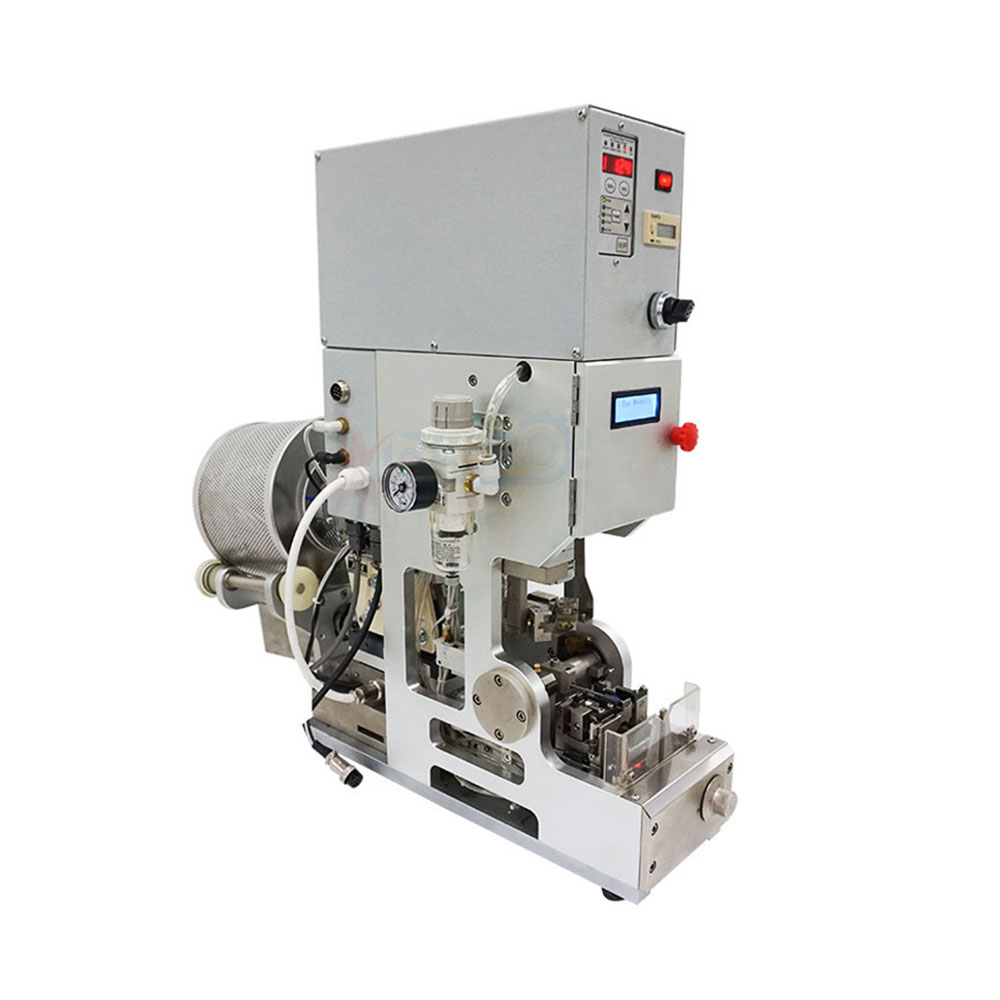

The TU-WS20 is an advanced semi-automatic solution for efficient wire seal loading operations. Featuring an intelligent automatic feeding system, operators simply position the wire, and the machine completes the seal loading process automatically - significantly enhancing productivity and ease of operation.
Features:
1. Precision PLC Control: Automated software ensures high-speed, accurate waterproof plug insertion
2. Multi-Sensor Monitoring: Multiple detection channels guarantee insertion precision while minimizing material waste
3. Self-Diagnostic Function: Automatic fault detection with clear error display

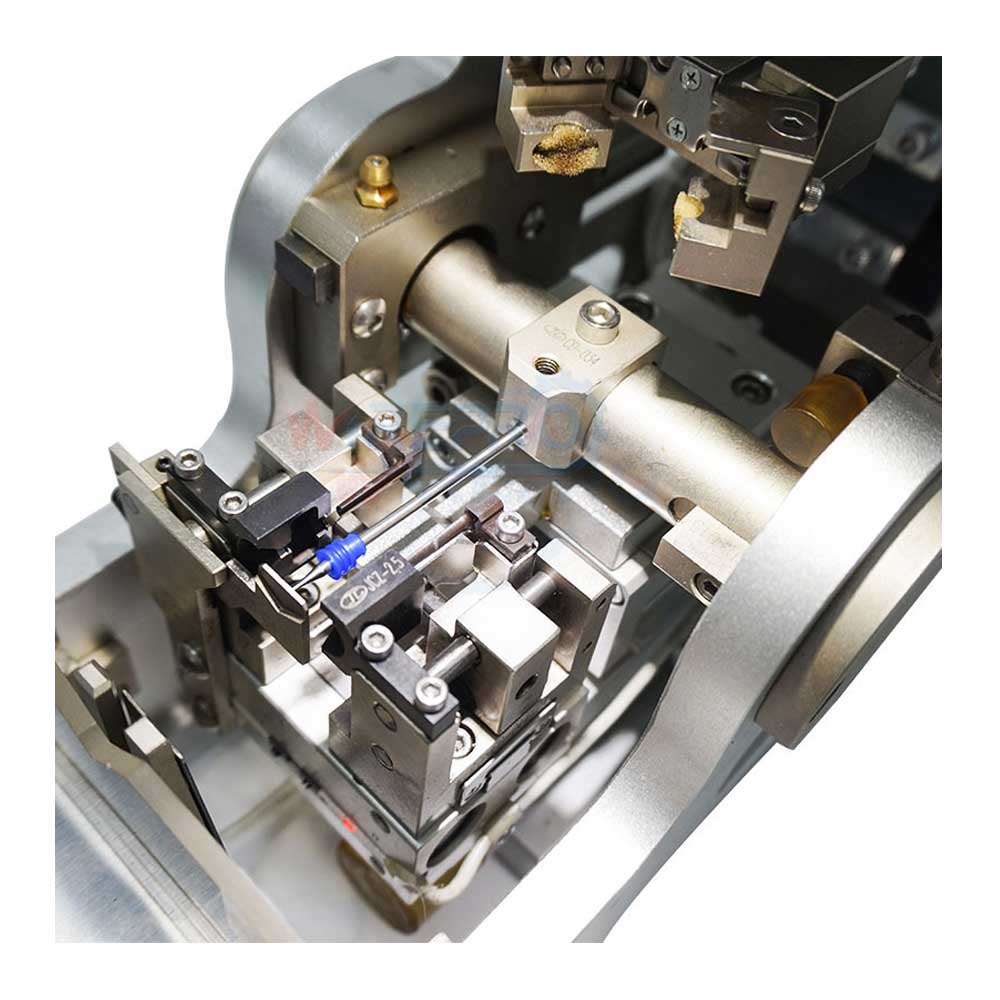

4. Modular Tooling System: Quick-change design accommodates various waterproof plug specifications
5. Dual-Function Capability: Processes both hardshell waterproof plug insertion and wire sheath removal
Model | TU-WS20 |
Wire seal size (Diameter*Length) | ≤φ16*15(Max) |
Production rayte | 70pcs/min |
Air Supply | 0.5~0.7Mpa |
Power Supply | AC 220/110V, 50/60Hz |
Power Rating | 80W |
Dimension | L600*W600*H260 |
Weight | 35KG |

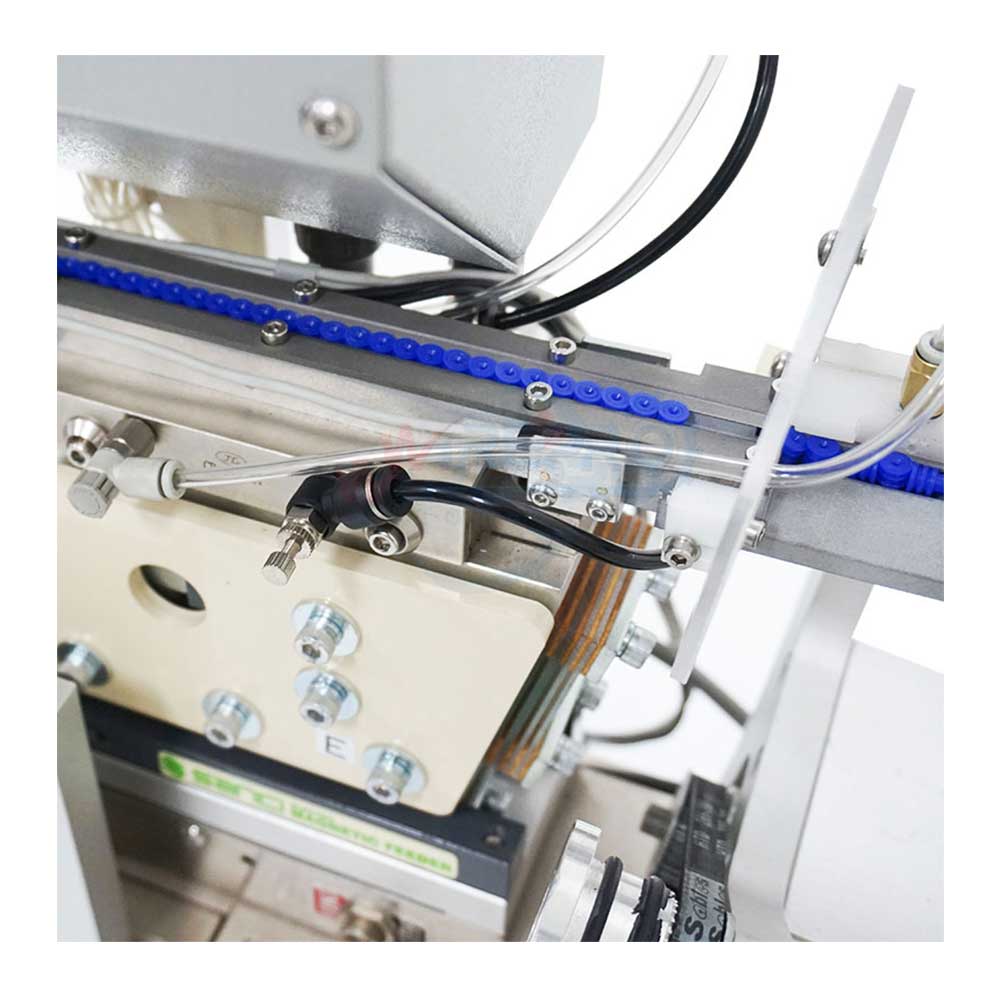

Notice: need to customize feeding rail according to different wire seal | |
Application
The TU-WS20 is a semi-automatic wire seal loading machine featuring an intelligent automatic feeding system for efficient waterproof connector seal insertion. It processes both hardshell waterproof plug insertion and wire sheath removal.
It supports wire seal sizes up to φ16*15mm (max) with a production rate of 70 pieces per minute. It requires 0.5-0.7MPa air supply and operates on AC 220/110V, 50/60Hz (80W).
Key features include precision PLC control for high-speed accurate insertion, multi-sensor monitoring for precision and minimal waste, self-diagnostic function with clear error display, and modular tooling system for quick changeovers.
The TU-WS20 requires AC 220/110V, 50/60Hz power (80W) and 0.5-0.7MPa air supply. Dimensions: L600*W600*H260mm, weight: 35kg. It is a benchtop unit requiring moderate workspace.
The modular tooling system enables quick-change for various waterproof plug specifications. Custom feeding rails are required for different wire seals. The self-diagnostic function ensures reliable operation across changeovers.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
