HL-F30
| Availability: | |
|---|---|
| Quantity: | |

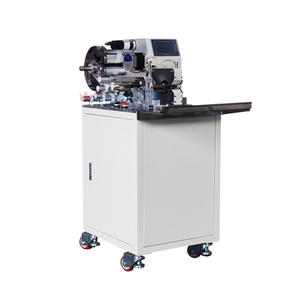

Semi-Automatic Fold Labeling Machine for Wires and Wire Harnesses
This semi-automatic fold labeling machine is designed for high-speed and precise folding and labeling of various wire and wire harness products. It is ideal for different types of cables, including round wires, flat wires, twisted wires, and loose wires, ensuring efficient and professional results.
Key Features:
1. Precision Positioning: Equipped with a servo motor, achieving a labeling tolerance of ±0.2mm, far exceeding manual accuracy and delivering consistent, high-quality label appearance.
2. Smooth and Stable Operation: Optimized mechanical structure design ensures seamless label delivery without disruptions.
3. Wide Applicability: Easily adjustable to handle the folding and labeling of wires and wire harnesses of different specifications.
4. User-Friendly Adjustment: No need for manual screw adjustments—simply input the label size and wire diameter directly on the digital display for quick setup.
5. Enhanced Efficiency: Overcomes the limitations of slow manual labeling, significantly improving production speed while reducing labor costs.
Model | HL-F30 |
Available Materials | Round shape cable, tube and others |
Available Diameter | 1.6-30mm ( based on materials, other size can be customized) |
Available label | Width: 5~90 mm (customized oversize) |
Available label roller | Outer diameter: Max 240mm |
Labeling precision | ± 0.2mm |
Labeling speed | 1000-1500pcs/hour |
Air connection | 0.4-0.6 Mpa |
Power supply | 220V/50Hz; 110V/60Hz |
Power | 250W |
Dimensions | 580*680*1000mm |
Weight | 88kg |
Application
Applicable wires: earphone cable, USB cable, power cord, air pipe, water pipe, etc.;
Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.;
Application examples: headphone cable labeling, power cord labeling, optical fiber cable labeling, cable labeling, tracheal labeling, warning label labeling machine, etc.
The HL-F30 is a semi-automatic fold labeling machine for high-speed and precise folding and labeling of wires and wire harnesses, including round wires, flat wires, twisted wires, and loose wires.
It supports cable/tube diameters of 1.6-30mm (customizable). Label width: 5-90mm (customizable oversize); label length: 20-350mm (customizable oversize). Label roller OD ≤240mm, ID ≤76mm.
Key features include servo motor precision with ±0.2mm tolerance, digital display adjustment without manual screws, smooth and stable operation, and significantly improved production speed while reducing labor costs.
The machine achieves labeling speed of 1000-1500 pieces/hour (depending on product size and operator speed) with labeling precision of ±0.2mm.
The HL-F30 requires 220V/50Hz or 110V/60Hz power (250W) and 0.4-0.6 MPa air connection. Dimensions: 580*680*1000mm, weight: 88kg. It requires dedicated floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
