HL-A20
| Availability: | |
|---|---|
| Quantity: | |

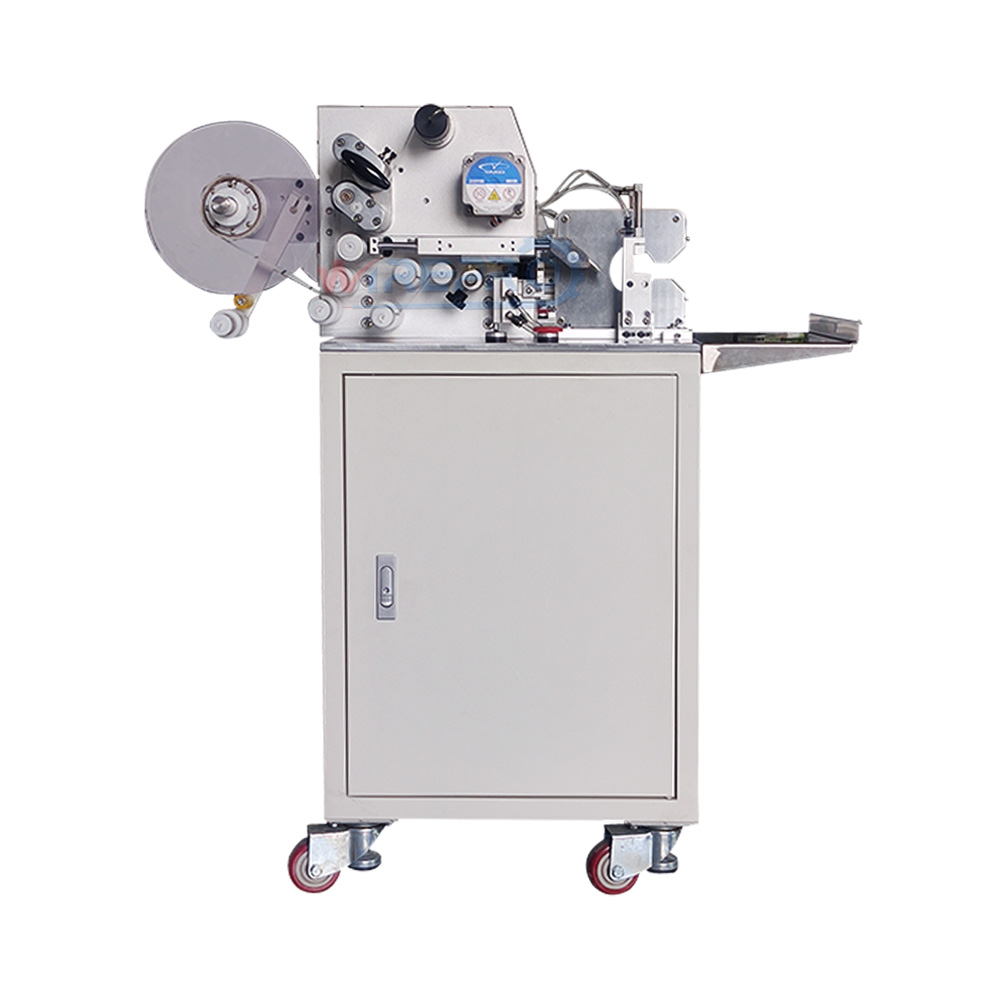

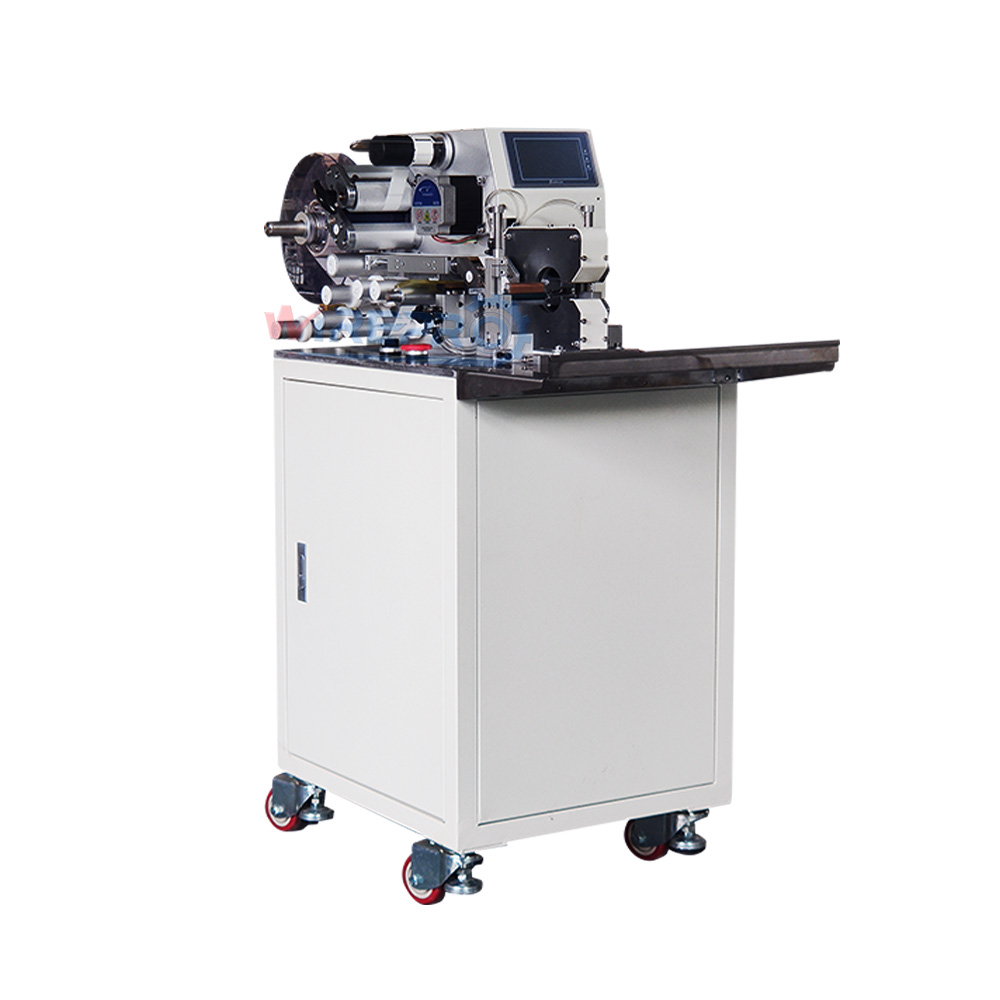

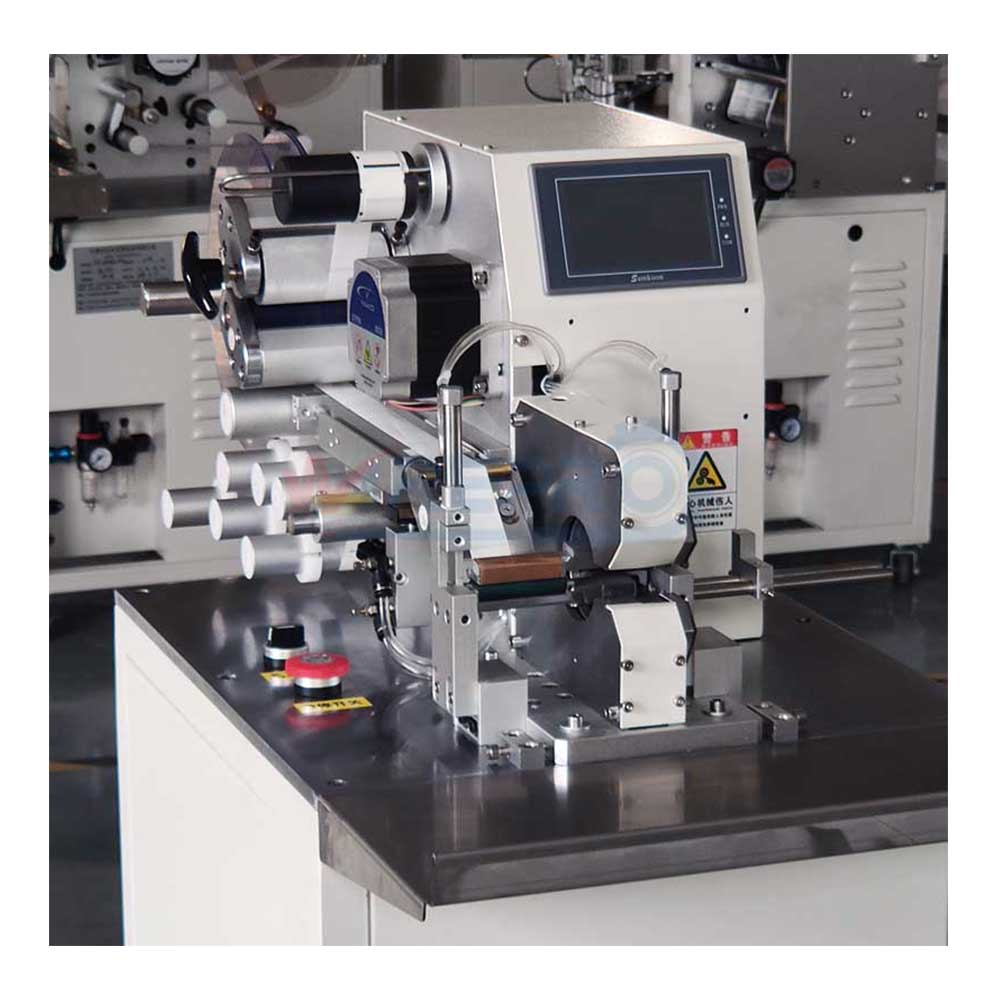

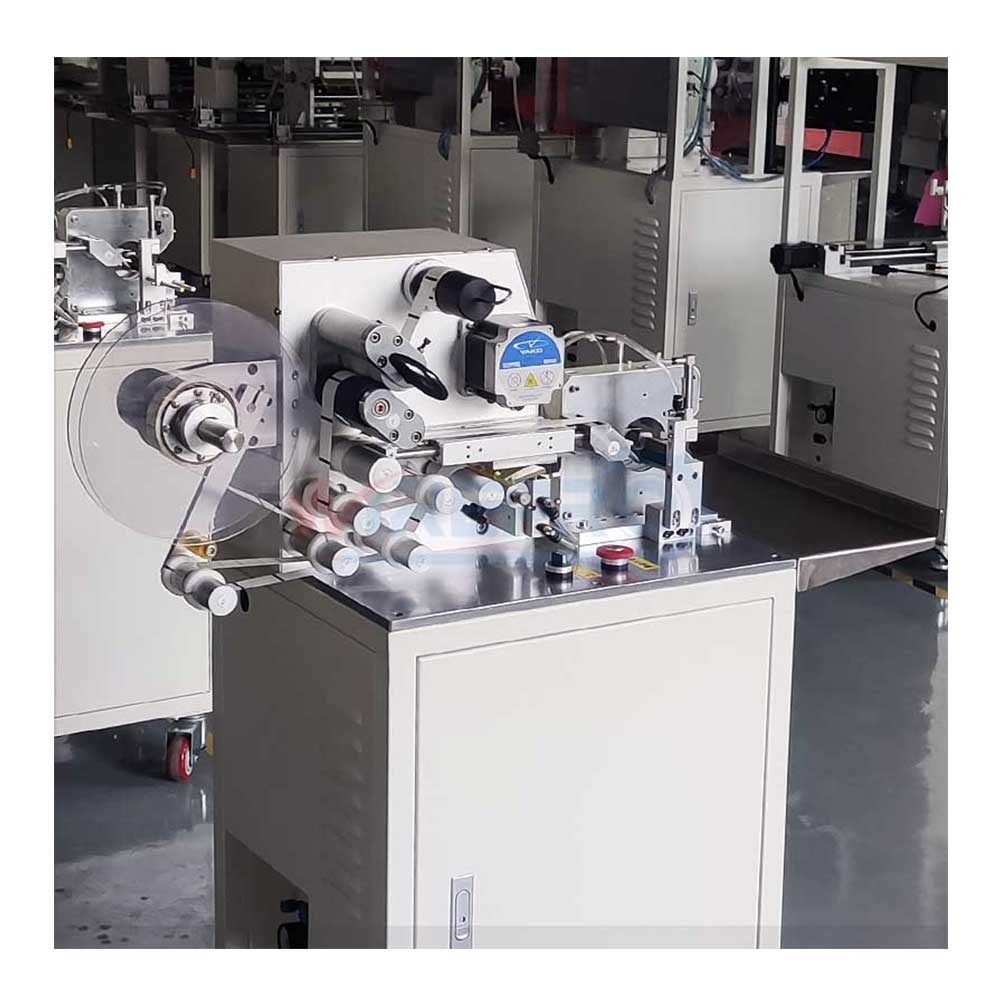

Semi-Automatic Cable Wrap-Around Labeling Machine
This machine is an advanced semi-automatic solution for applying wrap-around labels to cables, wires, and other round materials. Designed for versatility and precision, it streamlines labeling processes for businesses seeking efficiency and consistent quality.
Key Features:
1. High-Speed and Accurate Labeling: Delivers fast, precise labeling with a clean finish—no wrinkles, bubbles, or misalignment.
2. Compact Design: Space-saving structure for easy relocation, loading, and installation, requiring minimal workspace.
3. Precision Positioning: Powered by a servo motor, achieving a labeling tolerance of just ±0.2mm, ensuring consistent and professional results far superior to manual operation.
4. User-Friendly Adjustments: Easily adjustable settings with clear guidance in the operation manual, making it simple for operators to set up and use.
5. Improved Productivity: Eliminates the inefficiencies of manual labeling, greatly increasing production speed and reducing labor costs.
Model | HL-A20 |
Available Materials | Round shape cable, tube and others |
Available Diameter | 1.6-6mm; 7-15mm |
Available label | Width: 5~40 mm (customized oversize) |
Available label roller | Outer diameter: Max 240mm |
Labeling precision | ± 0.2mm |
Labeling speed | 1000-1500pcs/hour |
Air connection | 0.4-0.6 Mpa |
Power supply | 220V/50Hz; 110V/60Hz |
Power | 250W |
Dimensions | 580*680*1000mm |
Weight | 86kg |
Application

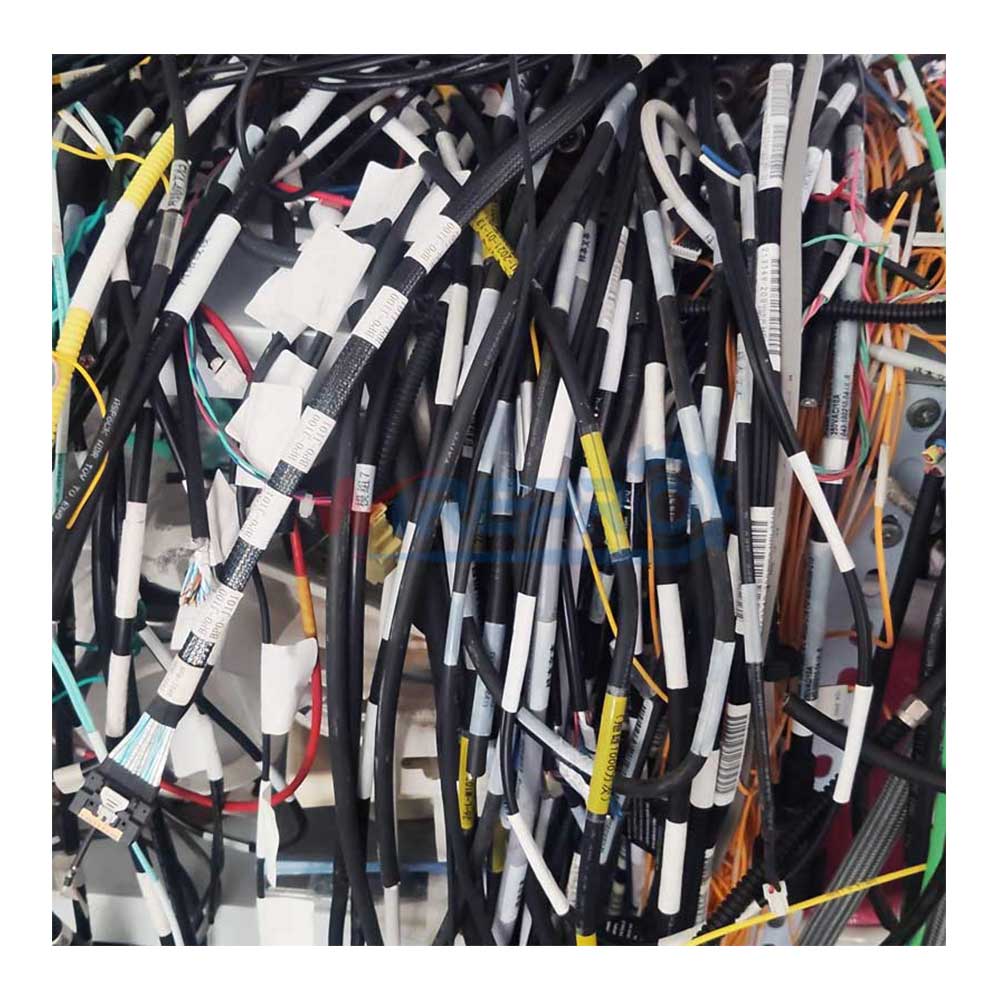

Applicable wires: earphone cable, USB cable, power cord, air pipe, water pipe, etc.;
Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.;
Application examples: headphone cable labeling, power cord labeling, optical fiber cable labeling, cable labeling, tracheal labeling, warning label labeling machine, etc.
The HL-A20 is a semi-automatic circular wrap labeling machine for applying wrap-around labels to cables, wires, and round materials, including earphone cables, USB cables, and power cords.
It supports cable diameters of 1.6-6mm and 7-15mm. Label width: 5-40mm (customizable oversize); label length: 10-100mm (customizable oversize). Label roller OD ≤240mm, ID ≤76mm.
Key features include servo motor precision with ±0.2mm tolerance, high-speed labeling with clean finish (no wrinkles/bubbles), compact space-saving design, and user-friendly adjustments with clear operation manual guidance.
The machine achieves labeling speed of 1000-1500 pieces/hour (depending on product size and operator speed) with labeling precision of ±0.2mm.
The HL-A20 requires 220V/50Hz or 110V/60Hz power (250W) and 0.4-0.6 MPa air connection. Dimensions: 580*680*1000mm, weight: 86kg. It requires dedicated floor space.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
