PI-F16
| Availability: | |
|---|---|
| Quantity: | |

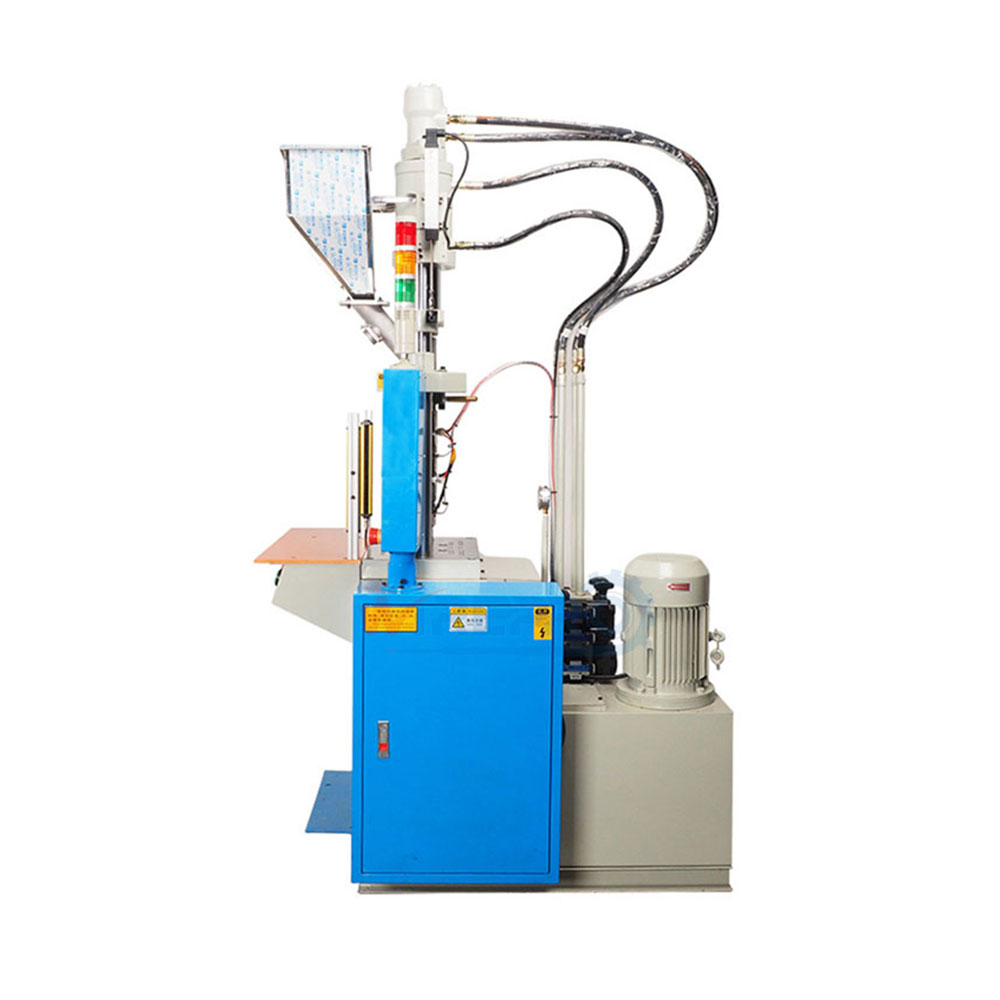

Power Cord Plug Injection Molding Machine
This injection molding machine is specifically designed for manufacturing power plugs, data cables, USB connectors, audio cables, chargers, and other related products. The mold is customizable based on the specific product requirements, and the injection capacity per cycle depends on the product size.
Material Compatibility:
Compatible with a wide range of thermoplastics, including PVC, TPR, TPE, PE, PBT, PC, PS, PP, PU, POM, PMMA, PET, PPO, PPS, ABS, LCP, acrylic, melamine, nylon, polypropylene, polystyrene, and more.
Key Features:
1. Straight Screw Ejection: Ensures stable and precise injection molding.
2. Versatile Settings: Supports adjustable two- or three-phase temperature, injection speed, back pressure, and screw speed for compatibility with various materials.
3. Flexible Mold Design: Features a fixed bottom mold and loose top mold, ideal for insert molding and equipped with an ejector for easy product removal.
4. Safety Mechanism: Low-pressure die closure protects molds and enhances operational safety.
| Parameter | PI-F16 | |
| Injection | Screw Diameter (mm) | φ22/φ26/φ28 |
| Plasticizing Capacity (cm3) | 44/61.5/71.4 | |
| Plasticizing Weight (g) | 41.6/58/67.5 | |
| Max Injection Pressure (Mpa) | 161.6/115.7/99.7 | |
| Injection Rate ( cm³/s) | 31/44/51 | |
| CLAMPING | Clamping Force (KN(tf)) | 147(15) |
| Clamping Stoke (mm) | 185 | |
| Min Mold Thickness (mm) | 25/75 | |
| Max Opening (mm) | 210/260 | |
| Tie Bar Distance (L*W) (mm) | 270 | |
| Max Mold Size (L*W) (mm) | 250*200 | |
| Ejector Distance (mm) | 25 | |
| Ejector Force (KN(tf)) | 12.7(1.3) | |
Application
The PI-F16 is an injection molding machine for manufacturing power plugs, data cables, USB connectors, audio cables, and chargers with customizable molds and compatibility with various thermoplastics.
Screw diameter options: φ22/φ26/φ28mm. Plasticizing capacity: 44/61.5/71.4 cm³. Max injection pressure: 161.6/115.7/99.7 MPa. Injection rate: 31/44/51 cm³/s. Clamping force: 147 KN (15tf).
It is compatible with PVC, TPR, TPE, PE, PBT, PC, PS, PP, PU, POM, PMMA, PET, PPO, PPS, ABS, LCP, acrylic, melamine, nylon, polypropylene, and polystyrene.
Key features include straight screw ejection for stable injection, adjustable temperature/injection speed/back pressure settings, flexible mold design with fixed bottom and loose top mold for insert molding, ejector for easy product removal, and low-pressure die closure for mold protection.
Specific power details are not provided on the page. The machine has clamping force of 147 KN with clamping stroke of 185mm. Please contact Wirepro directly for detailed installation specifications.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
