PI-F55
| Availability: | |
|---|---|
| Quantity: | |

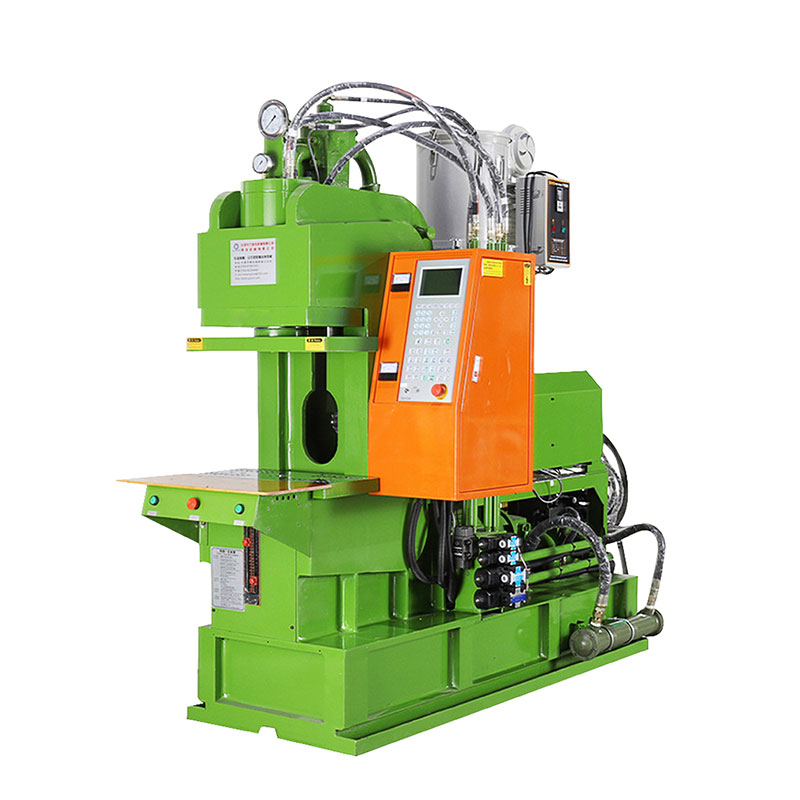

Power Cord Plug Injection Molding Machine
This injection molding machine is designed for producing a wide range of products, including power plugs, data cables, USB connectors, audio cables, chargers, and more. The injection mold can be customized to match the product specifications, with the injection capacity per cycle determined by product size.
Material Compatibility:
Compatible with various thermoplastics, such as PVC, TPR, TPE, PE, PBT, PC, PS, PP, PU, POM, PMMA, PET, PPO, PPS, ABS, LCP, acrylic, melamine, nylon, polypropylene, polystyrene, and others.
Key Features:
1. Straight Screw Ejection System: Ensures accurate and stable injection molding.
2. Customizable Settings: Supports adjustable two- or three-phase temperature, injection speed, back pressure, and screw speed to meet the requirements of different materials.
3. Flexible Mold Structure: Features a fixed bottom mold and loose top mold, ideal for insert molding and equipped with an ejector for easy product removal.
3. Enhanced Safety: Low-pressure die closure system protects the mold and ensures operational safety.
| Model | PI-F55 | |
| INJECTION | Screw Diameter (mm) | φ32/φ36/φ40 |
| Plasticizing Capacity (cm3) | 128.6/162.7/226 | |
| Plasticizing Weight (g) | 121.5/153.8/201 | |
| Max Injection Pressure (Mpa) | 201/158.85/128.6 | |
| Injection Rate ( cm³/s) | 70.7/89.5/110.5 | |
| CLAMPING | Clamping Force (KN(tf)) | 539(55) |
| Clamping Stoke (mm) | 200 | |
| Min Mold Thickness (mm) | 180/280 | |
| Max Opening (mm) | 380/480 | |
| Tie Bar Distance (L*W) (mm) | 470*280 | |
| Max Mold Size (L*W) (mm) | 500*350 | |
| Ejector Distance (mm) | 35 | |
| Ejector Force (KN(tf)) | 172(1.75) |
Application
The PI-F55 is an injection molding machine for manufacturing power plugs, data cables, USB connectors, audio cables, and chargers with customizable molds and compatibility with various thermoplastics.
Screw diameter options: φ32/φ36/φ40mm. Plasticizing capacity: 128.6/162.7/226 cm³. Max injection pressure: 201/158.85/128.6 MPa. Injection rate: 70.7/89.5/110.5 cm³/s. Clamping force: 539 KN (55tf).
It is compatible with PVC, TPR, TPE, PE, PBT, PC, PS, PP, PU, POM, PMMA, PET, PPO, PPS, ABS, LCP, acrylic, melamine, nylon, polypropylene, and polystyrene.
Key features include straight screw ejection for stable injection, adjustable two/three-phase temperature and injection speed, flexible mold design for insert molding, ejector for easy product removal, and low-pressure die closure for mold protection.
Specific power and dimension details are not provided on the page. The machine has clamping force of 539 KN with clamping stroke of 200mm. Please contact Wirepro directly for detailed installation specifications.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
