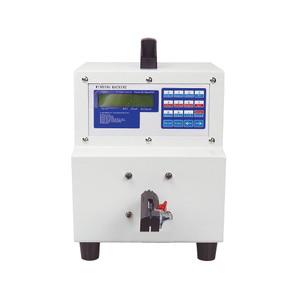

PT-C01 Single-Axis & PT-C05 Five-Axis Wire Stranding Machines
These wire stranding machines are ideal for twisting paired wires used in computer cables, automotive cables, LCD display cables, and more. With the ability to strand 1-5 wire harnesses simultaneously, they ensure consistent output, stable quality, and exceptional operational efficiency.
Key Features:
1. Adjustable Twisting Parameters: Allows customization of twisting speed, duration, and coil count to suit various wire specifications.
2, Data Protection: Features a robust data-saving mechanism, enabling permanent storage of set parameters.
3. Forward & Reverse Settings: Supports forward and reverse twisting, with an automatic wire twist count function for precise operation.
4. Secure Clamping System: Ensures firm grip without damaging wires, providing effortless manual operation and quick release.
5. High Efficiency: Delivers fast starts and high-speed operation with the ability to brake immediately at high speeds. Adjustable slow-start options (0-9 levels) prevent tension issues when handling thin wires.
6. Maintenance-Free Design: Utilizes advanced electronic braking, eliminating mechanical wear components like carbon brushes, belts, and electromagnetic brakes.
7. Low Noise & Torque Stability: Operates with minimal noise while maintaining consistent torque across all speeds.
8. Post-Winding Features: Equipped with production-ready functionalities to streamline the manufacturing process.
| Model | PT-C01 | PT-C05 |
| Twisting length (can custom） | 1m | 5m |
| Maximum wire diameter | 1.2mm | 1.2mm |
| Twisting length | 50-800mm | 50-800mm |
| Main shaft direction | Positive and negative reversible | Positive and negative reversible |
| Number of twisted coils | 0.5 – 9999.9 | 0.5 – 9999.9 |
| Spindle speed | 300-7500 adjustment | 300-7500 adjustment |
| Speed rate | 1500pcs/H | 1500pcs/H |
| Winding process | 20 kinds | 20 kinds |
| Number of storage items | 99types | 99types |
| Power supply | AC220V/AC110V | AC220V/AC110V |
| Power | 60W | 60W |
| Dimension | 36*31*35cm | 36*31*35cm |
| Weight | 10kg | 10kg |
Application
The PT-C01 is a pair-wire twisting machine for computer cables, automotive cables, and LCD display cables with customized bracket extension for longer twisting lengths up to 1m (PT-C05 up to 5m).
PT-C01: twisting length up to 1m (custom). PT-C05: twisting length up to 5m (custom). Max wire diameter: 1.2mm. Spindle speed: 300-7500 adjustment. Production rate: 1500pcs/h. Power: AC220V/AC110V, 60W. Dimensions: 36*31*35cm, weight: 10kg.
Key features include customized bracket extension for longer twisting lengths, forward/reverse twisting with automatic count, maintenance-free electronic braking, adjustable slow-start (0-9 levels) to prevent tension issues, and 20 winding processes with 99 storage items.
Both models require AC220V/AC110V power (60W) and share dimensions of 36*31*35cm, weighing 10kg. They are compact benchtop units requiring moderate workspace.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
